Blue Sea Systems - HD-Series Battery Switch Selector

Introducing the Ultimate HD-Series Battery Switch Selectors for Your Boat

Upgrade your boat's electrical system with our high-performance and reliable HD-Series Battery Switch Selectors. Designed to meet the rigorous requirements of marine applications, these battery switches offer exceptional functionality and safety features.

Distinguishing Features:

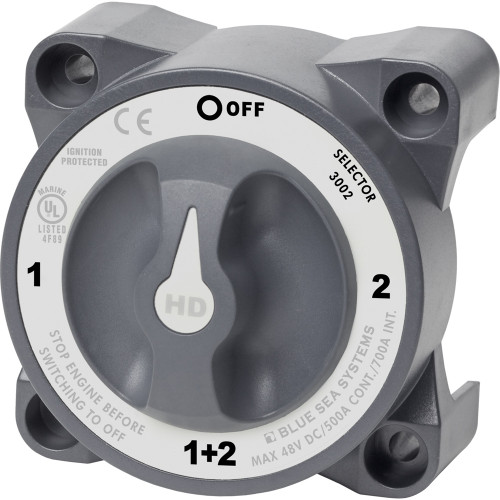

1. 3002 HD-Series Battery Switch Selector: This battery switch is perfect for ensuring seamless power management on your vessel. With a 500 Ampere continuous rating, it delivers the power you need for all your electrical systems. The switch accepts 4/0 battery cables, enabling easy connection and compatibility. It is ignition protected, making it safe for installation aboard gasoline-powered boats. The .870" (22.01mm) stud length can accommodate four or more cable terminals, providing flexibility for your wiring needs. The 1/2" (M12) tin-plated copper studs maximize conductivity and resist corrosion, ensuring long-lasting performance.

2. 3003 HD-Series Battery Switch Selector with Alternator Field Disconnect: Take your boat's electrical system to the next level with this advanced battery switch. Offering the same impressive features as the 3002 model, it goes a step further by incorporating an alternator field disconnect. This innovative feature allows you to isolate your alternator from the battery bank, preventing any feedback or damage when the switch is turned off. With this added functionality, you can safeguard your alternator and enjoy enhanced control over your boat's electrical setup.

Both battery switch models are designed to meet the strict requirements set by the American Boat and Yacht Council (ABYC), ensuring compliance and peace of mind. The switches feature tactile textures that indicate the knob position by feel, allowing for intuitive operation even in low-light conditions. The versatile case design allows for convenient surface or rear panel mounting, offering flexibility during installation. They fit all Perko and Guest low amperage battery switch hole patterns, making them suitable for a wide range of marine setups.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Highlights:

• Choose from two models: 3002 HD-Series Battery Switch Selector and 3003 HD-Series Battery Switch Selector with Alternator Field Disconnect
• 500 Ampere continuous rating for reliable power management
• Accepts 4/0 battery cables for easy and secure connections
• Ignition protected, ensuring safety for gasoline-powered boats
• .870" (22.01mm) stud length accommodates four or more cable terminals
• 1/2" (M12) tin-plated copper studs for maximum conductivity and corrosion resistance
• Meets American Boat and Yacht Council (ABYC) requirements
• Tactile textures indicate knob position by feel
• Case design allows surface or rear panel mounting
• Fits all Perko and Guest low amperage battery switch hole patterns

Upgrade your boat's electrical system with our HD-Series Battery Switch Selectors
