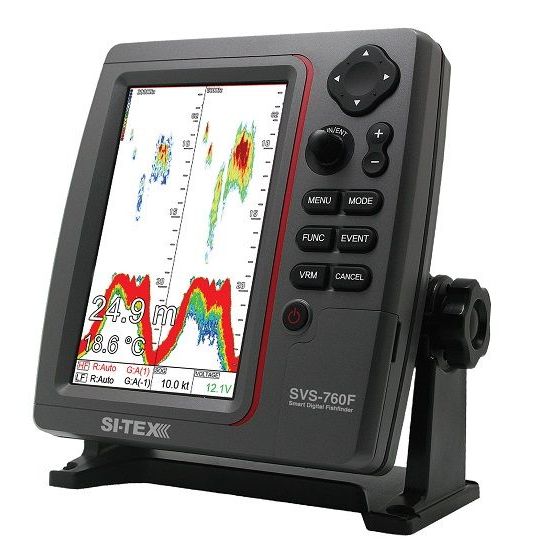

Advanced Marine Fishfinding with the Sitex SVS-760F

The Sitex SVS-760F is a high-performance 7.5-inch color fishfinder designed to enhance marine navigation and fishing experiences. Featuring a powerful 600-watt dual-frequency operation (50/200kHz), this unit provides exceptional depth penetration and target clarity. Its high-resolution vertical display (480x800 pixels) ensures optimal readability of sonar data, while the advanced high-speed CPU delivers real-time fish target detection with minimal lag.

Built for durability and versatility, the SVS-760F is rated IPX7 waterproof, making it a reliable choice for a wide range of marine applications. Equipped with professional-grade features such as Bottom Discrimination, Bottom Lock, Bottom Zoom, and A-Scope, this fishfinder allows users to accurately identify underwater structures and fish schools. Customizable alarms for depth, fish presence, and water temperature provide added convenience, helping anglers and marine professionals maximize efficiency on the water.

High-Resolution Display for Clear Sonar Imaging

The SVS-760F is fitted with a 7.5-inch color TFT LED backlit display, offering a crisp and bright image even under direct sunlight. The vertical 480x800 pixel resolution enhances the readability of sonar returns, ensuring detailed and precise underwater imaging.

Dual-Frequency Operation for Superior Performance

With its dual-frequency capability (50/200kHz), the SVS-760F provides flexibility in different water conditions. The 600-watt RMS output ensures strong and reliable sonar signals, making it an excellent choice for both deep and shallow water fishing applications.

Advanced Sonar Modes and Customization

The unit supports multiple display modes, including Normal (single/dual frequency), Bottom Lock, Bottom Zoom, A-Scope, Shift, and VRM. Users can fine-tune settings such as gain, range, pulse length, and bottom enhancement for a fully customized sonar experience. With four levels of interference and noise rejection, the fishfinder maintains a clean and clear display.

Wide Depth Range and Image Speed Options

Capable of detecting depths from 10 feet to an impressive 4,800 feet, the SVS-760F is suitable for both coastal and offshore fishing. It features eight selectable image speeds, including ultra-slow and stop modes, ensuring optimal sonar feedback in different fishing scenarios.

Rugged Marine-Grade Construction

Designed for harsh marine environments, the SVS-760F meets the IPX7 waterproof rating, allowing for flexible installation on boats exposed to water and weather elements. The unit operates in temperatures ranging from -15°C to +50°C, ensuring reliability in extreme conditions.

Technical Specifications

• Display: 7.5” Color TFT LED Backlight (480x800 pixels)
• Operating Frequency: Dual 50/200kHz
• Output Power: 600 watts RMS
• Depth Range: 10' to 4,800'
• Image Speed: 8 adjustable speeds, including stop mode
• Noise & Interference Rejection: 4 levels each
• Sonar Functions: Gain, Range, Depth with Shift, Pulse Length Selection, White/Black Line, Water Temperature Display, Bottom Enhancement
• Display Modes: Normal, Bottom-Lock, Bottom Zoom, A-Scope, Shift, VRM
• Alarms: Depth, Water Temperature, Fish Detection
• Operating Temperature: -15°C to +50°C
• Waterproof Rating: IPX7
• Input Voltage: 12 - 36V DC
• Power Consumption: 12 watts

Product Dimensions

• Dimensions: 8.2" x 8.4" x 2.5"

Key Highlights

• High-speed CPU for real-time fish detection
• 7.5” high-resolution color display for superior readability
• Dual-frequency operation for deep and shallow water use
• Customizable sonar settings with multiple display modes
• IPX7 waterproof for durability in marine environments
• Adjustable image speeds and interference rejection for precise data display
• Wide temperature operating range for extreme conditions

What’s in the Box

• Display Unit
• Mounting Bracket
• Adjustment Knobs
• Power Cord
• User Manual

The Sitex SVS-760F is the ideal companion for marine professionals and serious anglers looking for precision, durability, and high-quality sonar performance.
