Intelligent Battery Management for Multi-Engine Marine Systems

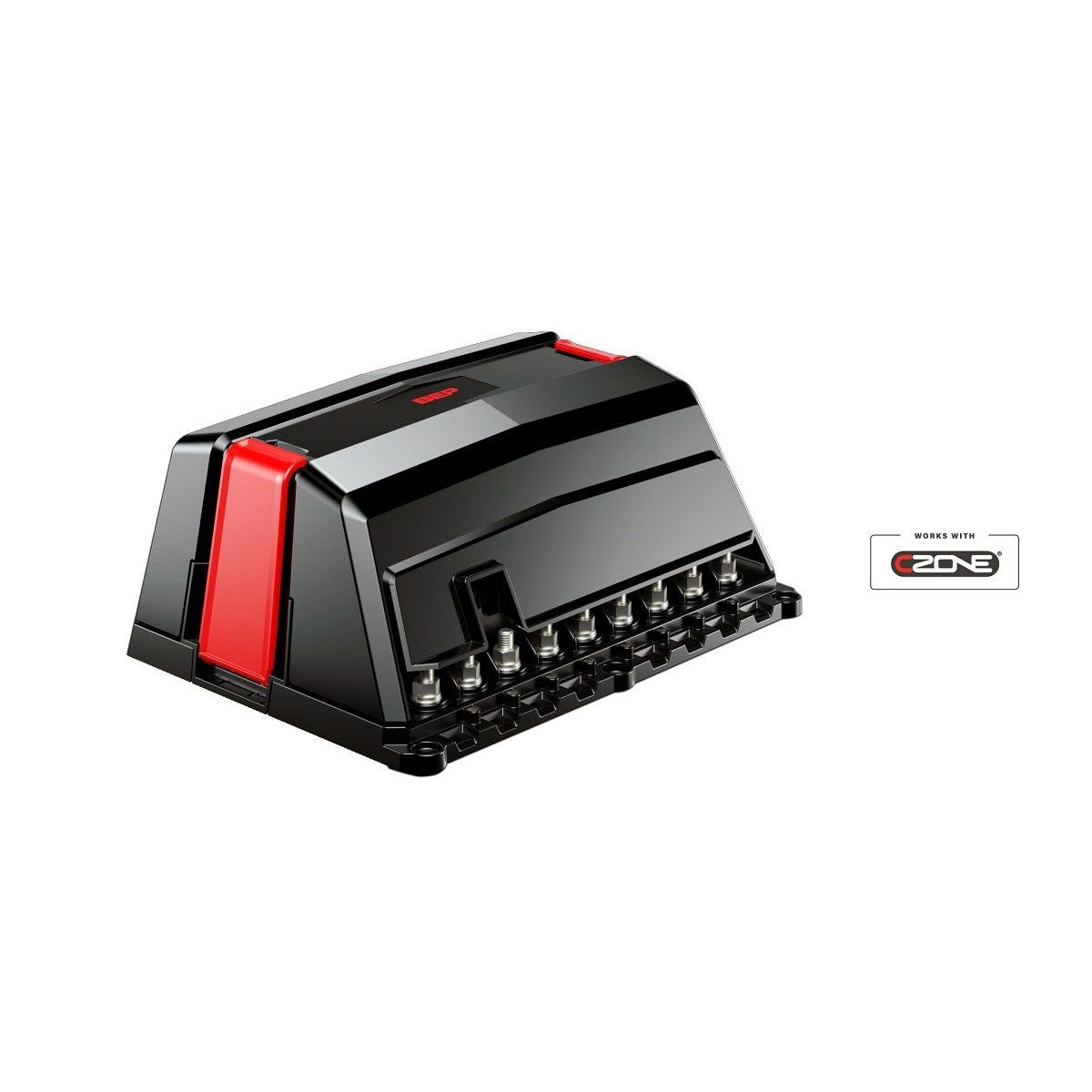

BEP Marine’s Smart Battery Hub (SBH) is an innovative, first-of-its-kind intelligent battery management system designed for vessels equipped with two or more outboard, sterndrive, or inboard engines. The SBH simplifies power control with advanced remote operation, automatic dual-direction Voltage Sensitive Switching (VSS), and emergency parallel functionality—all housed within a robust, ignition-protected IPX7-rated enclosure.

Designed for seamless integration, the SBH transmits critical battery data, including individual voltages and house bank state of charge, over NMEA2000 for easy monitoring through multi-function displays. With configurable VSS voltage thresholds, assignable switch inputs, and additional sensor inputs, this system provides complete flexibility for optimized marine power management. Remote switching is facilitated via NMEA2000 or wired switches, while manual override ensures safety and reliability in all conditions.

Advanced Technical Specifications

• Power Consumption (Max): 92mA
• Power Consumption (Sleep Mode): <3.5mA
• NMEA2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
• Operating Temperature Range: -15°C to +55°C (-5°F to +131°F)
• Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
• Ingress Protection Rating: IPX7 (water-resistant and ignition-protected)
• Nominal Voltage: 12V or 24V (power harvested from all batteries)
• Continuous Current Rating: 300A
• Intermittent Current Rating: 700A
• Cranking Current Rating: 1450A

Comprehensive Monitoring & Connectivity

• Battery Monitoring: Voltage monitoring for individual batteries, house current draw, and state of charge
• NMEA2000 PGN Output: Fluid level, pressure, temperature, battery voltage, and state of charge
• Additional Inputs: 3 x Master switch inputs, 2 x Analog inputs, 1 x Battery temperature sensor

Optimized Product Dimensions

• Width: 14.310 inches
• Height: 10.841 inches
• Depth: 6.280 inches

Key Features & Benefits

• Remotely operated magnetic latching switches for enhanced convenience
• Emergency parallel switching capability for critical backup power needs
• Configurable dual-direction Voltage Sensitive Switching (VSS)
• House battery state of charge monitoring for precise power management

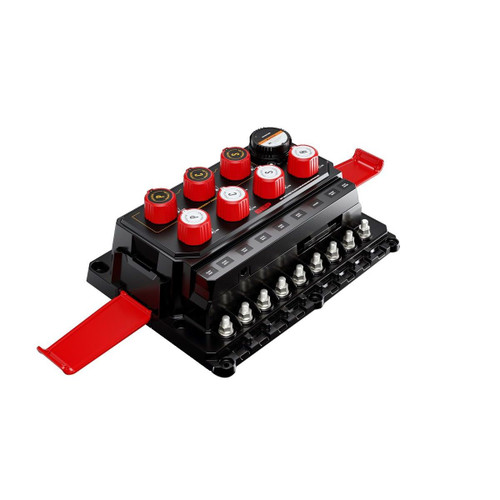

• Manual override functionality for all battery switches, ensuring operational safety
• Parallel two units together to support installations with 4, 5, or even 6 engines

Available Variations

• 80-716-0031-00 – Capacity for Triple Engine Systems
• 80-716-0030-00 – Capacity for Twin Engine Systems

The BEP Marine Smart Battery Hub is a cutting-edge solution for marine power distribution and monitoring, providing efficiency, safety, and ease of use for multi-engine vessels.
