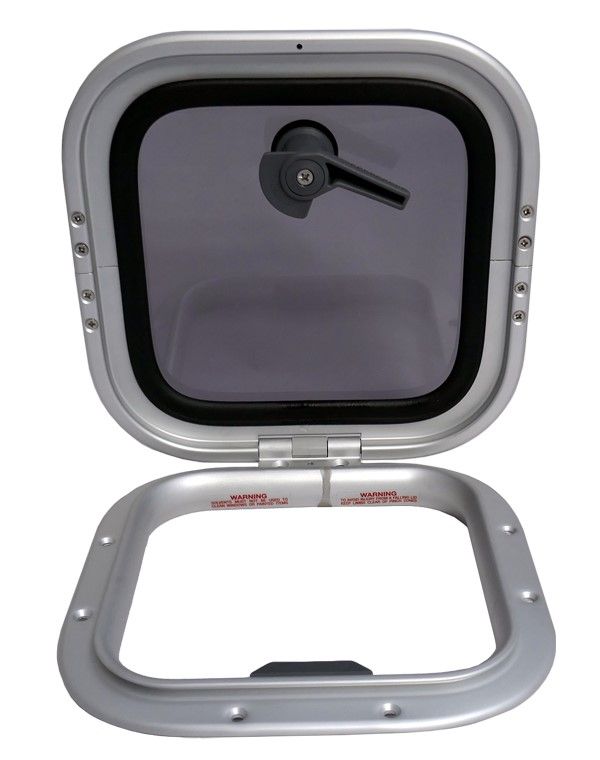

Sleek and Functional Hatch for Power and Sail Boats

The Lewmar Size 00 Low Profile Hatch Flange Base offers a combination of modern styling and practical design, making it an excellent choice for both powerboats and sailboats. This hatch is ideal for ventilation purposes on any deck location of sailing vessels, while larger variants can serve as foredeck hatches for small to mid-sized yachts. Its low-profile construction enhances the vessel’s aesthetics while maintaining durability and functionality.

Reliable Performance in Marine Environments

Designed to withstand the demands of marine environments, this hatch features a self-supporting system, allowing for easy opening and closing without additional hardware. It is suitable for installation in CE Area 2, including decks, coach roofs, cockpits, and transoms. This flexibility ensures that it meets various boating needs, providing both security and ventilation.

Mounting and Installation Guidance

For optimal performance, the hatch should be installed on a flat surface with a maximum tolerance of +/- 1mm. When fastening the hinge section, use M6 / 1/4" fasteners, while the lower frame should be secured using 5mm CSK screw No.10 UNC 2 BA. Proper installation guarantees a secure and weather-resistant fit, crucial for marine applications.

Technical Specifications

• Support System: Self-supporting
• Lower Frame Thickness: 9/16 inch
• Acrylic Window Color: Smoke Grey
• Hatch Weight: 3.5 lbs
• Acrylic Window Thickness: 5/16 inch

Product Dimensions

• Overall Length (X): 11 1/16 inches
• Overall Width (Y): 11 1/16 inches
• Overall Height (Z): 1 inch
• Corner Radii (R): 2 7/8 inches
• Cut-Out Length (X1): 8 5/16 inches
• Cut-Out Width (Y1): 8 5/16 inches
• Cut-Out Radii (R1): 1 11/16 inches

Key Features

• Low-profile design enhances the sleek appearance of your vessel
• Self-supporting system for easy operation
• Smoke grey acrylic window for improved light control and privacy
• Versatile installation suitable for decks, coach roofs, cockpits, and transoms
• Durable construction designed for marine use

The Lewmar Size 00 Low Profile Hatch Flange Base is a dependable and stylish addition to any boat, providing both ventilation and secure access with a streamlined, modern design.
