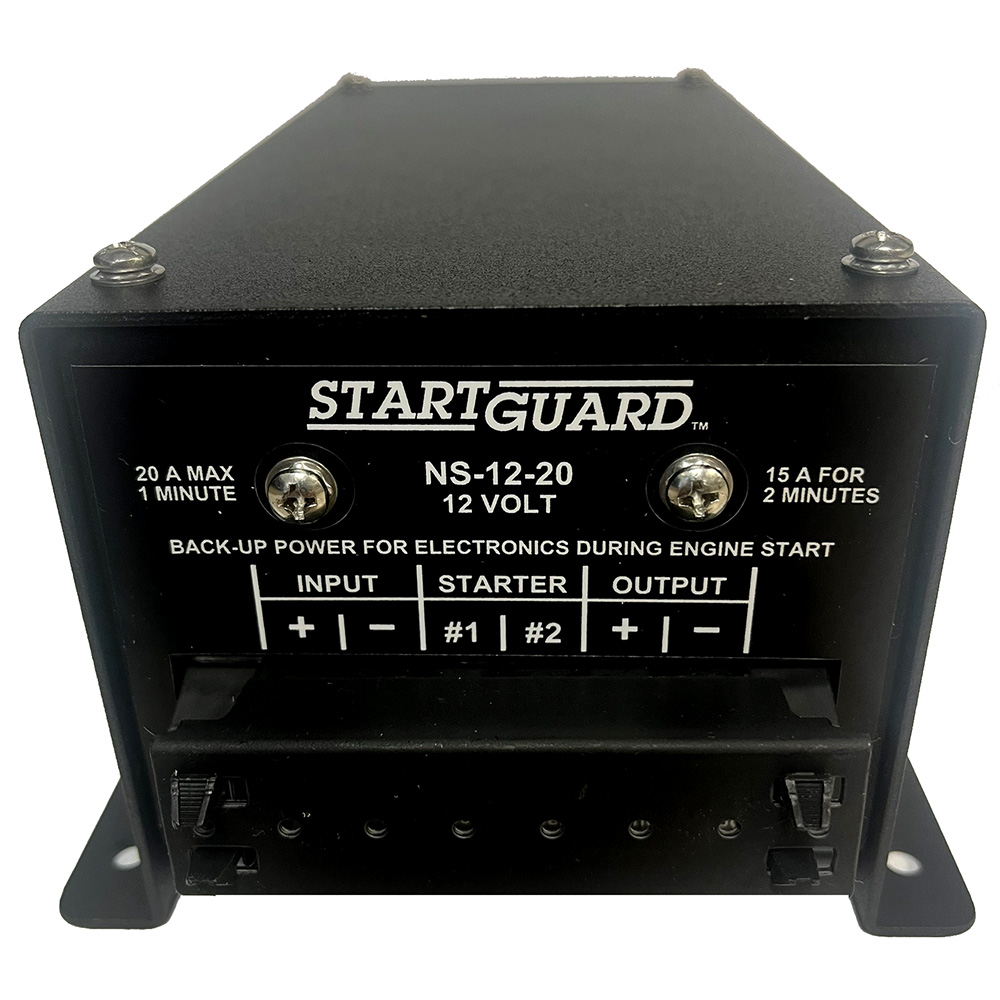

Newmar Power - StartGuard Back-Up Power

Ensure Uninterrupted Electronics Operation During Engine Start

The Newmar NS-12-20 StartGuard is the ultimate solution for maintaining uninterrupted power to sensitive electronics during engine startup. Designed specifically for marine environments, this device provides supplemental power to micro-processor-driven electronics, preventing the loss of programmed memory and ensuring continuous operation.

General Description

When starting your engine, the abrupt drop in DC system voltage can cause disruptions in sensitive electronic equipment. The Newmar NS-12-20 StartGuard addresses this issue by supplying backup power during engine cranking. Ideal for use in vehicles or vessels, this device guarantees that your electronics remain operational and unaffected by voltage drops.

Key Features

• Voltage Stabilization: Ensures stable power supply to sensitive electronics during engine start.
• Backup Power: Provides supplemental power to prevent electronics from "dumping" programmed memory.
• Easy Mounting: Can be conveniently mounted under the dash or console using the provided screws or #10 bolts.
• Reliable Performance: Designed for marine environments with a sealed, rechargeable battery.

Technical Specifications

• Input Voltage: 13.8-14.8 VDC nominal, 15.5 VDC max
• Relay Activation Input Voltage: 7-15 VDC
• Output: 20 amps max
• Battery: 12 VDC, 4.0 Amp/Hour, sealed rechargeable, 3-5 year typical life
• Backup Capacity (Fully Charged): 20 amps for 1 minute / 18 amps for 2 minutes
• Operating Temperature Range: 0-40 degrees Celsius
• Winter Storage Temperature Range: -20 to +40 degrees Celsius
• Dimensions: 8.25" x 4.9" x 3.5"
• Weight: 5.5 lbs

Product Dimensions

• Size: 8.25" x 4.9" x 3.5"
• Weight: 5.5 lbs

Highlights

• Consistent Power Supply: Prevents voltage drops from affecting sensitive electronic equipment.
• Durable Design: Built to withstand marine environments with a robust, sealed battery.
• User-Friendly Installation: Simple mounting and wiring make setup quick and easy.

Application and Usage

The Newmar NS-12-20 StartGuard is perfect for any marine vessel or vehicle that relies on micro-processor-driven electronics. It ensures that your critical equipment remains operational during engine start, providing peace of mind and reliable performance.
