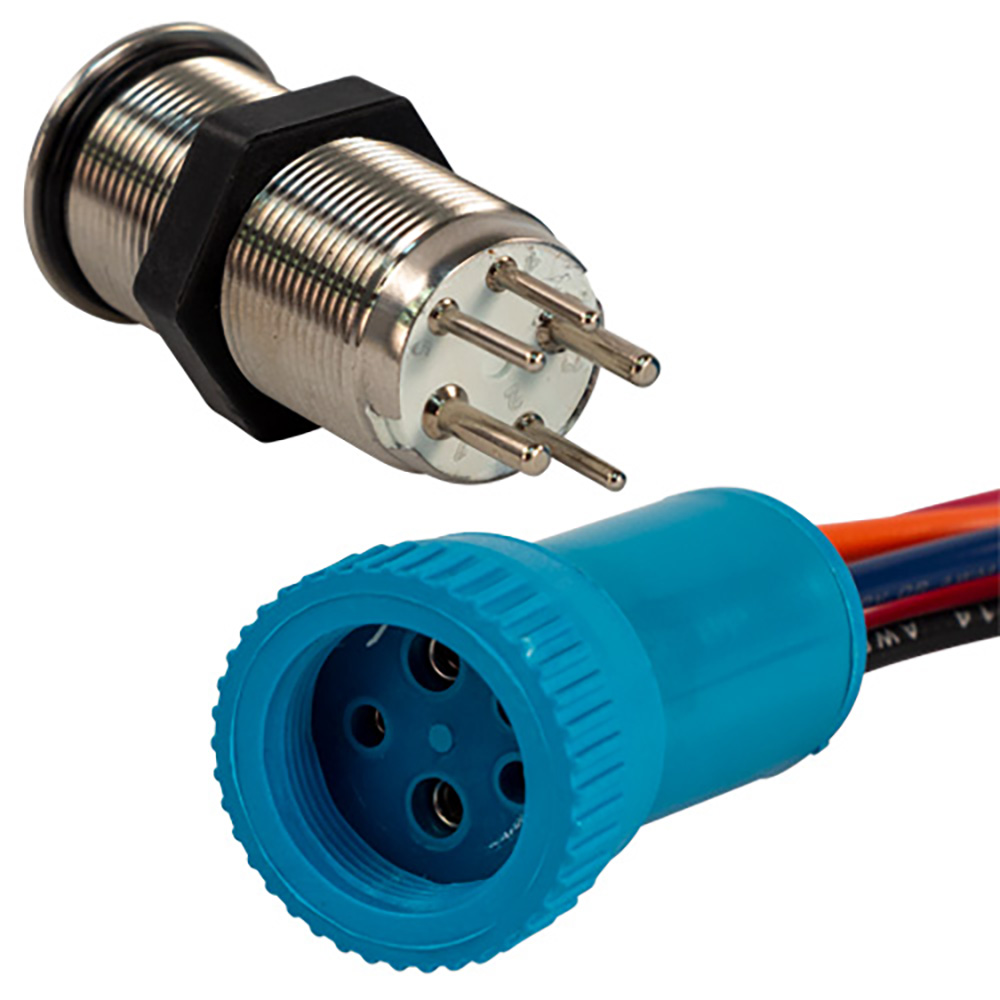

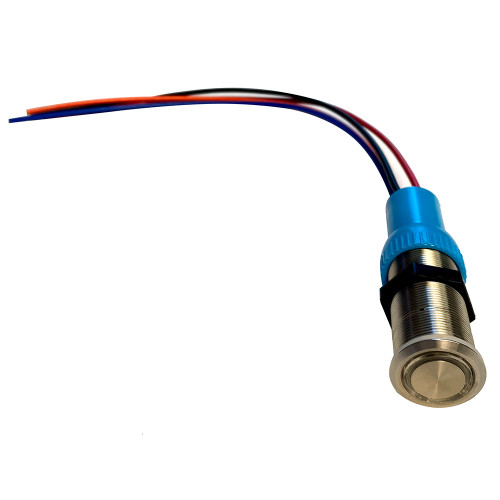

Bluewater - Push Button Switch - Off/On/On Contact - Blue/Green/Red LED - 1' Lead

Stylish and Functional Marine Control

Introducing the Bluewater 22mm Push Button Switch, designed to bring modern flair and reliable functionality to your marine dashboard. This stainless-steel plated metal button features an Off/On/On standard contact, making it a versatile and essential addition to any marine vessel. With its robust construction and advanced features, this switch ensures that your marine controls are both visually appealing and highly efficient.

Built for Marine Durability and Performance

The Bluewater Push Button Switch is engineered to withstand the harsh marine environment, boasting an IP69K waterproof rating for maximum protection against water and dust. Its rugged stainless-steel construction and included gasket provide additional durability, making it suitable for even the toughest conditions. At night, the switch is backlit with a blue LED light for clear visibility, which changes to green or red when activated, providing immediate status indication.

Key Features

• Waterproof Rating: IP69K for maximum protection against water and dust.
• LED Indicators: Blue for off state, green for first on, and red for second on.
• Durable Construction: High-quality stainless steel ensures longevity.
• Easy Installation: Simple setup with color-coded contacts for safety and convenience.
• Standard Contact: Off/On/On functionality for versatile control.

Technical Specifications

• Function: Off-On-On (standard contact)
• LED Colors: Off: Blue; 1st On: Green; 2nd On: Red
• Rear Mark Page: Blue dot
• Switch Rating: 15A / 12-24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Compact and Efficient Design

Product Dimensions

• Size: 22mm diameter
• Lead Length: 1 ft

Designed for Marine Excellence

Premium Finishes

• Stainless Steel Body: Provides a sleek, modern look while ensuring durability and resistance to corrosion.
• IP69K Rating: Ensures the switch remains waterproof and dustproof, suitable for all marine environments.

Easy and Secure Installation

Installing the Bluewater Push Button Switch is straightforward:

1. Drill a 22mm Hole: Suitable for materials up to 6mm thick.
2. Connect Contacts: Attach the 3 color-coded contacts for the button and the 2 contacts for the LED.

Customizable Options for Different Needs

Variations List

• 22mm Model: Standard size, perfect for most marine applications.
• 19mm Model: Slightly smaller option for more compact installations.

Unmatched Reliability with Bluewater

Upgrade your marine dashboard with the Bluewater 22mm Push Button Switch. Designed for both functionality and style, this switch offers unparalleled performance and durability in any marine environment. Whether you’re navigating through rough waters or docked at the marina, this switch ensures your boat’s controls are always clear and easy to use. Illuminate your adventures with the trusted reliability of Bluewater.
