Designed for Performance and Durability

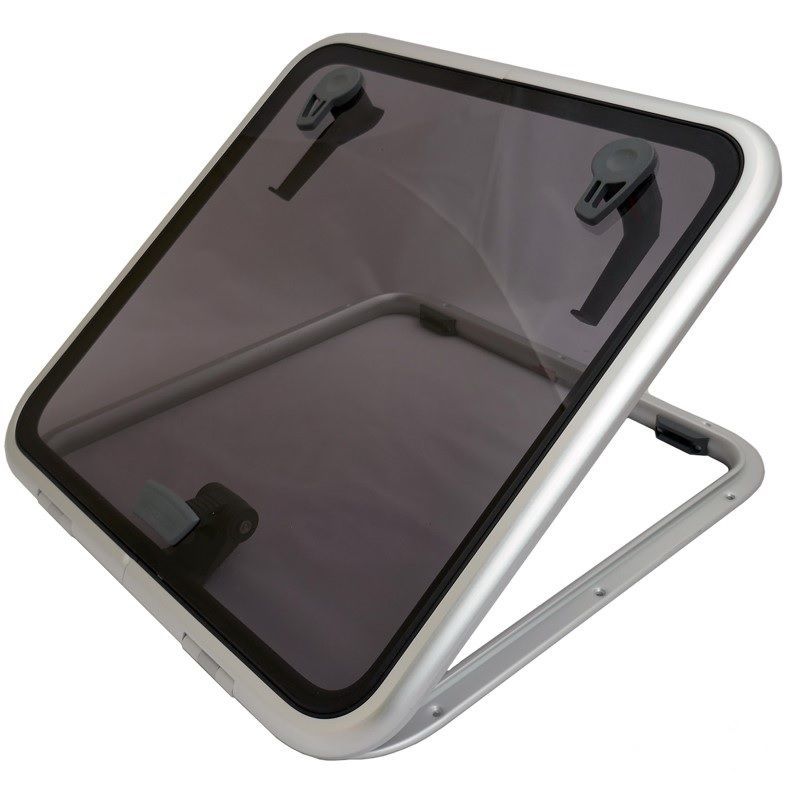

The Lewmar Size 60 Low Profile Hatch Flange Base is engineered for marine enthusiasts seeking reliability and sleek design. Featuring a self-supporting structure, this hatch provides excellent ventilation and natural light while maintaining robust durability. The smoke grey acrylic window enhances aesthetics and reduces glare, ensuring optimal visibility in marine environments. Its low-profile design minimizes obstructions on deck, making it a practical and stylish addition to any vessel.

Technical Specifications

• Support System: Self-supporting
• Acrylic Window Thickness: 5/16 inch
• Lower Frame Thickness: 9/16 inch
• Hatch Weight: 14.1 lbs
• Acrylic Colour: Smoke Grey

Product Dimensions

• Overall Length (X): 22 11/16 inches
• Overall Width (Y): 22 11/16 inches
• Overall Height (Z): 1 inch
• Corner Radii (R): 2 7/8 inches
• Cut-Out Length (X1): 19 15/16 inches
• Cut-Out Width (Y1): 19 15/16 inches
• Cut-Out Radii (R1): 1 11/16 inches

Mounting Guidelines

This hatch is designed for installation on a flat surface with a maximum tolerance of +/- 1mm. For secure fastening:

• Hinge Section Fastening Size: M6 (1/4")
• Lower Frame Fastening Size: 5mm CSK screw No.10 UNC 2 BA

Highlights

• Sleek, low-profile design for seamless deck integration
• Durable smoke grey acrylic window for reduced glare and enhanced aesthetics
• Self-supporting structure for easy operation and secure positioning
• Lightweight yet sturdy construction, weighing just 14.1 lbs
• Designed for easy installation with precise cut-out dimensions

Perfect for marine applications, the Lewmar Size 60 Low Profile Hatch Flange Base combines durability, style, and functionality, making it an excellent choice for boat owners looking for a high-quality deck hatch solution.
