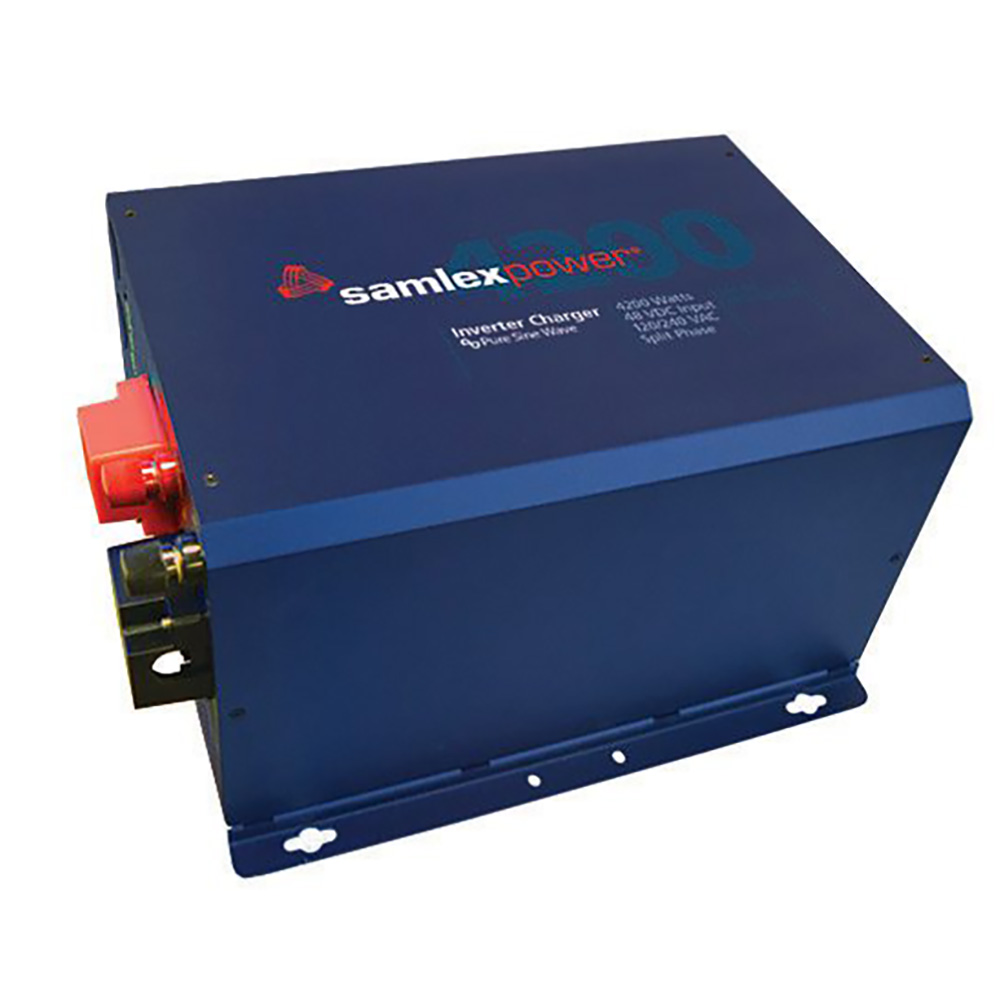

Samlex - Split Phase Inverter/Charger - 4200W, 120/240VAC, 60A

Revolutionize Your Marine Power: Samlex EVO-4248SP Split Phase Inverter/Charger

Introducing the Samlex EVO-4248SP 4200W 120/240 VAC Split Phase Inverter/Charger with 60 AMP – a groundbreaking all-in-one device that seamlessly integrates a split phase pure sine wave inverter, an adaptive battery charger, and a transfer relay. Designed for the demanding needs of marine environments, the EVO Series offers reliable AC power wherever needed. With the ability to connect to a standard electrical household panel, this inverter/charger is ideal for powering fully equipped off-grid cabins, remote mobile construction sites, or serving as an emergency backup system onboard.

Advanced Integration for Comprehensive Power Management

• 120 / 240 VAC Split Phase output for versatile power solutions
• Programmable AC input for grid or generator use, with seamless switching
• Direct connection to a 48V MPPT solar charge controller for integrated solar charging
• 60 Amp, 4-stage Battery Charger with programmable settings for Lead Acid or Lithium-ion batteries
• 40 Amp Transfer Relay with zero transfer time for uninterrupted power supply

Unmatched Performance and Protection

• 3X surge capacity for high-surge loads, with power overload allowances for heavy-duty use
• Operates at 165 million instructions per second for fast load response times
• Comprehensive protection monitoring, scanning up to 10,000 times per second to prevent damage
• Temperature-controlled cooling fans for efficient operation and reduced energy consumption

Technical Specifications

• Input Voltage: 48 VDC
• Output Voltage: 120 / 240 VAC Split Phase
• Continuous Power: 4200 Watts
• Peak Surge Power: 12600 Watts
• Optional Remote Control: EVO-RC-PLUS for enhanced programming and monitoring
• Dimensions: 12.8 x 16.3 x 8.35 inches (324 x 415 x 212 mm)
• Weight: 64 lbs (29 kg)
• Safety and Compliance: CSA Listed, EMI/EMC Compliant with FCC Part 15(B), Class A

Applications Beyond the Horizon

• Perfect for alternative energy, off-grid living, cabins, and remote locations
• Reliable back-up and emergency power source for marine applications
