Intelligent Direct Current Control for Marine Applications

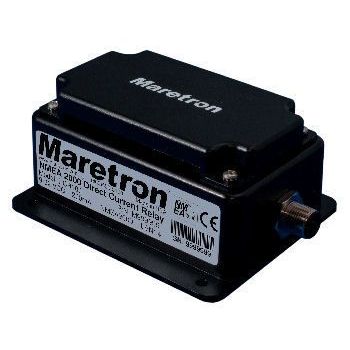

The Maretron DCR100-01 Direct Current Relay Module is a versatile and intelligent solution for managing DC loads aboard marine vessels. Designed to integrate seamlessly with an NMEA 2000® network, this module allows remote or onboard activation of its six independent relays through Maretron’s N2KView® software. Whether controlling lights, pumps, motors, or external AC circuits via additional relays, the DCR100 ensures reliable performance while providing real-time current monitoring for enhanced safety and diagnostics.

Advanced Relay Switching and Monitoring

Equipped with six high-capacity relays, the DCR100-01 offers precise control over various DC loads. Each relay supports up to 10 amps, making it ideal for handling both resistive and inductive loads. The device also features automatic overcurrent and thermal shutdown protections, safeguarding critical onboard electrical systems from potential damage due to excessive power draw.

Technical Specifications

• Network Compatibility: NMEA 2000® integration for seamless vessel-wide control
• Relay Capacity: Six independent relays, each supporting up to 10 amps
• Current Monitoring: Individual relay current measurement for diagnosing issues like burnt-out bulbs or excessive power draw
• Overcurrent Protection: Automatic shutdown at approximately 12 amps
• Thermal Protection: Built-in temperature shutdown feature to prevent overheating

Highlights

• Six relays for onboard and remote switching of DC loads
• Supports both resistive (lights) and inductive (pumps, motors) loads
• Real-time electrical current monitoring per relay for system diagnostics
• Overcurrent and thermal shutdown for enhanced safety
• NMEA 2000® connectivity for seamless integration with vessel control systems

The Maretron DCR100-01 is an essential component for modern marine electrical management, providing reliability, safety, and intelligent monitoring capabilities for a wide range of onboard applications.
