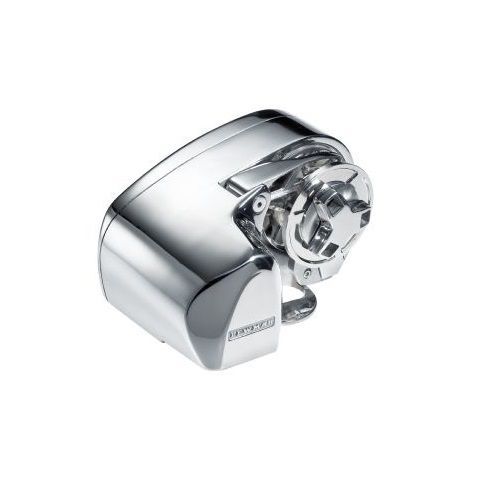

Reliable and Powerful Lewmar Pro Series 700H Anchor Windlass

Designed for seamless anchoring, the Lewmar Pro Series 700H Anchor Windlass offers reliable performance with its powerful motor and robust stainless steel construction. Ideal for boats ranging from 6m to 11.5m (20ft to 38ft), this windlass provides fast line speed and a user-friendly installation process. Its convenient above-deck mounting and push-button operation make anchoring easier than ever, while the manual emergency recovery system ensures you’re always prepared. Built from 100% 316 stainless steel, this windlass delivers superior corrosion resistance, making it a trusted choice for marine environments.

Technical Specifications

• Maximum Pulling Power: 320 kg (700 lb)
• Material: 100% 316 stainless steel, including control arm and stripper
• Motor Type: Powerful electric motor for rapid line speed
• Installation: Above-deck for easy access and maintenance
• Recovery System: Manual emergency recovery using a standard 1/2" socket wrench
• Warranty: 5-year limited warranty
• Optional Add-Ons: Free Fall conversion kits available

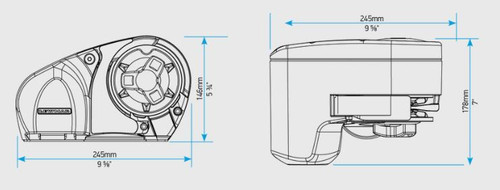

Product Dimensions

• Height: 5 3/4"
• Depth: 9 5/8"
• Width: 7"

Supported Chains and Rope

• Chains: 6mm DIN 766 / 7mm DIN 766 / 1/4" ISO G4 / 1/4" BBB
• Rope: 1/2" 3-strand and 8-plait

Input Voltage

• Operating Voltage: 12V

Highlights

• Fast and efficient motor for reliable anchoring
• Built with high-quality marine-grade stainless steel for durability
• DIY-ready with easy above-deck installation
• Push-button control for effortless operation
• Manual emergency recovery system for added security
• Compatible with a range of chain sizes and rope types
• Backed by a 5-year warranty for peace of mind

What's in the Box

• Lewmar Pro Series 700H Windlass
• Base gasket
• Fast mounting studs
• Installation wrench
• Circuit breaker
• Dual-direction solenoid
• Rocker switch

This windlass is a trusted solution for professional and recreational boaters seeking durability, efficiency, and reliability in their anchoring system.
