Designed for Precision and Durability

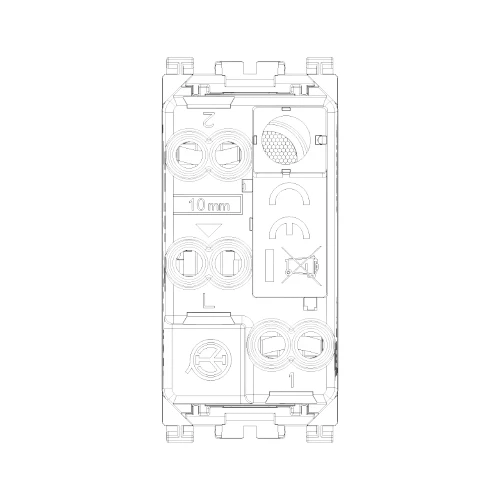

The Vimar ARKÉ series 1P 10AX two-way switch offers a seamless combination of functionality, durability, and style, making it ideal for marine environments. Designed to withstand rigorous use, this switch features a modular design and is crafted from high-quality thermoplastic material. With a maximum capacity of 100W for self-ballasted lamps and compliance with IEC 60669-1:2017 standards, this switch ensures reliable performance and safety in demanding conditions.

Technical Specifications

• Wiring System: Two-way switch for versatile control.
• Method of Operation: Rocker/button for intuitive use.
• Nominal Voltage: 250 V~.
• Rated Current: 10 A, with support for fluorescent lamp switching currents.
• Mounting Method: Flush-mounted with snap-in fastening for easy installation.
• Material: Halogen-free thermoplastic with a matte, untreated finish.
• Illumination Option: LED lighting for enhanced control and orientation.
• Ingress Protection: IP40, suitable for protected environments.

Product Dimensions

• Device Width: 22.30 mm
• Device Height: 49.00 mm
• Device Depth: 38.30 mm
• Built-in Depth: 26.90 mm

Finishes

Available in a sleek matte finish, the switch is offered in three stylish colors: grey, metal, and white, ensuring compatibility with various interior aesthetics.

Highlights

• Modular, flush-mounted design for efficient installation.
• Screwless terminals for faster and easier wiring (optional variants with screws).
• Replaceable button for added flexibility.
• Optional illumination for control and orientation in low-light environments.
• Durable and halogen-free materials for improved safety and longevity.

Variations for Customization

• VM19004.FX: Grey, 1 module, screwless installation.
• VM19004: Grey, 1 module, screws installation.
• VM19004.FX.2: Grey, 2 modules, screwless installation.
• VM19004.2: Grey, 2 modules, screws installation.
• VM19004.FX.M: Metal, 1 module, screwless installation.
• VM19004.M: Metal, 1 module, screws installation.
• VM19004.FX.2.M: Metal, 2 modules, screwless installation.
• VM19004.2.M: Metal, 2 modules, screws installation.
• VM19004.FX.B: White, 1 module, screwless installation.
• VM19004.B: White, 1 module, screws installation.
• VM19004.FX.2.B: White, 2 modules, screwless installation.
• VM19004.2.B: White, 2 modules, screws installation.

Explore the Vimar ARKÉ series for dependable, stylish switching solutions tailored to marine and other specialized environments.
