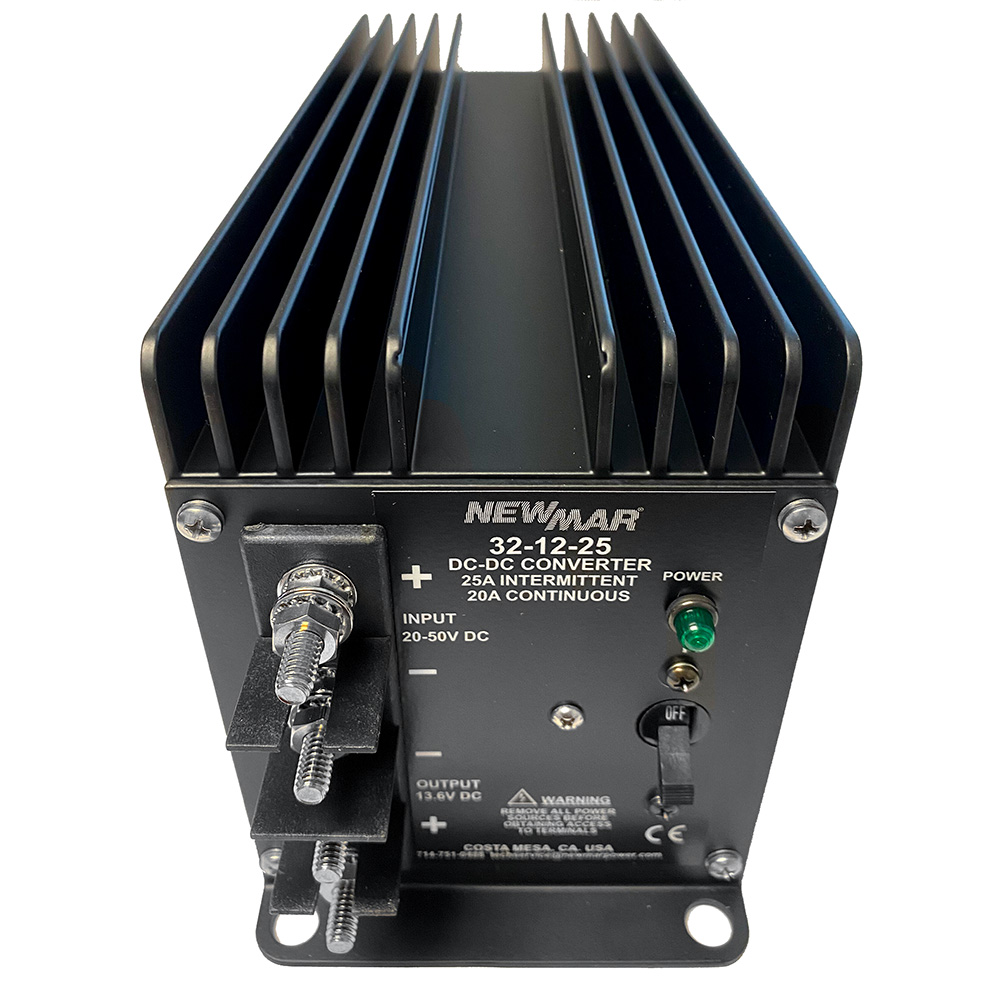

Newmar Power - 32-12-25 DC Converter

Unmatched Power Stability for Marine Electronics

The Newmar 32-12-25 DC Converter is engineered to convert 20-50 VDC input to a stable 12 VDC output, providing a reliable power source for your marine communication and navigation equipment. Designed to withstand the harshest marine environments, this converter ensures your electronics operate smoothly and efficiently.

The Newmar 32-12-25 DC Converter offers excellent voltage regulation, maintaining output within 1% under all conditions. Its rugged construction features an anodized aluminum case and heavy-duty shock mounts, ensuring durability in hostile marine environments. The unit is equipped with numerous protection circuits, including current limiting, automatic thermal shutdown, and reverse polarity protection, making it a reliable choice for marine applications.

Key Features

• Superior Voltage Regulation: Maintains output voltage within 1% under all conditions.
• Robust Construction: Anodized aluminum case and polyurethane conformal coating protect against corrosion.
• Comprehensive Protection: Includes current limiting, thermal shutdown, short circuit proofing, reverse polarity protection, and overvoltage protection.
• Efficient Heat Dissipation: Large heat sink fins maximize air contact, ensuring cool operation and extending component life.
• CE Mark Certified: Meets international safety and performance standards.

Technical Specifications

• Input Voltage: 20-50 VDC
• Output Voltage: 13.6 VDC (internally adjustable 12.6 - 14.5)
• Output Amps (Intermittent): 25 A
• Output Amps (Continuous): 20 A
• Case Size (H x W x D): 6.0 x 4.7 x 14.0 inches (15.2 x 11.9 x 35.6 cm)
• Weight: 7.5 lbs. (3.4 kg)
• Ripple: 150 mV P-P maximum
• Regulation: 1% Line/Load
• Switching Frequency: 40 kHz
• Efficiency: 85% Typical
• Isolation: Output/Chassis; Input/Chassis: 250 VDC

Duty Cycle Ratings

• Intermittent: 20 minutes max on time, 20% duty. Current limit set at approx. 105% of intermittent rating.
• Continuous: 24 hours, 100% duty.

Operating Temperature

• Standard Operation: 0-50 degrees C, derate linearly from 100% @ 40 degrees C to 50% @ 50 degrees C.
• Thermal Shutdown: 70 degrees C case temperature.

Mechanical Specifications

• Construction: Powder-coated aluminum heat sink case.
• Mounting: Heavy-duty mounting flange.
• PCB: Conformal coated for protection.

Options

• Battery Charger Operation: Contact the factory for parallel redundant operation or derating to continuous duty rating.
• Extreme Vibration Mounting Kit: Available to protect against extreme shock and vibration. Specify KIT L for units weighing 2–15 lbs. and KIT H for units weighing 16–70 lbs.

Extreme Vibration Mounting Kit

The Extreme Vibration Mounting Kit protects NEWMAR power converters from the extreme stresses of shock and vibration when mounted on high-vibration vehicles. This kit replaces the standard vibration kit provided with the unit and fits into the unit’s mounting flange, acting as a ‘super shock absorber’ for electronics in high-vibration applications.
