Effortless and Reliable Bilge Water Management

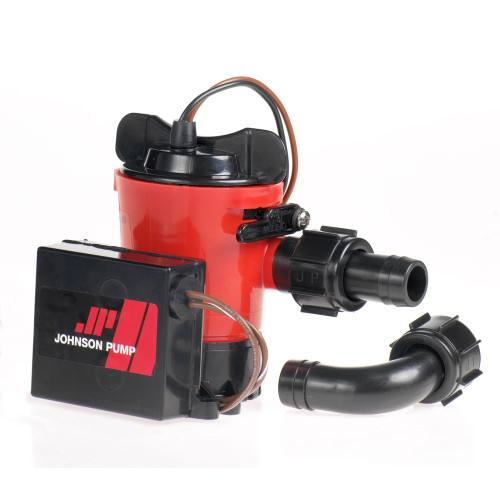

The Johnson Pump 1000 GPH Ultima Combo Automatic Submersible Bilge Pump is a cutting-edge solution for marine and navy use. Combining Johnson Pump Marine’s proven Cartridge Bilge Pumps with the advanced Ultima Switch™, this pump ensures your vessel stays dry and safe, delivering reliable performance and peace of mind on the water.

Advanced Design for Superior Efficiency

The Ultima Combo Pump features the Ultima Switch™, an electronic automatic switch that uses patented Mirus field effect detector cells. These cells create micro-electrical fields to detect water levels in the bilge, automatically activating or deactivating the pump as needed. This non-clogging switch ensures consistent performance, making it an essential component for any vessel.

Key Features and Benefits

• Automatic Operation: Equipped with the electronic Ultima Switch™ for hassle-free functionality.
• High Capacity: Removes up to 1000 GPH of bilge water effectively.
• Energy Efficient: Optimized for low power consumption.
• Durable Construction: Water-cooled motor and stainless steel (SS2343) shaft for long service life.
• Easy Maintenance: Tool-free servicing; pump casing remains attached to the boat and hoses.
• Versatile Installation: Includes straight and 90° Dura-Ports with a removable check valve.
• Built to Standards: Complies with ISO 8849 marine standards.
• Robust Build: Thermoplastic body with a lip-sealed shaft for enhanced durability.

General Description

The Johnson Pump 1000 GPH Ultima Combo Pump simplifies bilge water management with its compact, all-in-one design. Its stainless steel shaft and efficient water-cooled motor ensure reliability and long-lasting performance. The included Dura-Port discharge ports prevent stress cracking from over-tightened clamps, ensuring secure connections.

Technical Specifications

• Capacity at 3 ft (0.9 m) head (13.6V): 50 l/min - 800 GPH
• Capacity straight (13.6V): 63 l/min - 1000 GPH
• Voltage: 12V
• Amperage: 3.2 A
• Fuse Size: 5 A
• Connection: 3/4"
• Wire Size: 16GA
• Dimensions:
• Length: 4.41 in (112 mm)
• Width: 4.25 in (108 mm)
• Height: 3.35 in (85 mm)
• Weight: 14.4 oz

Durable Finish for Longevity

Constructed with high-quality thermoplastic, the Ultima Combo Pump is built to withstand harsh marine conditions. Its stainless steel shaft and water-cooled motor ensure reliable, long-term performance in challenging environments.

Product Variations

Choose the model that best suits your needs:

• 1000 GPH (Model: 07903-00): For high-capacity bilge water removal.
• 750 GPH (Model: 07703-00): A compact option for medium-capacity needs.

Why Choose the Johnson Pump 1000 GPH Ultima Combo Pump?

The Ultima Combo Pump combines advanced technology, robust construction, and user-friendly features for superior marine performance. Whether navigating rough seas or maintaining your vessel at the dock, it ensures efficient and reliable bilge system operation.

Benefits at a Glance

• Automatic water level detection and operation.
• High capacity for rapid bilge water removal.
• Energy-efficient and durable design.
• Easy, tool-free maintenance.
• Versatile installation options with included ports.
• Meets international marine standards.

Invest in the Johnson Pump 1000 GPH Ultima Combo Automatic Submersible Bilge Pump for reliable and efficient bilge water management. Choose from the available capacity options to match your requirements and enjoy the convenience and performance of this high-quality marine pump.
