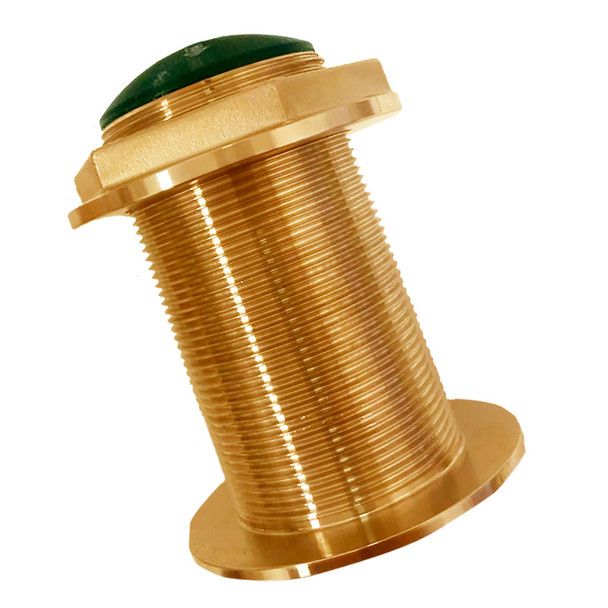

High-Performance Low-Profile Thru-Hull CHIRP Transducer

The Echonautics BT70H600 is a state-of-the-art high CHIRP transducer designed for superior depth and temperature readings. Engineered for marine applications, this transducer provides exceptional performance with minimal drag, making it ideal for high-speed vessels. Its low-profile thru-hull design ensures optimal water flow while maintaining accurate and reliable readings. With a frequency range of 130-210kHz and a power output of 600 watts, it delivers enhanced target separation and depth penetration, making it an excellent choice for serious anglers and commercial marine operators.

Advanced CHIRP Technology for Precision Readings

Equipped with high CHIRP technology, the BT70H600 transducer operates within a broad frequency range, allowing for superior target resolution and depth detection. The CHIRP system enables enhanced bottom tracking and detailed imaging, providing a clear and accurate representation of underwater structures and marine life.

Durable Bronze Construction for Marine Environments

Built with a robust bronze housing, the BT70H600 is designed to withstand harsh marine conditions. Its durable construction ensures long-lasting performance, even in challenging saltwater environments. The acoustic window, made from urethane, enhances signal transmission for more precise depth readings.

Technical Specifications

• Function: Depth and Temperature
• Frequency: CHIRP 130-210kHz
• Mount Style: Thru-Hull
• Tilt/Deadrise: 0° Tilted Element; Suitable for 0° to 7° Hull Deadrise
• Material: Bronze
• RMS Power: 600 Watts
• Hole Diameter: 2.38 in
• Cable Length: 27 ft
• Temperature Sensor: NTC
• Acoustic Window: Urethane

Product Variations

The BT70H600 transducer is available in multiple tilt angles to match various hull designs, ensuring optimal performance:

• BT70H600-00: 0° Tilt
• BT70H600-12: 12° Tilt
• BT70H600-18: 18° Tilt

Each variation is designed to accommodate different hull deadrise angles, allowing for precise installation and accurate sonar readings.

Key Features

• Low-profile thru-hull design minimizes drag and maximizes performance at high speeds
• CHIRP technology for enhanced depth and target resolution
• Sturdy bronze construction for durability in marine environments
• Wide frequency range for superior underwater imaging
• Available in multiple tilt variations for customized installation

Ideal for both professional and recreational marine applications, the Echonautics BT70H600 transducer delivers high-precision sonar performance in a rugged and reliable package.
