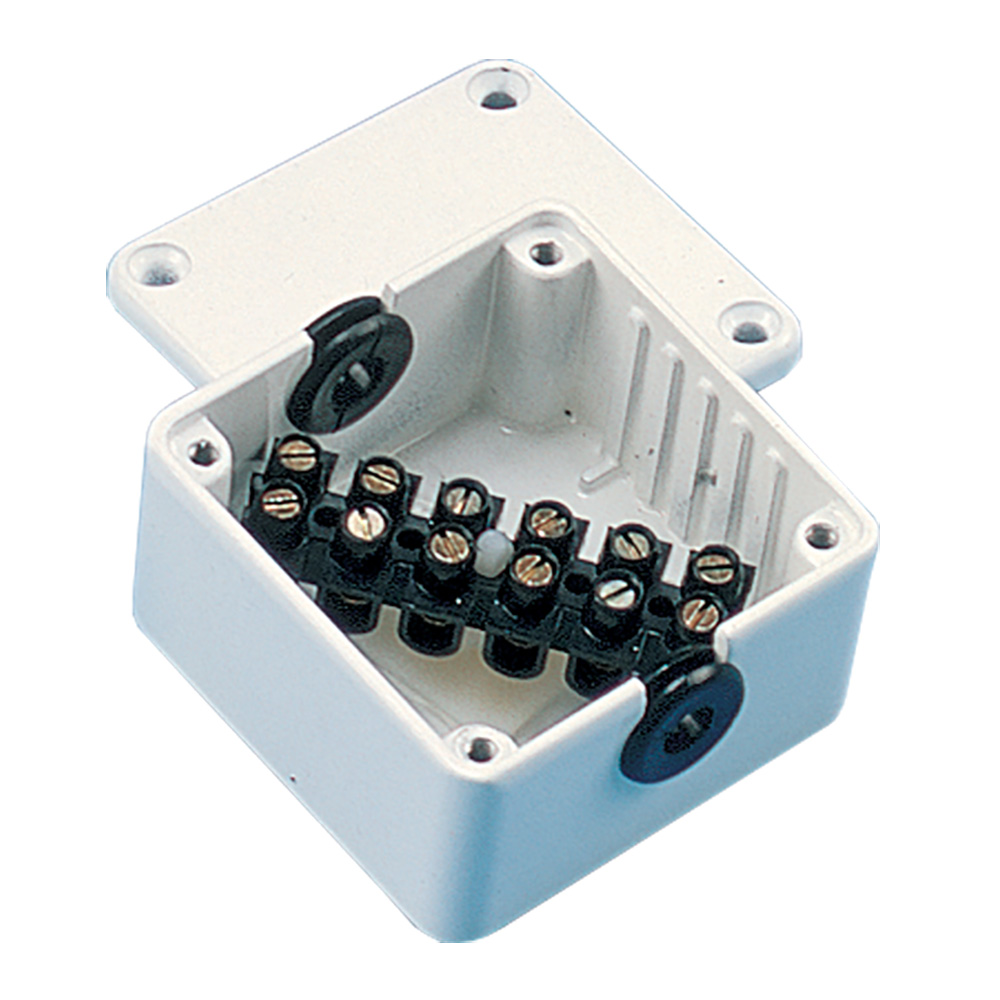

Newmar Power - BX-1 Junction Box

Protect Your Marine Wiring with Confidence

The Newmar BX-1 Junction Box is an essential component for any marine vessel, providing secure and protected wiring connections in critical areas such as wheelhouses, below decks, and engine rooms. This splashproof box ensures that your electrical systems remain safe and functional, even in challenging marine environments.

General Description

Designed for durability and reliability, the Newmar BX-1 Junction Box offers a robust solution for managing and protecting wiring connections on marine vessels. With its IP54 rating, this box is splashproof, making it ideal for use in areas where exposure to moisture and other elements is a concern. The rugged cast aluminum construction, finished with white enamel, not only enhances its durability but also helps reduce electrical interference.

Key Features

• Splashproof Design: Rated IP54 for reliable protection against splashes and moisture.
• Durable Construction: Made from rugged cast aluminum with a white enamel finish to withstand harsh marine conditions.
• Electrical Interference Reduction: Metal box construction helps minimize electrical interference for better performance.
• Easy Access Wiring: Multiple grommeted cable entries allow for easy and secure wiring access.
• High-Quality Connector Strips: Supplied with secure connector strips featuring compression fittings—no terminals required.

Technical Specifications

• Number of Connector Strips: 1
• Positions per Strip: 6
• Maximum Wire Gauge: 16
• Maximum Amps per Position: 6
• Cable Entries: 2
• Cable Diameter: 0.25 in.
• Box Size:
• Imperial: 2 x 2 x 1.2 inches
• Metric: 5.1 x 5.1 x 3.1 centimeters

Product Dimensions

The compact dimensions of the BX-1 Junction Box (2 x 2 x 1.2 inches) make it a versatile and space-saving solution for various marine applications, ensuring that it can fit into tight spaces while still providing robust protection for your wiring connections.

Highlights

• Reliable Protection: Ensures your wiring connections remain safe and functional in marine environments.
• Easy Installation: Multiple cable entries and high-quality connector strips simplify the wiring process.
• Durable and Long-Lasting: Built to withstand the rigors of marine use, ensuring longevity and reliability.
• Reduces Electrical Interference: The metal construction helps to minimize interference, enhancing the performance of your electrical systems.

Application and Usage

Ideal for use in wheelhouses, below decks, and engine rooms, the Newmar BX-1 Junction Box is a versatile solution for any marine vessel requiring secure and protected wiring connections. Its splashproof design and durable construction make it a reliable choice for maintaining the integrity of your electrical systems in challenging marine environments.
