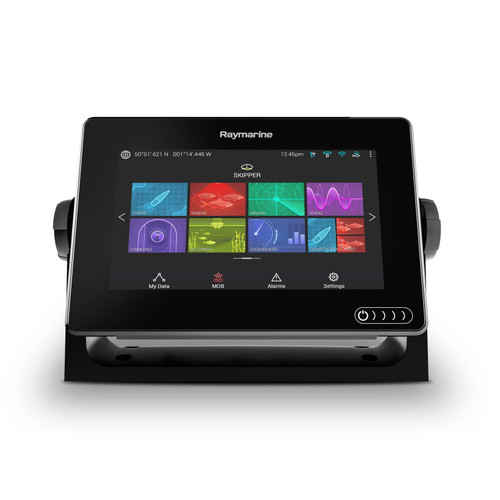

Advanced Marine Navigation with Raymarine Axiom 7DV

The Raymarine Axiom 7DV is a powerful and versatile multifunction display (MFD) designed to enhance your time on the water. Engineered for marine enthusiasts, this all-glass touchscreen display offers seamless navigation, real-time sonar imaging, and an intuitive interface powered by the advanced LightHouse 3 operating system. With built-in DownVision sonar and networking capabilities, the Axiom 7DV provides exceptional performance, whether you're charting new routes or monitoring marine environments.

High-Performance Display and Intuitive Controls

Designed for durability and ease of use, the Axiom 7DV features a sleek, buttonless, all-glass display with a responsive touchscreen interface. The swipe-to-power functionality ensures quick access, while the flush or surface mounting options provide seamless integration into any vessel's helm.

Cutting-Edge LightHouse 3 Operating System

The Axiom 7DV operates on the intuitive LightHouse 3 OS, offering a fast and fluid user experience. This uncluttered interface can be fully customized to suit your navigation style, making it simple to access charts, sonar views, and system settings with minimal effort.

Superior Sonar and Radar Integration

Equipped with a built-in DownVision sonar and 600W CPT-100DVS transducer, the Axiom 7DV delivers high-resolution underwater imagery for a clearer view of structures and fish. Additionally, it is compatible with external CHIRP sonar modules, CP470 and CP570, allowing for expanded sonar capabilities. The system also supports advanced radar features, including uncluttered radar modes and real-time sensitivity adjustments via the LightHouse Live View Menu.

Seamless Charting and GPS Functionality

Navigate confidently with built-in support for Navionics and LightHouse Raster and Vector Charts. The integrated GNSS receiver provides high-precision GPS tracking with support for GPS, GLONASS, and Beidou satellite systems, ensuring accurate positioning even in challenging environments.

Expandable Networking and Connectivity

The Axiom 7DV is designed for integration with other marine electronics. It supports NMEA2000 and SeaTalkng networks, enabling compatibility with a range of marine devices, including autopilots, engine monitors, and marine audio systems. Built-in Wi-Fi and Bluetooth connectivity allow for seamless integration with Raymarine apps on tablets and smartphones.

Enhanced Marine Surveillance and Thermal Awareness

With support for FLIR Systems ClearCruise™ thermal video analytics, the Axiom 7DV enhances situational awareness by detecting non-water objects and providing real-time alerts. Additionally, the MFD can function as a video monitoring hub, supporting up to four IP cameras simultaneously for improved docking and crew monitoring.

Technical Specifications

• Display Size: 7.0" Optically Bonded LCD
• Resolution: 800 x 480 WQVGA
• Screen Type: Touchscreen
• Mounting Options: Top / Flush / Bracket / Rear Mounting
• Networking: 1 x 10/100 Mbits Network (RayNet)
• Waterproofing: IPX6 and IPX7
• Memory Card Slot: 1x MicroSD
• Bluetooth Compatibility: Bluetooth 2.1 + EDR, AVRCP 1.0
• Radar Compatibility: Yes
• Thermal Night Vision Compatibility: Supports FLIR M100 and M200 cameras
• Video Cameras: Optional
• External Sonar Support: Digital and CHIRP sonar modules
• Built-in Sonar: DownVision
• GPS Receiver: GNSS (GPS/GLONASS/Beidou) - 10Hz, 72 Channel
• AIS Support: Compatible with optional receivers and transceivers
• Autopilot Control: Integrated with Evolution Autopilot
• Digital Switching: Empirbus compatible
• Audio Integration: Supports NMEA2000-compatible marine audio devices
• Operating Temperature: -13°F to +131°F (-25°C to +55°C)
• Input Voltage: 12V / 24V DC (10.8V DC to 31.2V DC)

Key Features

• High-performance 7-inch touchscreen display with rugged all-glass construction
• Integrated DownVision sonar for clear underwater imaging
• LightHouse 3 OS with a fast and customizable interface
• Seamless chart compatibility with Navionics and LightHouse charts
• Built-in GPS with multi-satellite support
• Network-ready for NMEA2000 and SeaTalkng devices
• FLIR ClearCruise™ thermal camera compatibility for enhanced marine awareness
• Wi-Fi and Bluetooth connectivity for easy device integration
• Expandable with Raymarine accessories, including radar, autopilots, and audio systems

What's in the Box

• Raymarine Axiom 7 MFD (Trunnion adapter pre-installed)
• Trunnion mounting bracket
• Trunnion knobs (x2)
• Suncover (Trunnion mount)
• Panel mount gasket for surface/flush mounting
• M5x58 threaded studs (x4)
• M5 thumb nuts (x4)
• Documentation pack
• Power/NMEA 2000 cable (1.5m power lead, 0.5m NMEA 2000 lead)
• Lighthouse NC3 North America lakes and Coastal Tides Stations microSD Card
• CPT-100DVS Transom Mount Transducer

The Raymarine Axiom 7DV is the ultimate marine navigation solution, providing superior sonar imaging, seamless integration with onboard systems, and an intuitive touchscreen experience. Whether you're navigating coastal waters or exploring inland lakes, this MFD delivers precision, clarity, and advanced functionality to enhance your journey on the water.
