Advanced Thermal and Visible Imaging for Marine Navigation

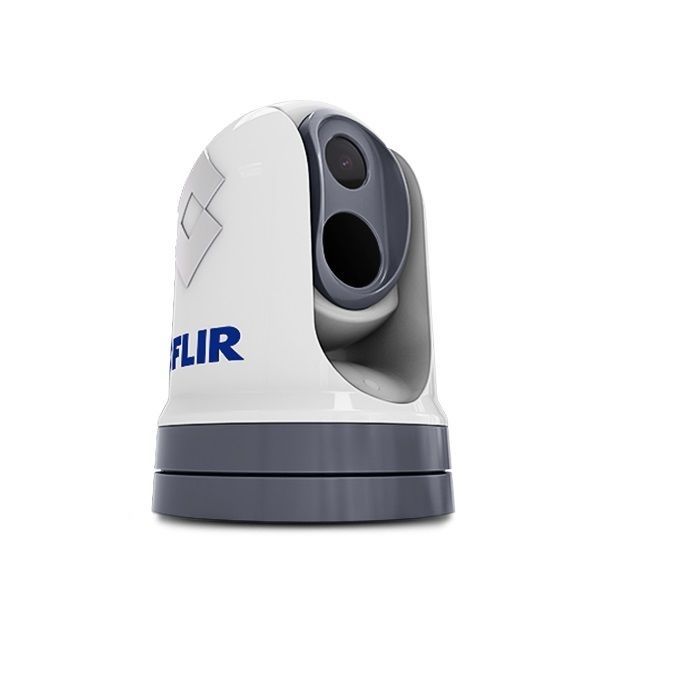

The FLIR Systems M364C Dual Payload Thermal Camera is designed to provide an elite level of situational awareness on the water. Equipped with a high-definition low-light camera and one of FLIR's most advanced thermal imaging cores, this system delivers superior imaging performance for law enforcement professionals, commercial mariners, and serious recreational boaters.

Featuring FLIR’s exclusive Color Thermal Vision™ (CTV) technology, the M364C seamlessly blends visible light and thermal imagery, allowing captains to positively identify navigation aids and other vessels in the thermal scene. The multispectral imaging capabilities, combined with intelligent object recognition technology and enhanced gyro-stabilization, ensure precise and stable visuals even in the most challenging marine conditions.

Exceptional Thermal and Visible Imaging Capabilities

• Thermal and Visible Imaging: Integrates FLIR Color Thermal Vision™ (CTV) and MSX® technology for enhanced scene awareness.
• Low-Light HD Visible Sensor: Captures high-definition imaging even in minimal light conditions.
• Long-Range Zoom: 30x optical zoom in daylight mode for superior target identification.
• Two-Axis Mechanical Stabilization: Virtually eliminates the effects of pitch, heave, and yaw for steady visuals in rough waters.

Technical Specifications

• Detector Type: 640 x 512 VOx Microbolometer
• Field of View (Thermal): 24° x 18°
• Image Processing: FLIR Proprietary Digital Detail Enhancement
• HD-SDI Lossless Video Output: Yes
• Network Video Output: Single H.264 Network Video Stream
• Pan & Tilt Adjustment Range: 360° Continuous Pan, +/- 90° Tilt
• Zoom (Color Camera): 12x E-Zoom
• Daylight Camera Sensor: 1/2.8” Exmor R CMOS
• Daylight Camera Zoom: 30x Optical Zoom
• Daylight Camera Resolution: High Definition up to 1080/30p
• Minimum Illumination: 0.1 lux (standard), 0.0008 lux (enhanced settings)

Rugged and Marine-Optimized Durability

• Operating Temperature Range: -13°F to +131°F (-25°C to +55°C)
• Storage Temperature Range: -30°F to +158°F (-30°C to +70°C)
• Automatic Window Defrost: Standard at power-up
• Water Ingress Protection: IPX6-rated for heavy seas and power jets of water
• Shock Resistance: 15g vertical, 9g horizontal
• Vibration Protection: IEC60945 standard
• Lightning Protection: Built-in
• Wind Resistance: Rated for up to 100 knots (115.2 MPH)
• Sand & Dust Protection: Mil-Std-810E or IP6X certified

Marine Imaging and Optical Features

• Focus: Fixed at 12 ft (3m) to infinity
• Thermal Camera Focal Length: 18mm
• Thermal Video Refresh Rate: 30 Hz
• Continuous E-Zoom (Thermal): 8x

Included in the Box

• M364C Camera Unit
• Camera Base-Seal
• Camera Gasket
• RayNet-to-RJ45 Adaptor Cable (120 mm / 4.72 in.)
• Right-Angled RayNet-to-RayNet Cable (3 m / 9.8 ft.)
• Right-Angled BNC-to-BNC Cable (3 m / 9.8 ft.)
• Right-Angled 3-Pin Power Cable (3 m / 9.8 ft.)
• Mounting Riser
• Camera Fastening Kit (nuts, dome nuts, washers, threaded studs)
• Self-Adhesive Decals (for ball-down mounting)
• Documentation Pack

Key Highlights

• Seamlessly blends visible and thermal imaging for enhanced navigation awareness
• High-definition daylight camera with 30x optical zoom
• Advanced two-axis mechanical stabilization ensures clear, stable imaging in all conditions
• Built for the marine environment with IPX6 water resistance and military-grade durability
• Ideal for law enforcement, commercial marine operations, and serious recreational boaters

The FLIR Systems M364C is a powerful marine imaging solution, offering unparalleled clarity and precision for those who demand the best in navigation technology. Whether for security, search and rescue, or enhanced situational awareness, this camera is an indispensable tool on the water.
