High-Performance Transom-Mount Transducer for Accurate Marine Readings

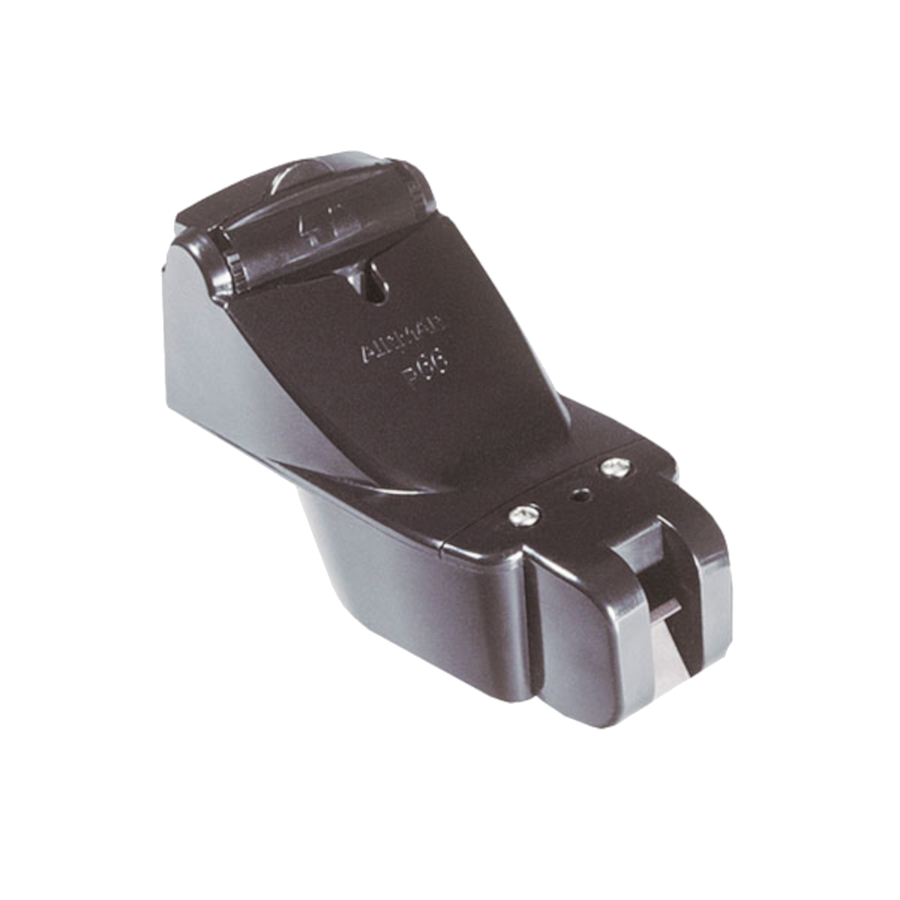

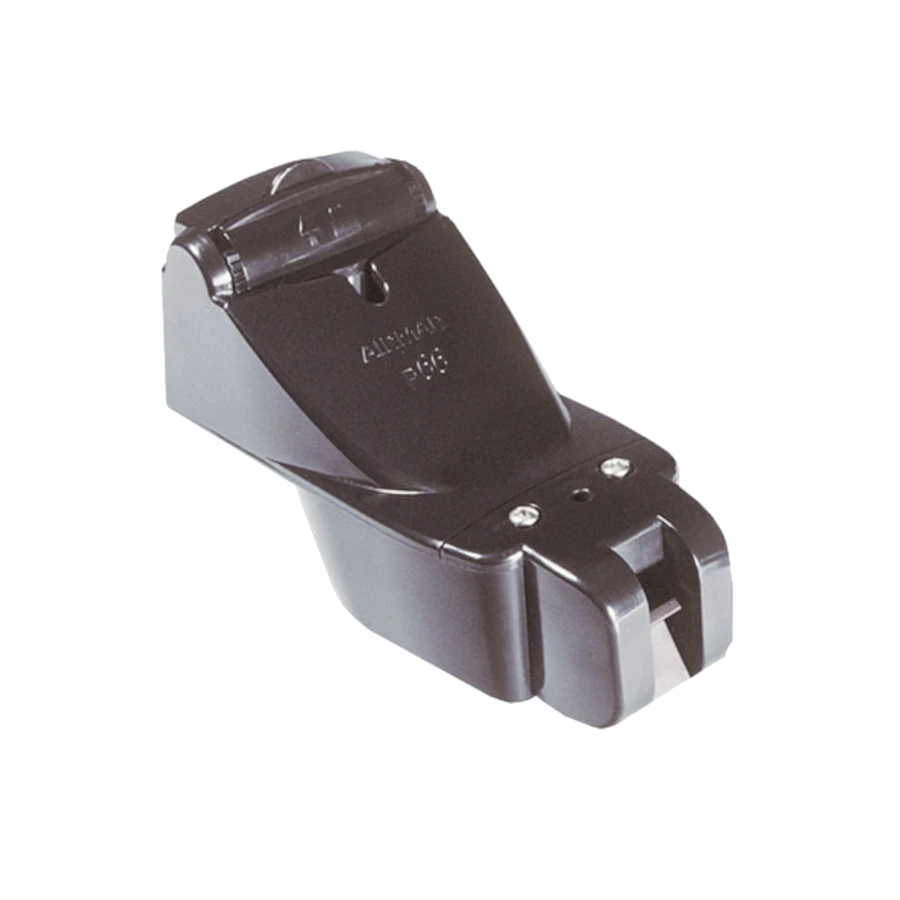

The Airmar P66 is the most popular and best-performing transom-mount TRIDUCER® Multisensor available, designed to deliver precise depth, speed, and temperature readings. Its hydrodynamic shape ensures smooth water flow under the transducer face, resulting in accurate data and clear display imaging, even at high speeds. Engineered for durability, the plastic release bracket allows the P66 to rotate upward upon impact, protecting the housing from damage while underway. This makes it an excellent choice for boat owners seeking reliable performance in a compact and efficient design.

Advanced Dual-Frequency Capability

With dual-frequency operation at 50/200 kHz, the Airmar P66 provides versatility for different depths and conditions. The wide 45° beam at 50 kHz is ideal for deep-water detection, while the narrow 11° beam at 200 kHz enhances detail and target separation in shallower waters. This flexibility makes it a valuable tool for both coastal and offshore navigation.

Technical Specifications

• Frequency: 50/200 kHz
• Cone Angles: 45° at 50 kHz / 11° at 200 kHz
• RMS Power: 600 W
• Mounting Type: Transom-mount with plastic housing
• Functions: Depth, speed, and temperature readings

Maximum Depth Range

• 50 kHz: 235 m to 353 m (800' to 1,200')
• 200 kHz: 118 m to 206 m (400' to 700')

Optimized for Mid-Sized Boats

The Airmar P66 is suitable for boats ranging from 5 m to 8 m (18' to 25'), ensuring compatibility with a wide range of vessels. Its efficient design and reliable readings make it a preferred choice for both recreational and commercial marine applications.

Key Highlights

• Hydrodynamic design for smooth water flow and accurate high-speed readings
• Provides depth, speed, and temperature data in a single unit
• Durable plastic release bracket protects the transducer from impact
• High-performance transom-mount sensor for superior marine navigation
• Ideal for boats ranging from 18' to 25' in length

This transducer is a powerful addition to any marine setup, ensuring precision and reliability in various water conditions.
