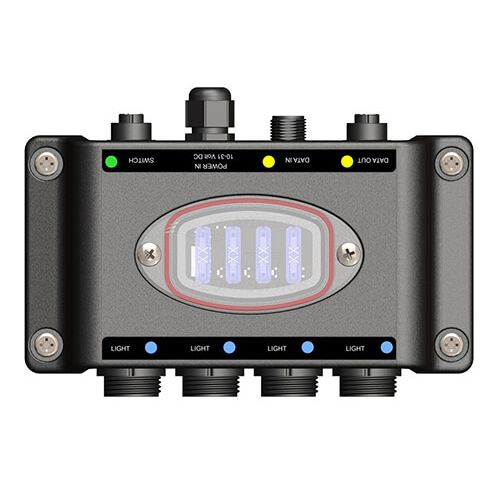

Introducing the Lumoshore I-Connect Hub, a specially designed junction box for THX/TIX403, 803, and 1603 SUPRA Series underwater lights. The hub has been designed with ease of installation in mind, featuring plug-and-play connections that make installation a breeze. It is also compatible with SUPRA i-Connect Hub Switch or as an interface between Lumi-Link MFD Bridge and compatible MFDs like Garmin OneHelm™.

Each hub supports up to four THX/TIX SUPRA fixtures, and up to four i-Connect SUPRA Hubs can be linked together to expand up to 16 lights. This makes it a perfect choice for boats and yachts of any size that require powerful and reliable underwater lighting.

The Lumoshore I-Connect Hub comes with a built-in switching power relay, replaceable fuses, and a noise filter, ensuring a long-lasting and trouble-free operation. The black thermoplastic housing finish and the marine-grade aluminum bronze trim ring (bezel) make it a perfect fit for any marine environment.

This hub is class III certified and has a full spectrum color-changing output (RGBW) that can last up to 50,000 hours. Its cut-out dimensions are 3.625" (92mm), while the trim ring (bezel) dimensions are 5.50" (140mm) in diameter and 0.43" (11mm) in profile height. The input voltage range is 10-31VDC, and the power consumption is 2 x 156W max (per fixture).

With a recessed depth of 7.24" (184mm) and a beam angle of 90°+, this hub provides exceptional lighting for various installation locations like transom, bottom, or hull-side. The lens material is made of toughened BK7 Borosilicate, and the maximum wattage is 156W (per fixture). The ingress protection rating is IP68, and the load rating is 40A.

The Lumoshore I-Connect Hub is the perfect choice for boat and yacht owners who want reliable, easy-to-install, and high-quality underwater lighting for their vessels. With its many features and compatibility with various MFDs, this hub is sure to provide the best lighting experience for any marine adventure.
