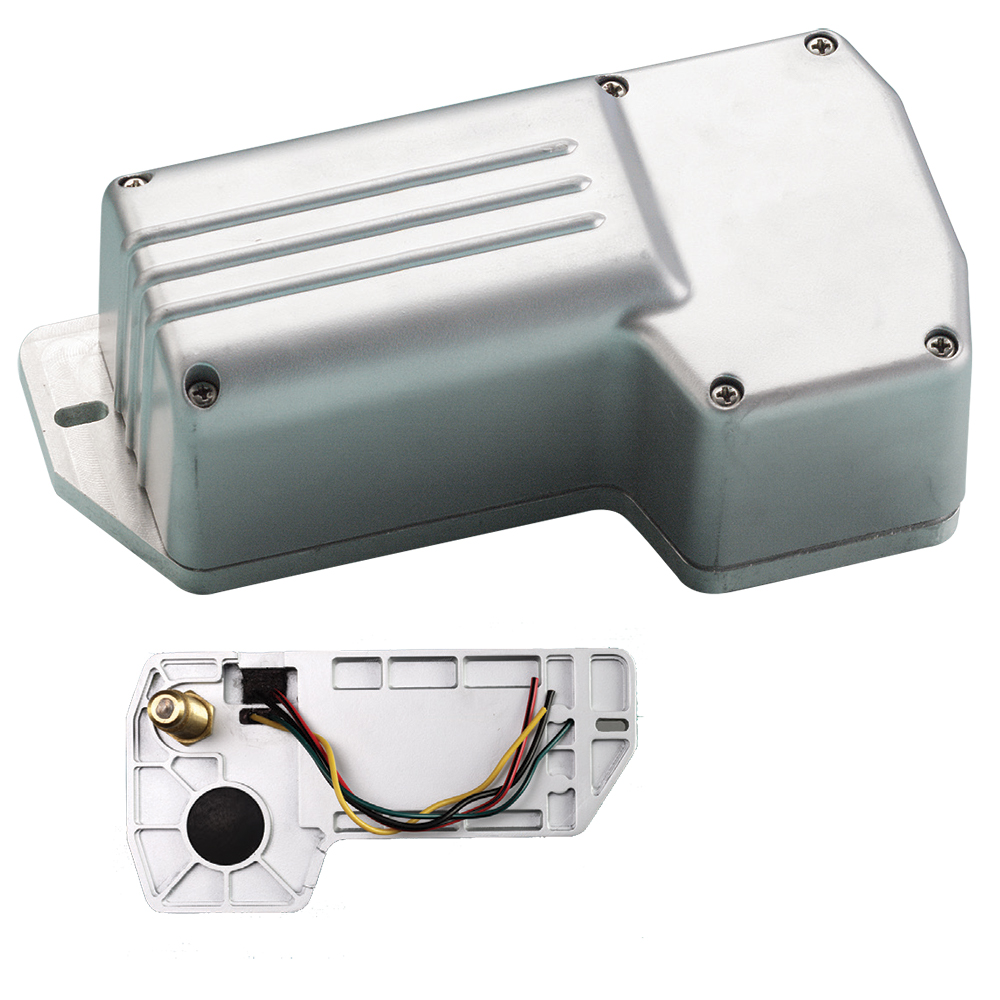

Marinco - Waterproof Wiper Motor - 12V, 2.5" Shaft, 80° Sweep

Engineered for the Elements

The Marinco Waterproof Wiper Motor 12V is the pinnacle of marine wiper motors, offering unmatched durability and performance. Designed to withstand the harshest marine environments, this wiper motor features a fully sealed, powder-coated aluminum base and housing. Whether navigating through heavy rain or rough seas, this motor ensures your visibility remains clear and unobstructed, making it an indispensable component for any marine vessel.

Robust and Reliable Performance

This wiper motor is equipped with a powerful two-speed motor and a factory pre-set sweep angle of 80 degrees, which can be easily adjusted to 45 or 60 degrees for customizable performance. The chrome-plated solid brass knurled drive nut, combined with brass and stainless steel driveshaft, guarantees long-lasting reliability and corrosion resistance. The motor also includes sealed 6" wire leads with 16 AWG, ensuring secure and waterproof connections.

Key Features

• Fully Sealed Aluminum Housing: Powder-coated for superior waterproof protection.
• Adjustable Sweep Angles: Pre-set at 80 degrees, adjustable to 45 or 60 degrees.
• Two-Speed Motor: Provides flexible operation speeds.
• Solid Brass and Stainless Steel Construction: Ensures durability and corrosion resistance.
• Sealed Wire Leads: 6" long, 16 AWG for secure connections.
• Adjustable Self-Parking: Right or left self-parking for convenience.
• RF Shielded Circuitry: Reduces interference for reliable performance.

Technical Specifications

• Shaft Length: 2.5" (includes 0.5" length of knurled arm fitting)
• Shaft Diameter: 0.625" (16 mm)
• Dimensions: 7.75" L x 4" W x 2.75" D
• Stall Torque: 109 in-lbs (125 kgf/cm; 12.3 Nm)
• Stall Current: 11.5-13.0 amps
• No Load Current: 0.5-1.2 amps
• Voltage Options: Available in 12V and 24V models
• Inclusions: Retail version includes 5 amp fuse and holder (operating switch not included)

Perfect Fit and Finish

The Marinco Waterproof Wiper Motor is designed to power a 22" Deluxe arm and blade combination or a 20" Premier arm and blade combination, making it a versatile choice for a variety of marine applications. Its robust build and precise engineering ensure that it stands up to the toughest conditions while maintaining top-notch performance.

Dimensions and Scale

• Overall Size: 7.75" Length x 4" Width x 2.75" Depth
