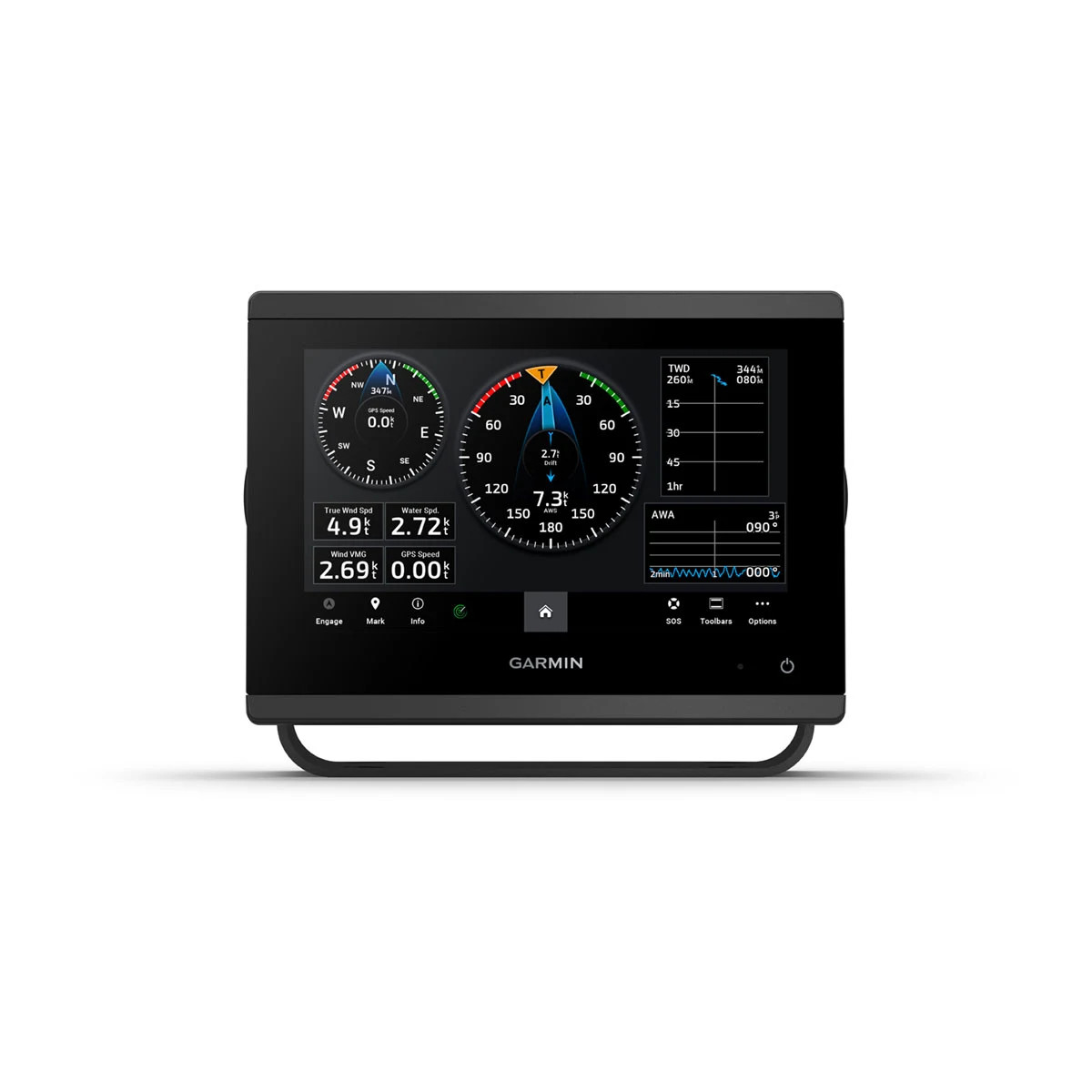

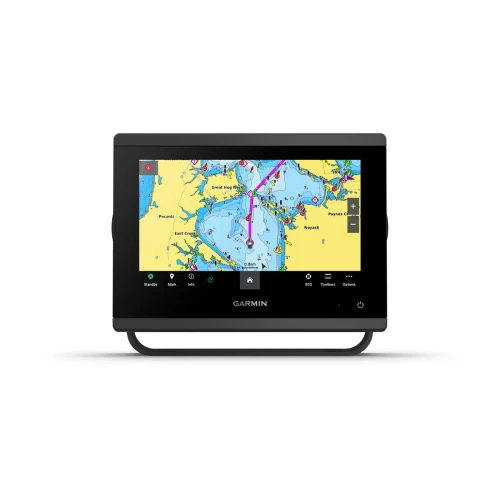

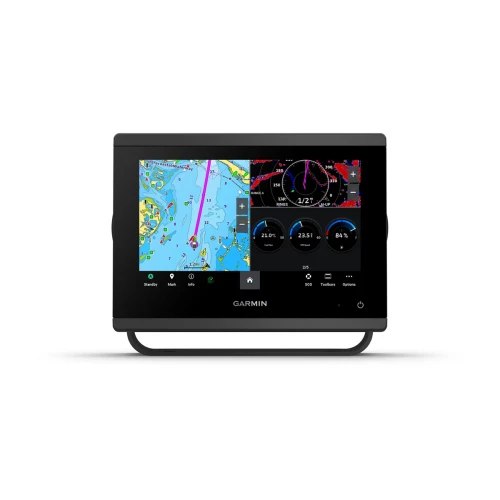

Advanced Marine Navigation with the Garmin GPSMAP 723 Chartplotter

Experience seamless marine navigation with the Garmin GPSMAP 723 Chartplotter, designed for high-resolution mapping and advanced connectivity. Featuring a 7-inch WSVGA display with 60% more pixels than previous models, this chartplotter enhances visibility even in bright sunlight. The upgraded processing power ensures smooth operation, making it an essential tool for sailors, anglers, and marine professionals.

With its slimline design and edge-to-edge glass display, the GPSMAP 723 integrates effortlessly into your marine system, offering compatibility with premium Garmin and Navionics® maps. It supports NMEA 2000® and NMEA 0183 connectivity, allowing integration with various marine devices such as autopilots, digital switching systems, VHF radios, AIS, and sonar technology.

Stay in control with built-in Wi-Fi® connectivity, which enables access to smart notifications, software updates, and the OneChart™ feature through the Garmin mobile app. Additionally, the GPSMAP 723 supports multiple engine integrations, including select Yamaha models, and provides essential sailing features such as laylines, enhanced wind rose, and race start line guidance.

Technical Specifications

• Display: 7-inch WSVGA, 1024 x 600 resolution
• Water Rating: IPX7 (water-resistant for marine environments)
• Antenna: Internal or external over NMEA 2000
• Polarized Support: Yes
• Mounting Options: Bail, flush, or flat
• Receiver: 10 Hz high-sensitivity
• Garmin Marine Network Ports: 1
• Power Consumption:Max power usage at 10 Vdc: 17.6 W
• Typical current draw at 12 Vdc: 1.1 A
• Max current draw at 12 Vdc: 1.5 A

Product Dimensions

• Physical Dimensions: 7.6" x 5.5" x 2.9" (19.2 x 14.0 x 7.4 cm)
• Display Size: 6.1" x 3.5" (15.4 x 9.1 cm), 7.0" diagonal (17.8 cm)
• Weight: 2.8 lbs (1.3 kg)

Mapping & Memory

• Preloaded Maps: Worldwide Basemap
• Accepts Data Cards: 2 microSD™ slots (located at the back of the unit)
• Waypoints Storage: Up to 5,000 waypoints
• Track Log Capacity: 50,000 points, 50 saved tracks
• Routes: 100

Chartplotter & Sailing Features

• Garmin Radar Compatible: Yes
• Sonar Compatibility: Supports Garmin Sonar with an external black box (sold separately)
• Sailing Enhancements: Laylines, enhanced wind rose, tide/current/time slider, race start line guidance, wind data fields, and more
• SmartMode™ Customizable Monitor Presets: Yes
• AIS & DSC Support: Displays target ships' positions and DSC-capable VHF radio data
• Fusion-Link™ Compatible: Yes, supports integration with Fusion marine audio systems
• ActiveCaptain® Compatible: Yes, for wireless access to charts, notifications, and updates

Sonar Capabilities

• CHIRP Sonar Technology: Yes (requires external black box)
• ClearVü & SideVü: Yes (requires external black box)

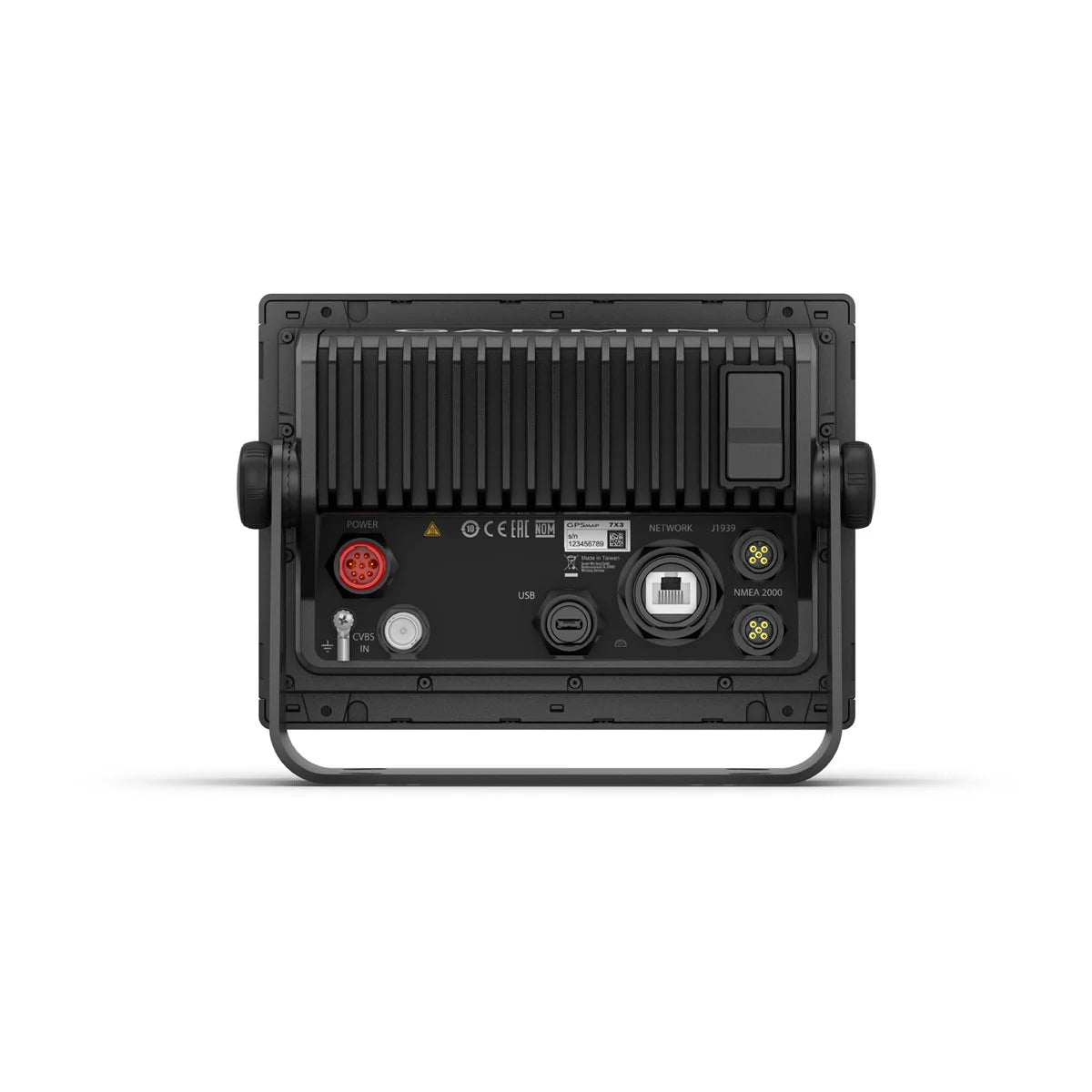

Connectivity & Network Integration

• NMEA 2000® & NMEA 0183 Compatibility: Yes
• Wireless Connectivity: Yes, supports remote control access and mobile app integration
• Video Input Ports: 1 BNC
• Garmin Marine Network Ports: 1
• Compatible with Digital Switching & Third-Party Devices: Yes, including EmpirBus™ and Yamaha engine integration

Highlights

• High-resolution 7-inch display with improved sunlight readability
• Advanced connectivity for seamless integration with marine systems
• Built-in Wi-Fi® for smart notifications, OneChart™, and Garmin Helm™ digital switching
• Supports premium Garmin and Navionics® maps with Auto Guidance technology
• Enhanced sailing tools, including laylines, wind data, and race start line guidance
• Compatible with Fusion-Link™, Garmin radar, and multiple sonar technologies
• Water-resistant design (IPX7) for reliable performance in marine environments

What's in the Box

• Garmin GPSMAP 723 Chartplotter
• Preinstalled microSD™ card
• Power cable
• NMEA 2000® T-connector and drop cable (2 meters)
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation

The Garmin GPSMAP 723 is a feature-rich, high-performance chartplotter designed to elevate your marine navigation experience. Whether you're cruising, sailing, or fishing, this device provides the precision and reliability needed for confident navigation on the water.
