Egis Mobile Electric - XD Series Triple Flex 2 Mechanical Switch - With Knobs DTM Connector

Revolutionize Your Marine Electrical System with Compact, High-Performance Relay Technology

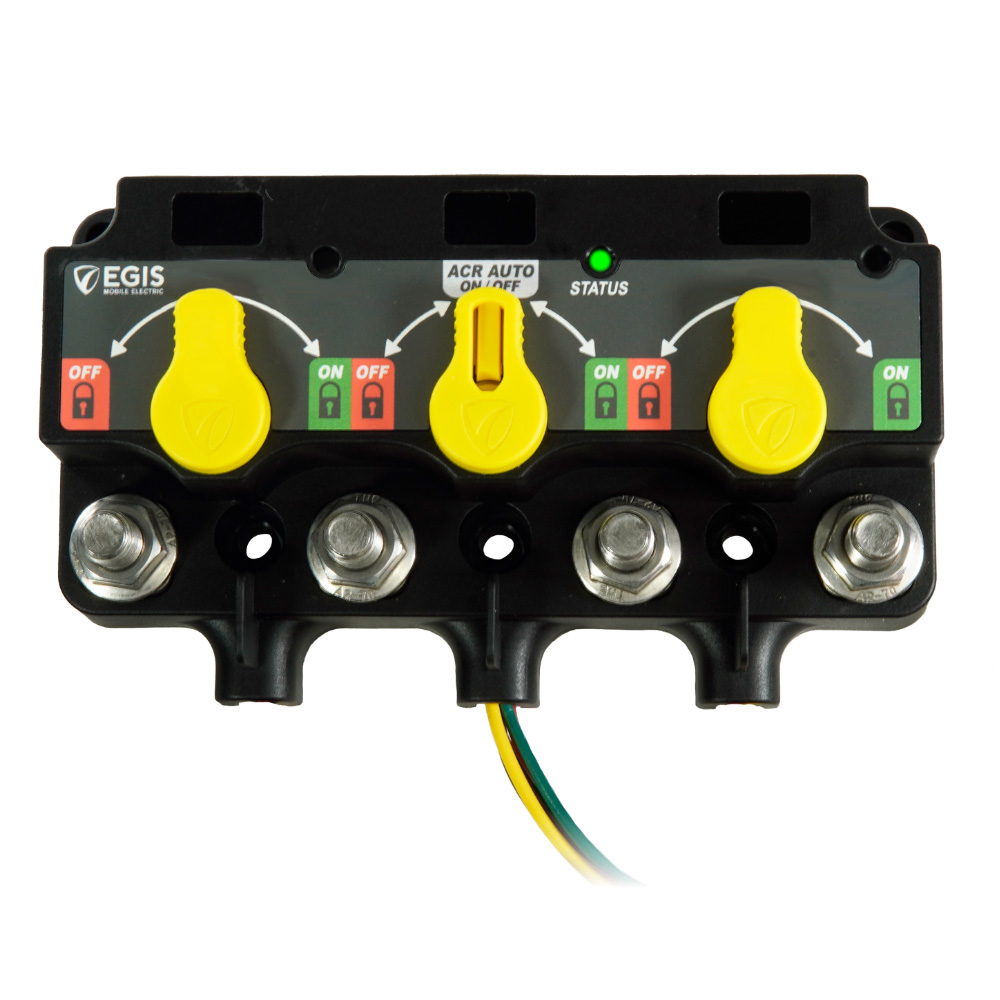

The Egis XD Series Triple Flex 2 Mechanical Switch-ACR-Mechanical Switch with Knobs & DTM Connector is designed to streamline your marine electrical systems by consolidating three high-amp relays into one compact module. This advanced relay system minimizes space requirements, eliminates the need for external link cables, and offers intuitive manual control options. It’s an ideal choice for modern marine applications, ensuring robust circuit switching and efficient battery management.

General Description

The Egis XD Series Triple Flex 2 Mechanical Switch-ACR-Mechanical Switch offers unparalleled efficiency and reliability for marine electrical systems. This innovative relay replaces three individual relays, significantly reducing installation space and weight, simplifying wiring, and enhancing operational awareness with easy-to-use manual controls. It is perfect for multi-battery mechanical switching and charge management functions, supporting up to four battery systems with additional busbar accessories.

Key Features and Benefits

• Space and Weight Efficiency: Reduces mounting space and weight by 35-75% compared to traditional systems.
• Durable Construction: Sealed to IP67/IP6K9K standards with high-temperature electronics and stainless steel hardware for reliable performance.
• Intuitive Manual Control: Simplifies operation and increases awareness of the relay’s manual override state.
• Flexible Programming: Easy dip switch programming allows significant flexibility for various applications.
• Energy Efficient: Reduces off-state current draw by 90-95%, ensuring efficient power usage.
• Plug-and-Play Compatibility: Compatible with legacy competitor products for seamless integration.
• Expandable: Supports additional dual, triple, or single XD relays with standard busbar interconnect accessories.

Bullet Points Summary

• Combines three high-amp relays into one compact module
• Reduces installation space and weight significantly
• Sealed to IP67/IP6K9K for harsh marine environments
• Intuitive manual control options
• Easy dip switch programming
• Low off-state current draw
• Compatible with legacy competitor products
• Supports multi-battery systems with additional busbar accessories

Technical Specifications

• Total Continuous Current Amps: 500
• Max Cranking Current (Amps): 1500
• Mechanical Switching Life: 1,000,000 Cycles
• Voltage Range (VDC): 8-36
• Off-State Current Draw (mA): 1.3
• State Change Current: 5A @ 12 VDC; 3A @ 24 VDC

Focal Features

LED Status Display

The front-facing LED indicator provides clear visual status of the device, with a remote LED replicating the on-device LED for easy monitoring.

3-Position Manual Override

Allows for forcing each relay open or closed, with the option to lock the relay in either condition for added control and safety.

40 Circuit Label Sheet Included

Includes weatherproof labels for easy circuit and relay identification, with blank labels available for custom applications.

Protective Cover Included

Protects terminal studs and cable terminal edges from accidental shorts, ensuring safe operation.

Stainless Hardware

Quality stainless steel studs and self-locking flanged nuts resist corrosion, ensuring long-term reliability.

Programmable

Dip switches located under the protective cover allow for easy customization of settings, making it suitable for a wide variety of applications.

Smaller Footprint

XD relays offer a high amp rating in a compact package, reducing installation space requirements to a minimum.

Integrated Vent

High-quality Gortex vents regulate internal device pressure, preventing moisture entry and ensuring long product life in harsh environments.

The Egis XD Series Triple Flex 2 Mechanical Switch-ACR-Mechanical Switch with Knobs & DTM Connector is the ultimate solution for efficient and reliable battery management in marine applications. Its advanced design, robust construction, and user-friendly features make it the perfect choice for modern marine electrical systems.
