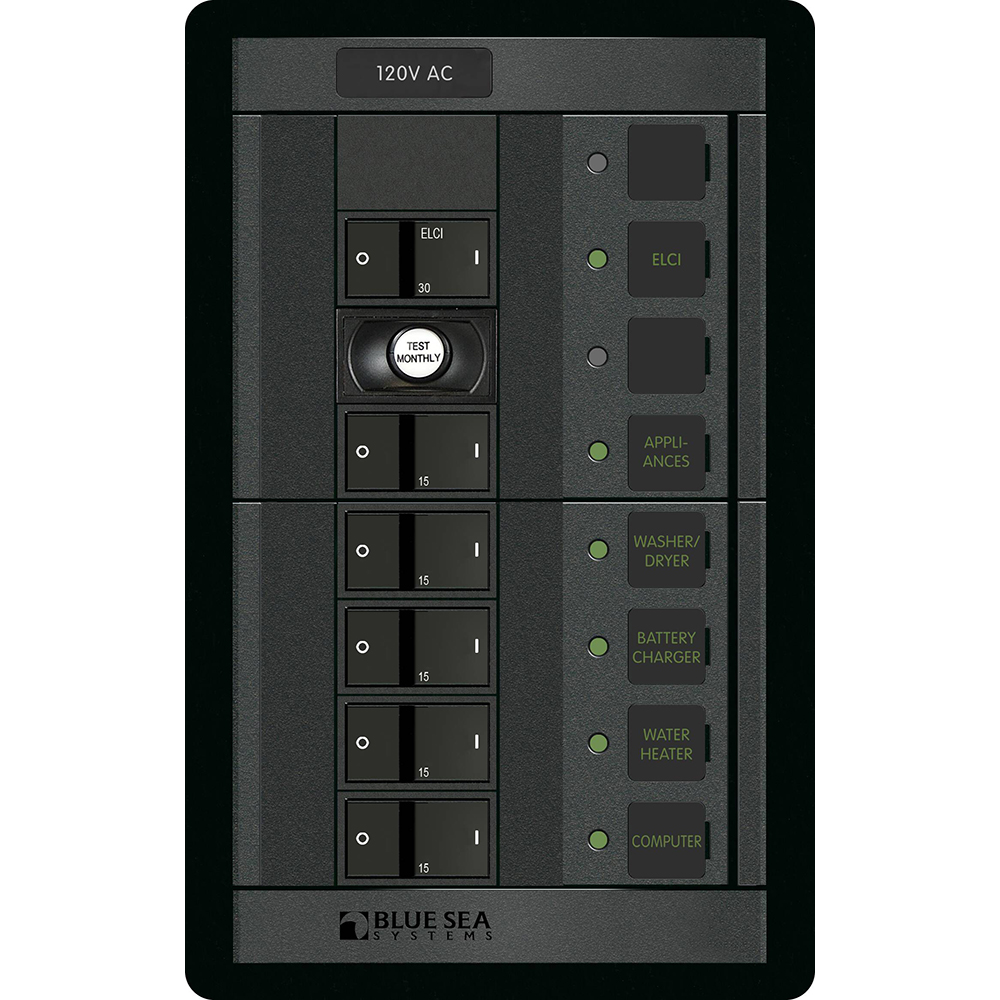

Blue Sea - 1503 - 360 Panel - ELCI + 5 Position 120V AC Flat Rocker

Enhancing Marine Product Description

The 1503 - 360 Panel - ELCI + 5 Position 120V AC Flat Rocker is a crucial component of the Blue Sea Systems Battery Management Panels, providing comprehensive safety measures for your boat's electrical system. This panel combines Equipment Leakage Circuit Interrupter (ELCI) protection with five branch breakers, offering enhanced safety against fire and shock hazards caused by appliance defects or circuit wiring issues.

With main circuit protection and the ability to control and protect multiple branch circuits, this panel ensures the safety and integrity of your boat's electrical setup. The green ON indicating LEDs allow for quick and easy identification of the operational status of each circuit, while the backlit label positions on the panel provide clear visibility even in low-light conditions.

Highlights:

• Combines Equipment Leakage Circuit Interrupter (ELCI) protection with five branch breakers
• Reduces the risk of fire and shock hazards
• Main circuit protection with control over multiple branch circuits
• Green ON indicating LEDs for easy identification of circuit status
• Backlit label positions for clear visibility in low-light conditions

In terms of technical specifications, the 1503 - 360 Panel offers five positions for branch circuits in addition to the ELCI. The 30A AC ELCI ensures effective protection with a trip reference. The panel features a user-friendly flat rocker actuator style. With a maximum voltage rating of 120V, it is suitable for standard AC power applications. The circuit breaker type utilized is the A-Series, with five branches rated at 15A and the ELCI main rated at 30A. The ELCI has a leakage trip amps set at 30mA. Measuring 7.75" x 4.88" x 3.99" (197 x 124 x 101mm), the panel has a compact and versatile size, facilitating easy installation and integration into your boat's electrical system.

The package includes the 1503 Panel itself, ensuring you have all the necessary components for installation. An instruction manual is also included to guide users through the setup process. It's important to note that this product is sold individually, allowing for customization and seamless integration into your specific battery management system.

Ensure the safety and reliability of your boat's electrical system with the 1503 - 360 Panel - ELCI + 5 Position 120V AC Flat Rocker. With its advanced features and compact design, it provides peace of mind for your marine power distribution needs.

Specifications:

The 1503 - 360 Panel - ELCI + 5 Position 120V AC Flat Rocker offers:

• Five positions for branch circuits in addition to the ELCI
• 30A AC ELCI with trip reference for effective protection
• User-friendly flat rocker actuator style
• Maximum voltage rating of 120V
• Circuit breaker type: A-Series, with five branches rated at 15A and ELCI main rated at 30A
• Leakage trip amps for ELCI set at 30mA
• Dimensions: 7.75" x 4.88" x 3.99" (197 x 124 x 101mm)
