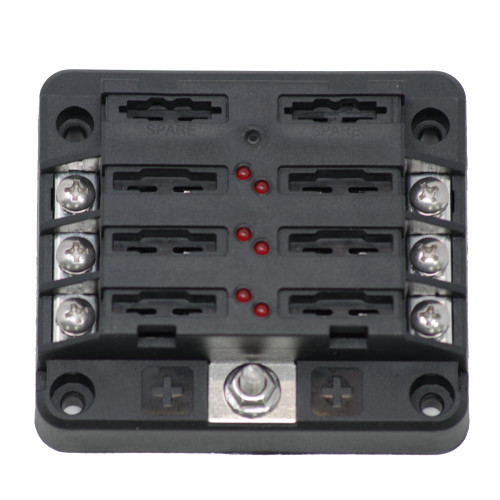

Egis Mobile Electric - RT Fuse Block 6 Position - With LED Indication

Enhance Your Marine Electrical System

The Egis RT Fuse Block 6 Position with LED Indication is an essential component for efficient and reliable power management in marine applications. This robust and versatile fuse block is designed to meet the demands of harsh environments, ensuring the safety and efficiency of your electrical systems. Its modular design allows for seven unique configurations, reducing the number of parts needed and simplifying installation.

Key Features and Benefits

• LED Fuse Diagnostics: Blown fuse LED indication for each output circuit provides clear visibility of faulty circuits, easing troubleshooting and remote diagnostics.
• Harsh Environment Design: Constructed with high-temperature materials and stainless steel self-locking hardware, ensuring durability and corrosion resistance.
• Versatile Circuit Protection: Accepts ATO style fuses ranging from 1 to 40 Amps, supporting SAE circuit protection standards for thermal and short circuit events.
• Spare Fuse Locations: Two locations per 6 circuits for spare fuses or test resistors, enhancing system evaluation and maintenance.

Applications

• Remote Diagnostics: Blown fuse LEDs speed up the correction of system faults and improve the ability to diagnose issues remotely.
• Marine and Harsh Environments: Designed with stainless steel self-locking hardware and optional weather-proof labels, this fuse block is ideal for marine applications.
• Comprehensive Circuit Protection: Protects branch circuits, ensuring reliable operation in demanding conditions.

Specifications

• Maximum Current (Entire Block): 10 Amps
• Maximum Current (Per Circuit): 30 Amps
• Max Output Wire Size: #10 AWG
• Voltage Range: 0-36 VDC
• Number of Fuse Positions: 6
• Compatible Fuse Types: ATO / ATC / ATF

Focal Features

Spare Fuse Locations

Provides two spare locations per 6 circuits for test resistors or spare fuses, reducing siren volumes during evaluations and ensuring easy maintenance.

Stainless Steel Self-Locking Hardware

Constructed with 100% non-ferrous corrosion-resistant materials, all attachment screws and nuts are self-locking, ensuring secure and reliable connections.

LED Fuse Diagnostics

Blown fuse LED indication for each output circuit provides a clear and immediate indication of faulty circuits, simplifying troubleshooting and maintenance.

Cover/Label Recesses

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground, ensuring safety and reliability.

Product Variations

6 Position Fuse Block (8028)

• Number of Positions: 6
• Ideal For: Standard applications requiring robust and reliable circuit protection in marine environments.

Ensure Reliable Circuit Protection with Egis

The Egis RT Fuse Block 6 Position with LED Indication is your go-to solution for dependable circuit protection in marine applications. With its advanced features, durable construction, and easy installation, this fuse block ensures the safety and efficiency of your electrical systems. Choose Egis for unmatched reliability and performance in your marine electrical installations.
