High-Performance Marine Radar for Enhanced Navigation

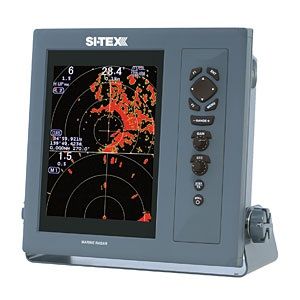

The Si-Tex T2060A-6 is a powerful 10.4-inch color radar designed to provide unmatched precision and reliability in marine navigation. Engineered with a 6kW open array system and a robust 6.5-foot antenna, this radar delivers superior target detection, even in challenging conditions. Its dual-speed antenna operates at 48 RPM, ensuring high-speed performance ideal for river and coastal navigation. The split-screen display allows simultaneous long- and short-range target tracking, offering an enhanced situational overview.

For increased safety and efficiency, the True-Trail function identifies moving targets, while interference rejection and target expansion features help maintain clarity in dense traffic areas. Additionally, an optional 50-target Automatic Tracking Aid (ATA) is available, further improving tracking accuracy.

Precision Technology and Key Features

• Dual-Speed Antenna: Operates at 24 or 48 RPM for flexible speed adjustments.
• Split-Screen Display: Simultaneously tracks long- and short-range targets.
• True-Trail Function: Clearly identifies moving targets to improve navigation awareness.
• Interference Rejection & Target Expansion: Enhances clarity by reducing noise and improving target definition.
• Standard AIS Interface: Tracks up to 200 targets for comprehensive monitoring.
• Multiple Display Modes: Choose from Heads Up, North Up, Course Up, and Waypoint Up for customized viewing.

Technical Specifications

Radar System:

• Antenna Type: 6.5' Open Array
• Peak Power Output: 6kW
• Output Frequency: 9410 ± 30MHz
• Beam Width: 1.2° Horizontal, 22° Vertical
• Rotation Speed: 24 or 48 RPM
• Pulse Width Options: 0.08, 0.15, 0.3, 0.5, 1 µsec
• IF Frequency: 60MHz
• Range Accuracy: Better than 8m or 1% of range scale selected
• Minimum Detecting Distance: 25m

Display Unit:

• Screen Size & Type: 10.4" TFT Color LCD
• Resolution: 480 x 640 pixels
• Power Requirements: 10.8 - 31.2V DC
• Power Consumption: 110 watts or less
• Display Modes: Heads Up, North Up*, Course Up*, Waypoint Up**

(*Requires external heading, speed, and/or GPS compass input. **Requires waypoint data input.)

Product Dimensions

• Display Unit: 12 19/32" x 12 19/32" x 5 39/64"

Included in the Box

• MRD-104 Display
• RB717A - Pedestal 6kW
• RW701A-06 - 6.5' Antenna
• 242J159098A - 15M Cable
• DC Power Cable
• Quick Reference Guide
• Operation Manual

Ideal for both commercial and recreational marine applications, the Si-Tex T2060A-6 radar system delivers high-performance detection and tracking capabilities, ensuring a safer and more efficient navigation experience.
