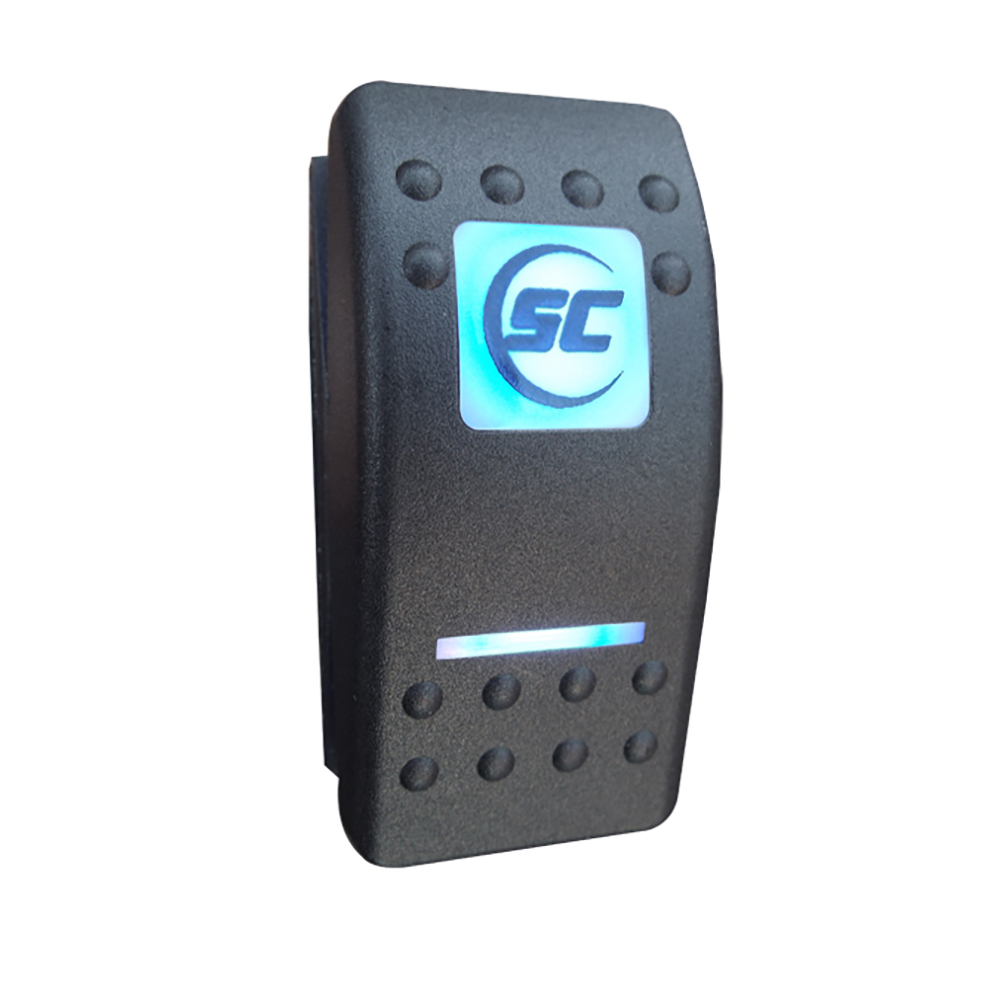

Shadow - Caster 3-Position On/Off/Momentary Marine LED Lighting Switch

Dive into the Illuminating World of Marine Switches!

3-Position On/Off/Momentary Marine LED Lighting Switch: Elevate your marine experience with this advanced switch designed exclusively for two-color and multi-color lighting. Whether you have a fishing boat, pontoon, sports boat, or a grand yacht, this switch is your ultimate choice for luminance.

Technical Tidbits

Our switch is not just any ordinary switch, it's packed with some impressive features:

• Off/On/Momentary operational modes
• LED Voltage Rating: Get a 12V operation or simply add a 600ohm resistor between pin 7 and ground for a 24V functionality
• Switch illumination comes with two blue LEDs
• Choose from Brass or copper/silver plate 1/4” (6.3mm) quick connect terminals
• Exceptional sealing of IP66/68 for the above-panel components of the actual switch
• Whether it's freezing at -40°C or boiling at +85°C, this switch remains operational
• Contact Rating: A solid 20 amps for 4-14VDC and 15 amps for 15-28VDC
• The switch and actuator are crafted in an elegant black

Dimensions that Define

While the precise dimensions aren’t provided here, rest assured this switch is compact, ensuring it doesn't take up unnecessary space on your boat.

Finishing Touches

With an attractive black finish, our switch is not only functional but aesthetically pleasing, blending seamlessly with your boat's interiors.

Key Highlights at a Glance

• Power On/Off capabilities
• Toggle to change colors effortlessly
• Experience multiple fade mode transitions

Available Variations

This product is a part of a larger collection of marine switches. From the standalone 3-position LED switch to combinations with ShadowNET® lighting control, explore the range to find the perfect match for your vessel.

Tip: Pair with the SCM-SNLC single-zone lighting controller to harness the full potential of the ShadowNET® lighting control.
