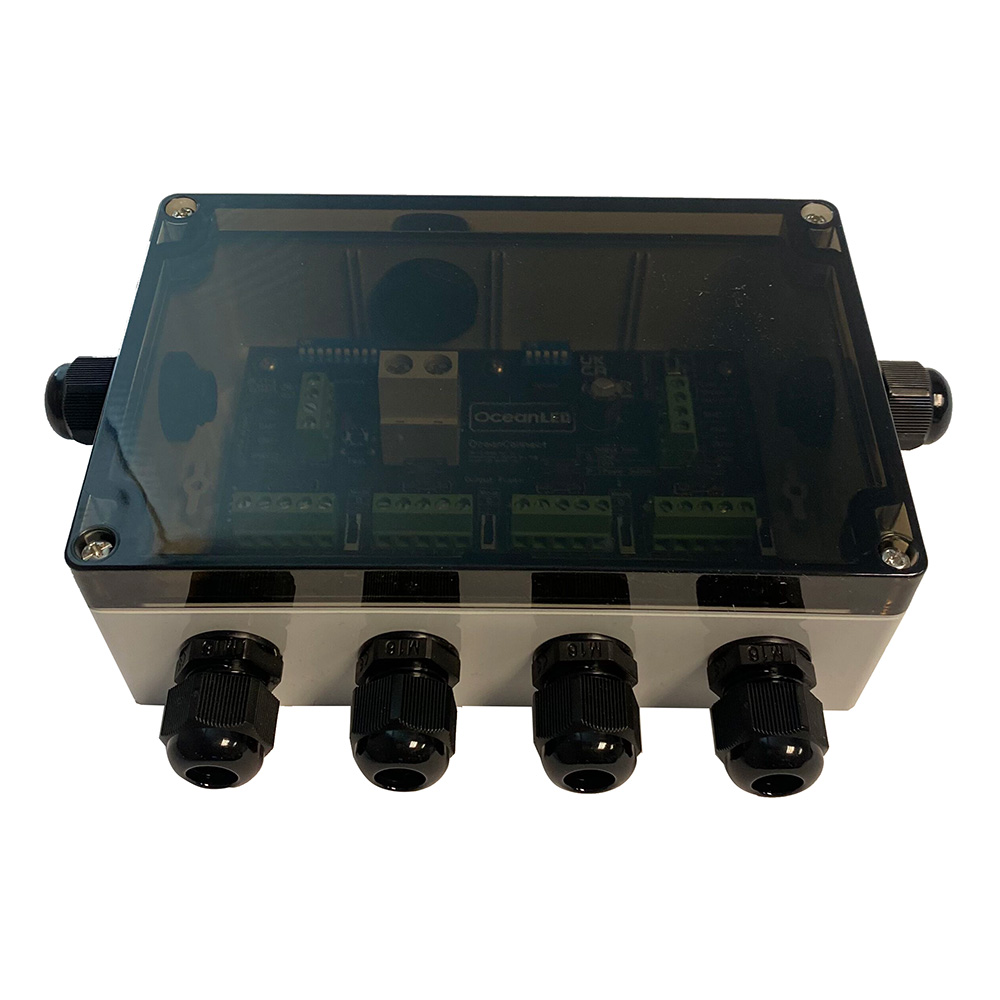

Ocean LED - OceanConnect Junction Box

Streamline Your Lighting with OceanLED OceanConnect Junction Box

Introducing the OceanConnect Junction Box, your all-in-one solution for seamless marine lighting control. This waterproof (IP66) and DMX-controlled junction box is designed for low-voltage DC (9–32V) applications, offering unparalleled ease in connecting and managing your DC-powered lights and devices. Whether you're aiming to illuminate your vessel with OceanLED's X-Series lights or integrate other DC-switched units, the OceanConnect Junction Box provides a reliable and efficient power distribution center that simplifies installation and enhances control over your lighting system.

• Waterproof IP66 rating ensures durability in harsh marine environments.
• Supports one power unit and four individually switched fused power outputs (6 amps per output).
• Compatible with up to four DMX-controlled OceanLED X-Series lights, allowing for individual addressing and control.
• Included in the box: OceanConnect unit with 4x 7.5A blade fuses, mounting screws, twin entry cable grommet, and blanking plugs.
• Easy integration with existing systems, thanks to DMX In/Out and multiple light output capabilities.

Technical Excellence for Advanced Lighting Solutions

The OceanConnect Junction Box is engineered to meet the demands of modern marine lighting systems, featuring robust input/output cable glands and versatile wire gauge compatibility. With dedicated terminals for power input, DMX control, and light outputs, it ensures a secure and efficient connection for all your lighting needs. The onboard DMX terminator with an on/off switch further simplifies the daisy-chaining of multiple junction boxes, providing a scalable solution for any size of vessel.

Durable and User-Friendly Design

Crafted from robust polycarbonate with an IP66 enclosure, the OceanConnect Junction Box is built to withstand the rigors of marine use while maintaining a compact and user-friendly design. Its dimensions (including cable glands) of 228mm x 174mm x 60mm (9"" x 6.8"" x 2.3"") and weight of 270g make it easy to install in a variety of locations on board. With the OceanConnect, you're not just installing a junction box; you're upgrading to a smarter, more connected lighting system.

Equip your vessel with the OceanLED OceanConnect Junction Box and experience the ease and convenience of advanced lighting control, designed specifically for the marine environment.
