Advanced Marine Thermal Imaging with Multispectral Vision

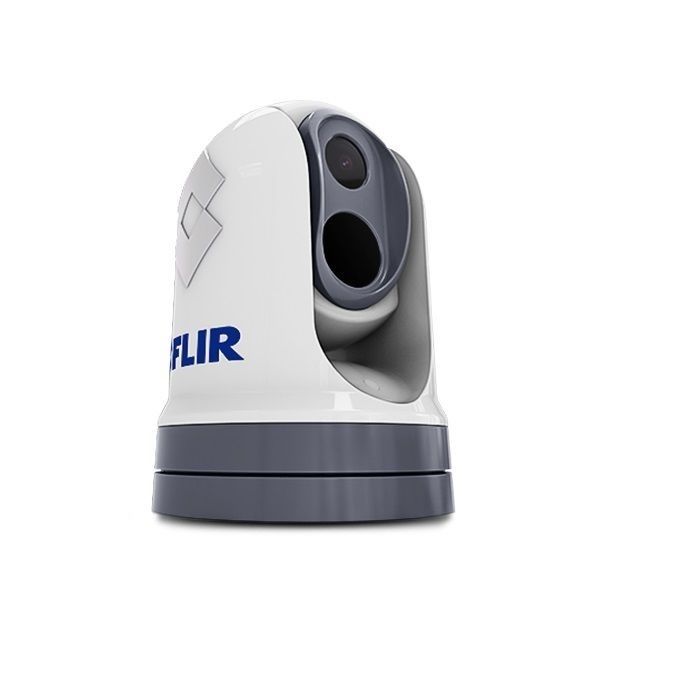

The FLIR Systems M364C LR is a high-performance dual-payload thermal camera designed to provide superior situational awareness on the water. Featuring state-of-the-art thermal imaging combined with a high-definition low-light camera, this system is engineered for law enforcement, commercial mariners, and serious recreational boaters.

Equipped with FLIR Systems’ exclusive Color Thermal Vision™ (CTV) technology, the M364C LR overlays visible camera details onto thermal images, offering unparalleled clarity in navigation and target identification. Enhanced gyro-stabilization ensures a steady view, minimizing disruptions caused by vessel movement, while long-range zoom capabilities enable precise recognition of navigation aids and other vessels.

Cutting-Edge Thermal and Visible Imaging Technology

• FLIR Systems Color Thermal Vision™ (CTV): Integrates visible spectrum details with thermal imaging for enhanced identification.
• MSX® Technology: Multi-Spectral Dynamic Imaging sharpens thermal visuals with edge detail and texture from the visible spectrum.
• High-Definition Low-Light Camera: Captures detailed imagery in challenging lighting conditions.
• 30x Optical Zoom for Daylight Imaging: Ensures exceptional clarity and long-range visibility.
• Two-Axis Mechanical Stabilization: Eliminates the impact of pitch, yaw, and heave for a steady image.

Technical Specifications

• Thermal Sensor: 640 x 512 VOx Microbolometer
• Field of View (Thermal): 24° x 18°
• Image Processing: Proprietary Digital Detail Enhancement
• Zoom Capabilities:Thermal: 8x continuous E-Zoom
• Visible Light: 30x optical zoom, 12x E-Zoom
• Daylight Camera Sensor: 1/2.8” Exmor R CMOS
• Daylight Camera Resolution: Up to 1080/30p high-definition video
• Minimum Illumination: As low as 0.0008 lux for superior night vision

Durability and Environmental Protection

• Water Ingress Protection: IPX6-rated, capable of withstanding heavy seas and power jets of water
• Shock Resistance: 15g vertical, 9g horizontal impact protection
• Wind Tolerance: Operational up to 100 knots (115.2 MPH)
• Operating Temperature Range: -13°F to +131°F (-25°C to +55°C)
• Storage Temperature Range: -30°F to +158°F (-30°C to +70°C)
• Salt and Sand Resistance: Built to withstand marine environments with IEC60945 and Mil-Std-810E compliance

Connections and Output Options

• Video Output: HD-SDI lossless video and H.264 network video stream
• Analog Video Output: NTSC/PAL user-selectable
• Connector Types: BNC for analog video

What's Included in the Box

• FLIR M364C LR Camera
• Camera base seal and gasket
• RayNet-to-RJ45 adaptor cable (120 mm)
• Right-angled RayNet-to-RayNet cable (3 m)
• Right-angled BNC-to-BNC cable (3 m)
• Right-angled 3-pin power cable (3 m)
• Mounting riser
• Camera fixings (nuts, dome nuts, washers, threaded studs)
• Self-adhesive decals (for ball-down mounting)
• Documentation pack

The FLIR M364C LR is an indispensable tool for those requiring high-performance thermal imaging, low-light visibility, and advanced stabilization in demanding marine conditions.
