Advanced CHIRP Technology for Superior Marine Performance

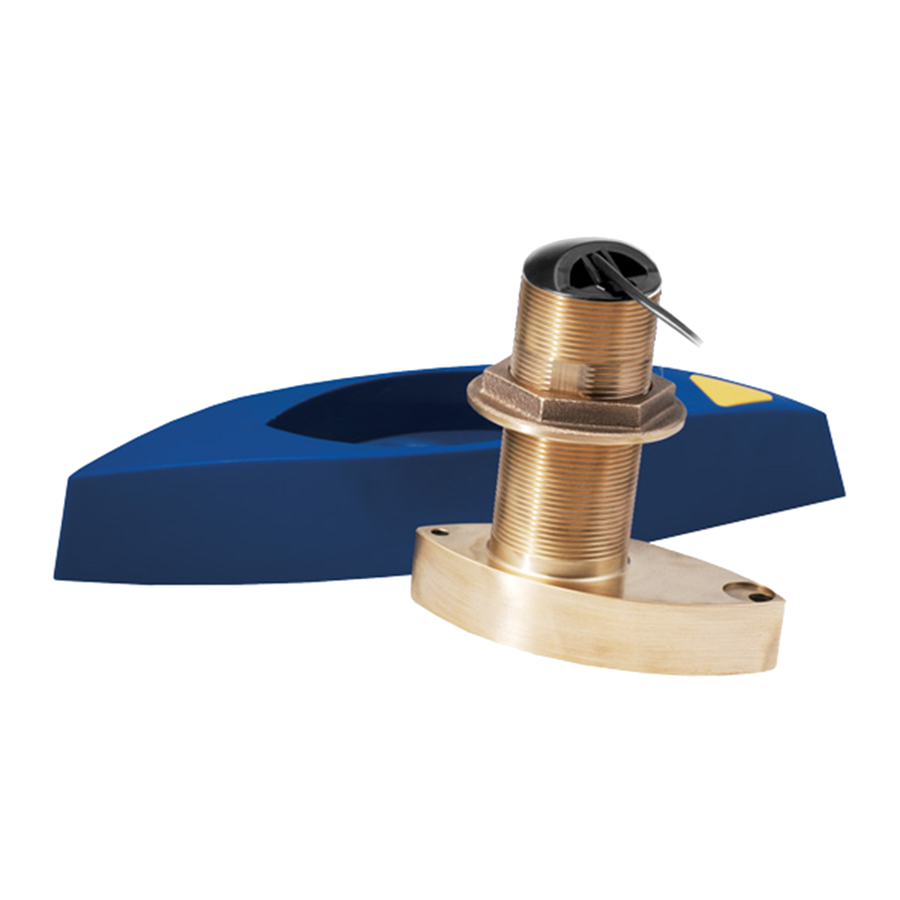

The Airmar B765C Low/High CHIRP Transducer is engineered for serious anglers and marine professionals who require precision and efficiency in their sonar systems. Designed to enhance fish-finding capabilities, this transducer utilizes advanced CHIRP technology to deliver superior target resolution, allowing users to differentiate between baitfish, game fish, and underwater structures with remarkable clarity.

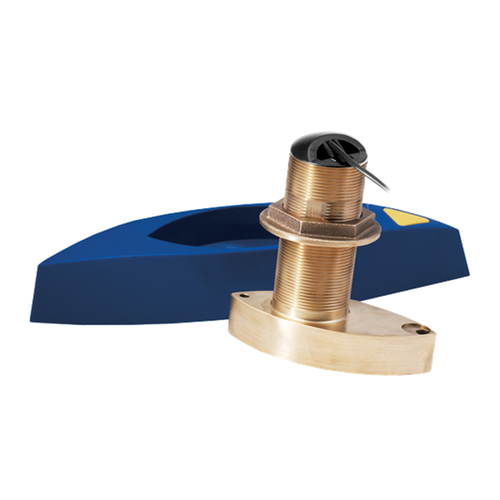

With a powerful frequency range, this thru-hull transducer provides deep-water penetration and high-resolution imaging, making it ideal for fishing and navigation in a variety of marine environments. Built with a durable bronze housing and equipped with a high-performance fairing, the B765C is optimized for smaller boats while offering the benefits of larger CHIRP transducers.

Exceptional Frequency Range and Performance

• Low CHIRP: Operates from 40 kHz to 75 kHz with a beamwidth of 32° to 21°, ensuring broad coverage and deep-water penetration.
• High CHIRP: Functions between 130 kHz and 210 kHz with a beamwidth of 15° to 9°, providing precise target separation and detailed imaging.
• Bandwidth Efficiency: Covers a total bandwidth of 115 kHz, including the popular 50 kHz and 200 kHz frequencies, allowing versatility across fishing conditions.

Durable Construction for Marine Conditions

• Bronze Housing: Robust and corrosion-resistant, ensuring longevity in saltwater environments.
• Thru-Hull Installation: Designed for fiberglass or wooden hulls, offering a secure and efficient mounting solution.
• High-Performance Fairing: Enhances transducer performance by optimizing beam angles and reducing turbulence.

Optimized for Various Boat Sizes

• Suitable for vessels up to 30 feet (9 meters) and larger.
• Exclusive Xducer ID® Technology enables seamless integration with compatible fishfinders and sonar systems.

Included Components

• B765C-LH-MM Transducer
• Fairing Block

Available Variations

• B765C-LH-MM: Equipped with an Airmar 12-Pin Connector.
• B765C-LH-12G: Features a Garmin 12-Pin Connector.

Designed for commercial fishermen, charter captains, and tournament anglers, the Airmar B765C-LH ensures maximum sonar performance with minimal installation hassle. With its wide frequency range and CHIRP technology, this transducer provides the clarity and accuracy needed for superior marine navigation and fish-finding.
