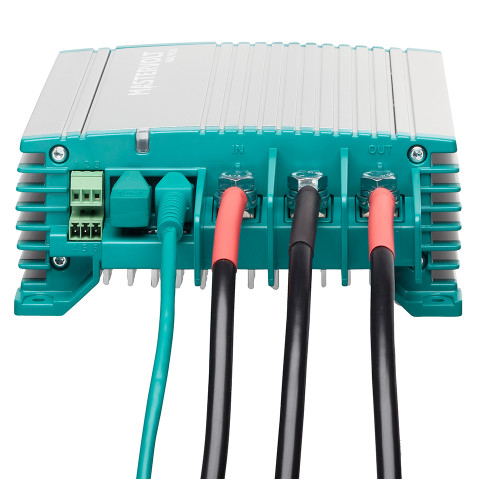

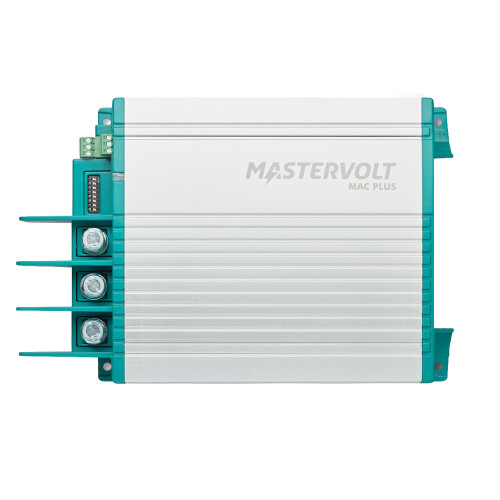

Mastervolt - Mac Plus + CZone

Power Redefined: Mastervolt Mac Plus 24/12-50 + CZone for Ultimate Charging

Revolutionize the way you charge your service battery with the Mastervolt Mac Plus 24/12-50 + CZone, a cutting-edge solution to the common challenges of slow and insufficient charging. Designed to counteract the inefficiencies of smart alternators and start/stop systems, the Mac Plus DC-DC charger guarantees a rapid, safe, and uniform charge, ensuring your service battery is always optimally powered. With the ability to detect engine operation and manage charging accordingly, the Mac Plus ensures that your starter battery remains unaffected. Embrace the proven Mastervolt 3-step+ charge algorithm for a swift and seamless charge, even for completely depleted batteries. Encased in robust aluminum housing, this charger promises exceptional resistance to harsh conditions while maintaining silent operation without the need for a fan. Offering versatility for all DC sources and compatibility with a range of battery chemistries, the Mac Plus is the epitome of power flexibility. Enhance system integration and performance with CZone®, NMEA 2000®, and MasterBus compatibility, providing superior monitoring and control.

• Fast, safe charging with engine run detection to protect starter battery
• Silent, fanless design for unobtrusive operation
• Compatible with a wide range of battery types, including lithium
• Supports Euro 5/6 alternators, stabilizing voltage for sensitive equipment
• Parallel operation capability for over 100 amps charging power
• Integrates with CZone®, NMEA 2000®, and MasterBus for advanced monitoring and control
• Temperature compensation and voltage sense for optimal charging
• E-Mark/R10 certified, suitable for mobile applications
• Power supply mode for stable power delivery to sensitive loads

Specifications & Highlights

Equipped with a battery temperature sensor and voltage sensing capabilities, the Mac Plus ensures your batteries are charged under optimal conditions. A status indicator LED communicates the charger's operation status at a glance, while compatibility with major communication protocols allows for seamless system integration. This charger stabilizes output voltage to protect sensitive onboard electronics and offers a power supply mode for critical applications, underlining its versatility and high performance.

Variants for Tailored Power Solutions

Available Variants Include:

• 81205205 - 24V / 750 W
• 81205305 - 12V / 725 W
• 81205405 - 24V / 850 W

Each variant is designed to cater to specific power requirements, ensuring that there is a Mastervolt Mac Plus solution for virtually any marine application. From enhancing the charge to your service batteries to integrating with the latest in vessel automation and control systems, the Mastervolt Mac Plus 24/12-50 + CZone is your gateway to unmatched electrical system performance.

Technical Excellence for Marine Environments

With dimensions of 255 x 165 x 66 mm (10.0 x 6.5 x 2.6 inch) and a weight of just 2 kg (4.4 lb), the Mac Plus combines compact efficiency with robust construction. Its advanced high-frequency technology ensures minimal power loss, making it a power-efficient choice for modern marine applications. Configure easily via MasterAdjust, CZone configuration tools, or onboard DIP switches, and enjoy the peace of mind that comes with installing Mastervolt's proven charging technology on your vessel.
