Superior RF Grounding for Marine Applications

The Newmar Power 12C Ground Plate is designed to provide an exceptional noise-free RF ground by making direct contact with water outside the hull. Ideal for marine applications, this ground plate ensures optimal performance in electronic and communication systems by minimizing interference.

Crafted from porous copper, the construction significantly enhances the contact area with water, maximizing efficiency. This ground plate is engineered for durability and long-term reliability, making it a crucial component for any marine vessel requiring superior grounding performance.

Technical Specifications

• Material: Porous copper for enhanced conductivity
• Hardware: Includes silicon bronze hardware
• Application: Designed for RF grounding (not intended for lightning protection)

Product Dimensions

• Inches: 12 x 3 x 0.5
• Centimeters: 30.5 x 7.6 x 1.3

Highlights

• Ensures excellent RF grounding for noise-free operation
• Porous copper material increases the contact surface area
• Includes corrosion-resistant silicon bronze hardware
• Specifically designed for marine and offshore applications

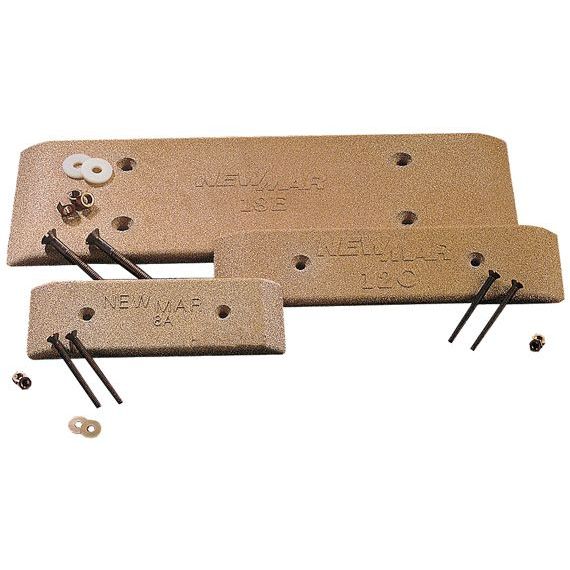

Variations Available

• 8A: 8 x 2.5 x 0.5 inches | 20 sq. ft. ground area | 3 lbs (1.4 kg)
• 12C: 12 x 3 x 0.5 inches | 40 sq. ft. ground area | 4 lbs (1.8 kg)
• 18E: 18 x 6 x 0.5 inches | 100 sq. ft. ground area | 11 lbs (5 kg)

This marine-grade grounding solution ensures reliability, efficiency, and enhanced RF performance for your vessel's electronics.
