Reliable Power for Marine and Recreational Applications

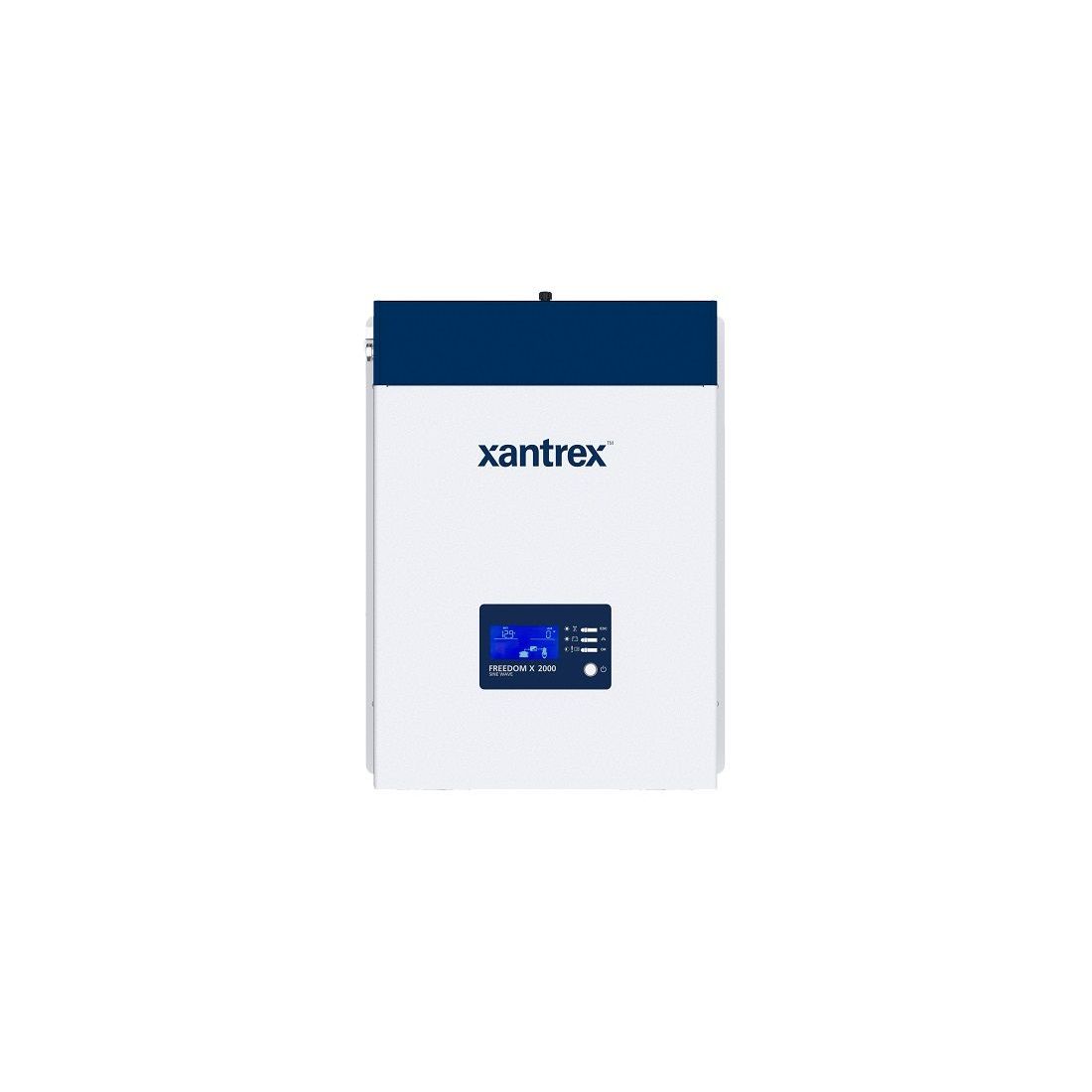

The Xantrex Freedom X2000-12 2000W 230V True Sine Wave Inverter delivers dependable AC power in marine and mobile environments. Designed to handle demanding loads, this inverter provides true sine wave output, ensuring compatibility with sensitive electronics and motor-driven devices. Its compact, lightweight design makes installation seamless, while advanced features such as an extended surge rating, ignition control, and a built-in transfer relay enhance functionality. Whether for recreational boats, commercial vessels, or off-grid applications, this inverter is built to perform in diverse conditions.

High-Performance True Sine Wave Output

The Freedom X2000-12 produces clean, true sine wave AC power, making it ideal for running appliances, tools, and sensitive electronics. This high-quality output reduces the risk of interference or damage to connected devices, ensuring smooth operation for both everyday and mission-critical applications.

Advanced Power Management Features

• Extended Surge Capability: Capable of surging to twice its continuous power rating (4000W) for at least 2 seconds, making it ideal for powering appliances with high startup loads such as refrigerators and microwaves.
• Ignition Control: Allows the inverter to be turned on or off with a 12V DC signal, helping to prevent unnecessary battery drain when the ignition is switched off.
• Wide Input Voltage Range: Operates within a 10V - 17V DC range, ensuring compatibility with high-voltage alternators found in modern vehicle and marine electrical systems.
• Built-in 30A AC Transfer Relay: Automatically switches between shore power or generator input and inverter output, providing seamless power continuity.

Technical Specifications

• AC Output Voltage Options: 220/230/240V
• Continuous Power Output: 2000W @ 40°C (True Sine Wave)
• Surge Power: 4000W (>2 seconds)
• Output Frequency: 50Hz (Configurable to 60Hz)
• DC Input Voltage Range: 10.0V - 17.0V
• Nominal DC Input Voltage: 12.0V
• Peak Efficiency: 91%
• Full Load Efficiency: >87.5%

Rugged and Durable Design

Built to withstand harsh marine conditions, the Freedom X2000-12 inverter operates reliably in extreme temperatures ranging from -20°C to 60°C. It is CE-marked and compliant with Low Voltage, EMC, and RoHS directives, ensuring safety and environmental compatibility. The unit is also designed for marine installations, featuring a drip shield for added protection.

Product Dimensions

• Without Flanges: 370mm x 275mm x 100mm
• With Flanges: 370mm x 305mm x 100mm
• Net Weight: 7.2 kg

Key Features at a Glance

• True sine wave AC power for sensitive electronics and motor loads
• Extended surge power for high-startup appliances
• Ignition control minimizes battery drain
• Wide 10-17V DC input range for enhanced compatibility
• Built-in 30A AC transfer relay for seamless power switching
• Compact and lightweight design for easy installation
• Bluetooth monitoring available with optional remote panel

What's in the Box

• Xantrex Freedom X2000-12 Inverter (230V)
• Documentation
• Plastic bushings for large DC cables
• Pre-installed DC earth enclosure lug
• Bonding screw

Ideal for marine, RV, and off-grid applications, the Xantrex Freedom X2000-12 inverter delivers reliable, high-quality power in a rugged, feature-packed design.
