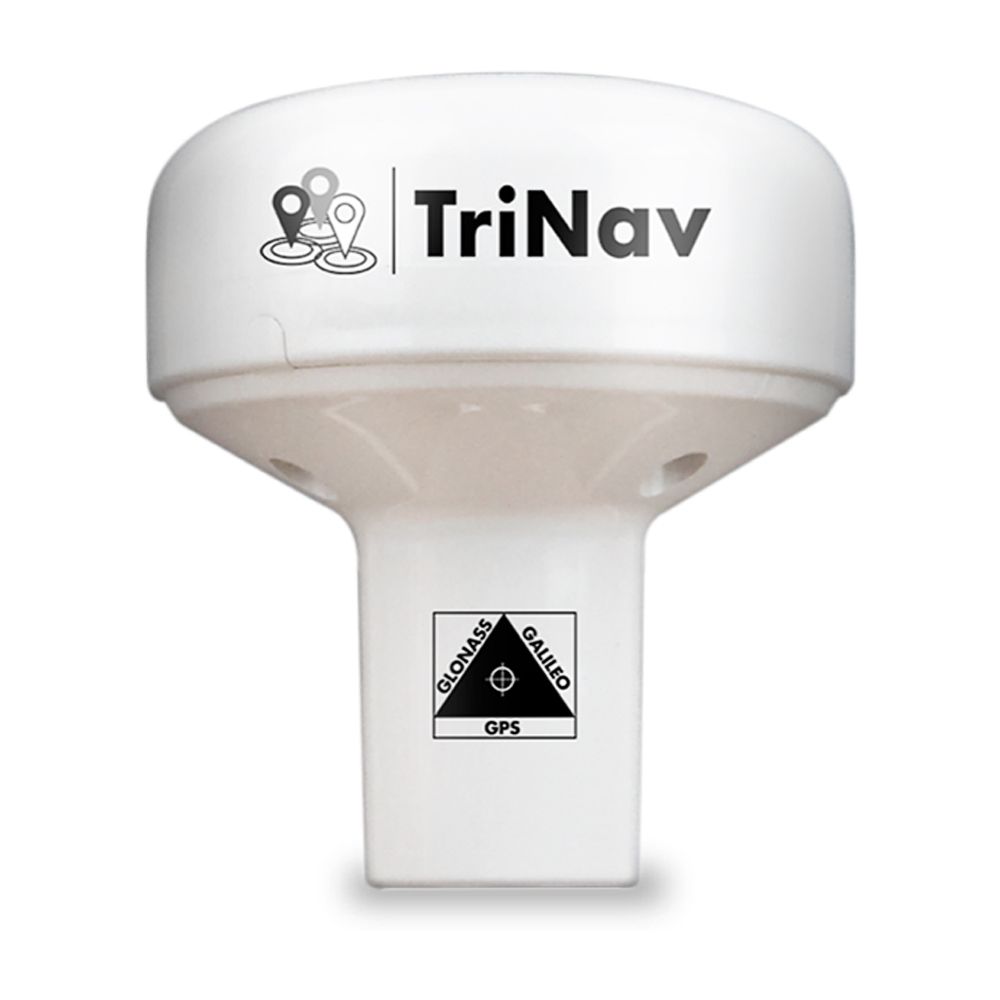

Advanced Multi-System Positioning with Digital Yacht GPS160 TriNav Sensor

The Digital Yacht GPS160 TriNav sensor is a high-performance GNSS positioning receiver designed for superior accuracy and reliability in marine environments. Leveraging advanced TriNav™ technology, this sensor integrates GPS, Galileo, and Glonass satellite systems, ensuring precise location tracking even in challenging conditions. With its robust interference rejection and anti-spoofing algorithms, the GPS160 provides reliable navigation for a range of applications, from recreational boating to professional marine operations.

Exceptional Accuracy and Performance

Equipped with a 72-channel GNSS receiver, the GPS160 achieves sub-1 meter positioning accuracy by combining data from multiple satellite systems. This enhances redundancy and mitigates signal vulnerabilities, ensuring uninterrupted navigation performance. The unit also supports user-configurable modes, allowing operation as a dedicated GPS, Galileo, or Glonass receiver if needed.

Flexible Data Output and Easy Configuration

The GPS160 offers multiple output formats and user-selectable baud rates, including 4800, 38400, and 115200, making it compatible with a wide range of marine electronics. A simple DIP switch configuration allows users to set update rates up to 18Hz for smoother real-time tracking on connected plotters. The device is also available in USB and NMEA 0183 versions, with an optional bundle that includes the iKonvert NMEA 2000 gateway for seamless integration into NMEA 2000 networks.

Man-Overboard (MOB) Functionality

A built-in MOB system input provides an added layer of safety. When activated, the GPS160 generates a synthesized AIS SART MOB message, instantly marking the location on compatible plotters. This feature ensures quick response and navigation assistance in emergencies.

Low Power Consumption and Versatile Installation

With an ultra-low power draw of less than 20mA at 12V DC, the GPS160 is ideal for continuous operation without excessive battery drain. The unit comes with a 10-meter cable and supports flexible installation options, including a puck-style mount or compatibility with industry-standard 1" x 14TPI threaded mounts.

Highlights

• Multi-GNSS positioning with GPS, Galileo, and Glonass support
• Sub-1 meter accuracy with TriNav™ technology
• Anti-spoofing and interference rejection for reliable navigation
• User-selectable update rates up to 18Hz
• Multiple NMEA 0183 output formats and baud rates
• MOB system input for emergency positioning alerts
• Low power consumption (<20mA at 12V DC)
• 10m cable included for flexible installation
• Compatible with NMEA 2000 via optional iKonvert gateway
• Available in USB and NMEA 0183 versions
