Lenco Marine - 102XD Extreme Duty Actuator - 12V - 4-1/4" Stroke

Reliable and Powerful Performance for Marine Applications

The Lenco 102XD Extreme Duty Actuator is designed for superior performance in demanding marine environments. With a 4.25-inch stroke and an overall length of 13 inches, this actuator is perfect for Trolling Tab systems sold after 2000 and various OEM applications. Crafted from high-impact glass fiber-filled, UV-resistant nylon material and 316 super buff stainless steel tubing, it offers exceptional durability and reliability.

Key Features for Enhanced Marine Functionality

The Lenco 102XD Actuator is engineered to deliver unmatched power and reliability. Its advanced design includes an Anti Extrusion Ring (AXR) seal stabilization system, stronger top cap, and mounting clevis design, ensuring long-lasting performance. This actuator stands out with its ability to easily push 500 pounds, making it twice as powerful as typical hydraulic systems.

• Exceptional Durability: Constructed with high-impact glass fiber-filled, UV-resistant nylon and stainless steel tubing.
• Advanced Seal System: Features the newly implemented Anti Extrusion Ring (AXR) seal stabilization system and improved O-Ring design for a consistent seal.
• High Torque Performance: Equipped with a tough, high-torque actuator motor that pushes up to 500 pounds.
• Waterproof Connections: Utilizes waterproof "Plug & Play" Deutsch connectors to prevent water intrusion.
• Easy Installation: Comes with 5/16" mounting hardware and a 6-foot cable for straightforward setup.

Specifications

• Voltage: 12V
• Stroke Length: 4.25 inches
• Overall Length: 13 inches
• Mounting Hardware: 5/16"
• Cable Length: 6 feet

Technical Excellence for Marine Applications

• Seal Stabilization: Anti Extrusion Ring (AXR) seal system ensures stability and durability.
• Enhanced Design: Features a stronger top cap, improved pressure-tight torx screws, and an integrated wiper seal at the actuator base.
• Reliable Construction: Molded-in brass thrust bearing design, thicker motor housing wall, and over-molded cable for a tighter seal.
• Upper Mounting Bracket: Includes a gland seal for secure mounting.

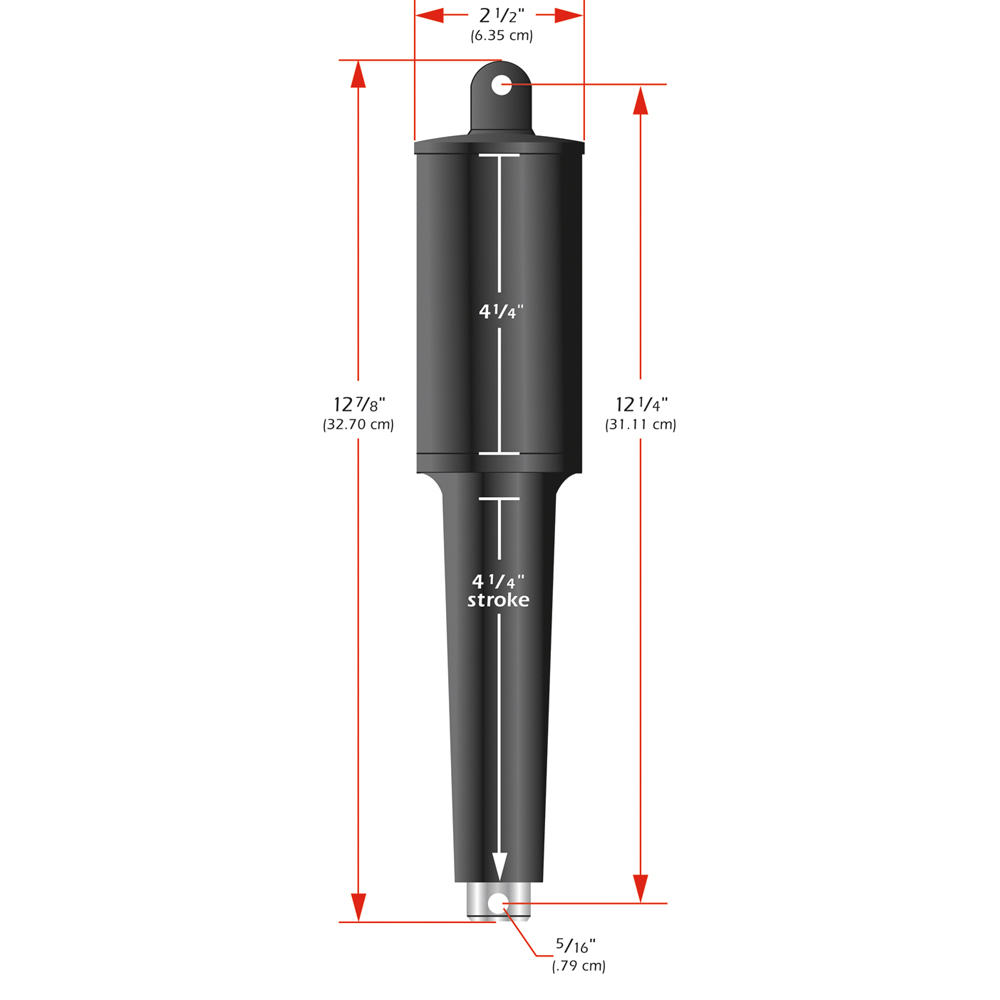

Product Dimensions

• Stroke Length: 4.25 inches
• Overall Length: 13 inches
• Cable Length: 6 feet

Highlights of the 102XD Extreme Duty Actuator

• Superior Power: Lenco's ballscrew design offers twice the power of typical hydraulics.
• Durable and Resilient: High-impact, UV-resistant materials ensure long-lasting performance.
• Easy Installation: Waterproof connectors and robust mounting hardware make installation simple and secure.
• Reliable Performance: Engineered for consistent performance in demanding marine environments.
