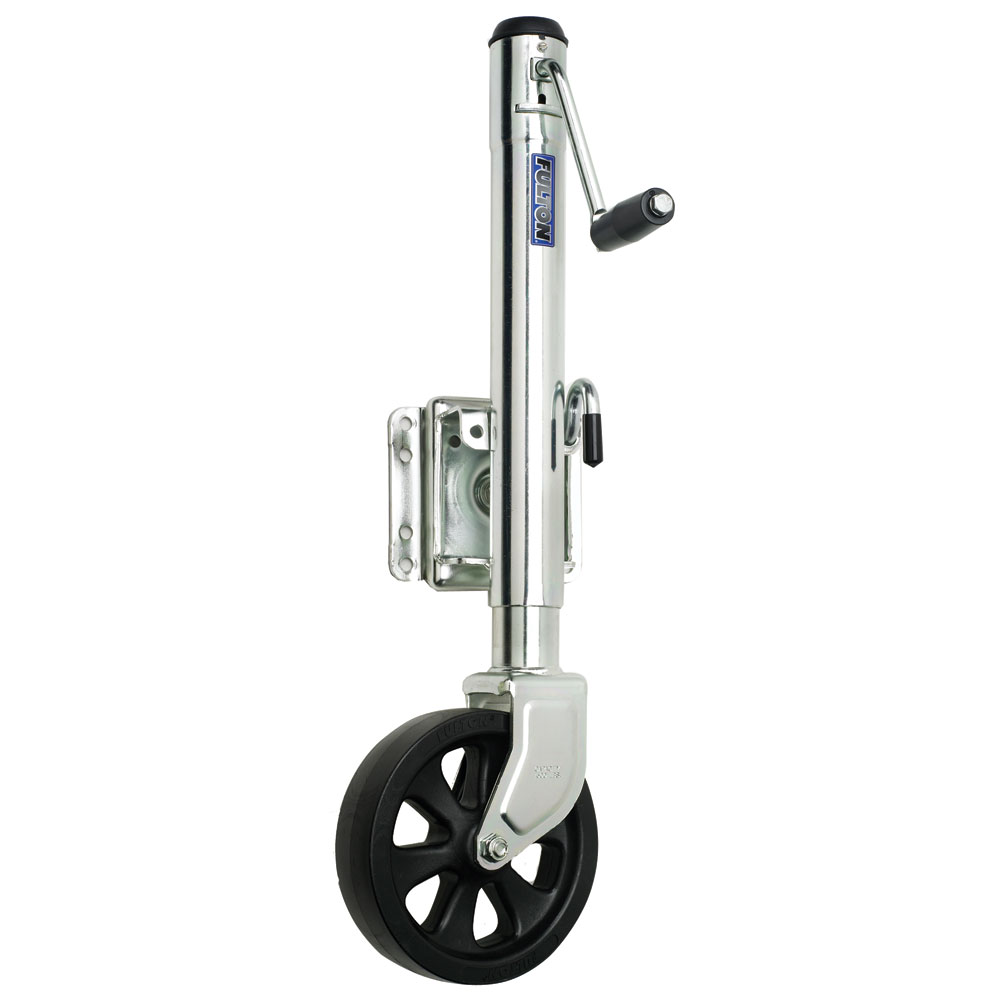

Fulton - Single Wheel - Bolt-Thru Swivel Jack - 1,500 lbs

High-Performance Marine and Recreational Jack for Optimal Trailer Support

The Fulton Single Wheel 1,500 lbs. Bolt-Thru Swivel Jack is a top-of-the-line marine and utility trailer jack designed to provide reliable, robust support. Featuring advanced construction and innovative materials, this jack is built to withstand the toughest conditions, ensuring ease of use and long-lasting performance for all your marine and recreational needs.

General Description

Engineered for use with marine and utility trailers, the Fulton Single Wheel 1,500 lbs. Bolt-Thru Swivel Jack boasts a time-tested, application-proven design. Its robust construction features zinc coating and an 8" diameter caster, providing excellent stability and durability. The bolt-on version includes all necessary mounting hardware for a hassle-free installation. The heavy-gauge steel stampings and proprietary bushing material used in the swivel mounts ensure minimal deflection and maximum support, fitting trailer frames up to 3" x 5".

Key Features and Benefits

• High Load Capacity: Supports up to 1,500 lbs., making it ideal for various marine and utility trailers.
• Durable Construction: Heavy-gauge steel construction and zinc coating for enhanced durability and corrosion resistance.
• Easy Installation: Bolt-on version includes all necessary mounting hardware for straightforward installation.
• Stable and Reliable: Proprietary bushing materials and 3-D formed steel stampings provide minimal deflection and maximum support.
• Versatile Fit: Designed to fit trailer frames up to 3" x 5".

Technical Specifications

• Handle Style: Sidewind
• Retracted Height: 12.75"
• Extended Height: 22.75"
• Clearance: 12.5"
• Caster Diameter: 8"
• Pull Pin Diameter: 1/2"
• Construction Material: Zinc with heavy-gauge steel stampings

Dimensions

• Retracted Height: 12.75"
• Extended Height: 22.75"
• Clearance: 12.5"
• Caster Diameter: 8"
• Pull Pin Diameter: 1/2"

Finishes

• Zinc Coating: Provides excellent corrosion resistance and long-lasting durability in marine environments.

Highlights

• Proven Design: Fulton brand tongue jacks are known for their dependable performance and application-proven design.
• Robust Construction: Heavy-gauge steel and proprietary bushing materials ensure long-term stability and support.
• Easy to Use: Sidewind handle and bolt-on installation make it user-friendly and efficient.
• Versatile Application: Suitable for various marine and utility trailers, fitting frames up to 3" x 5".
