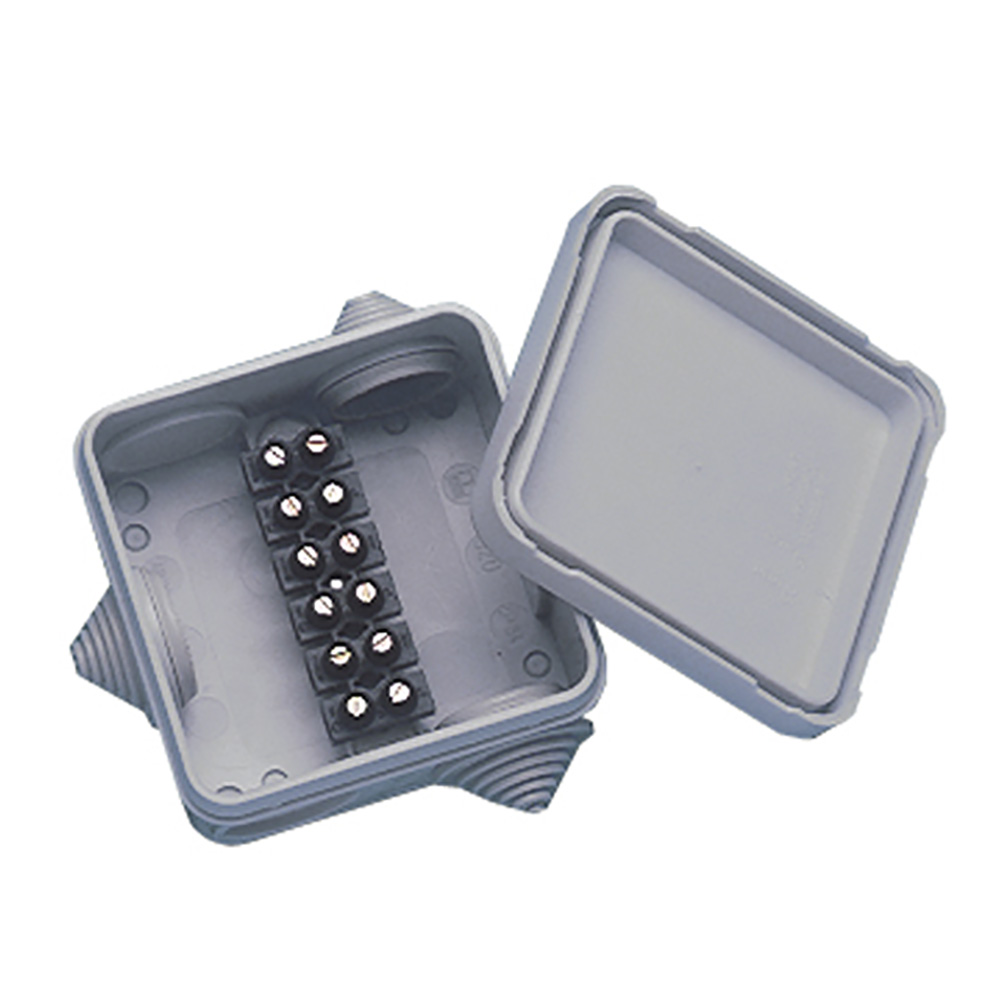

Newmar Power - PX-1 Junction Box

Secure and Reliable Marine Wiring Connections

The Newmar PX-1 Junction Box is designed to provide waterproof and secure wiring connections for both above and below deck installations. Perfect for areas exposed to occasional spray, this junction box ensures your electrical systems remain safe and operational in all marine environments.

General Description

The Newmar PX-1 Junction Box offers a robust and waterproof solution for protecting your vessel’s wiring connections. Made from high-impact polypropylene, it is designed to withstand harsh marine conditions without corroding. The snap-on cover provides a watertight seal, ensuring that water projected in jets from any direction will not compromise the internal connections, meeting the IEC IP55 waterproof rating.

Key Features

• Waterproof Design: Rated IP55, providing reliable protection against water projected in jets from any direction.
• Durable Construction: Made from rugged, non-corrosive, high-impact polypropylene for enhanced durability.
• Secure Wiring: Molded nylon connector strips with screw compression terminals ensure secure wire connections without the need for lugs.
• Easy Access: Features multiple knockouts for conduit access and universal cut-to-fit cable entries for a wide range of cable sizes.
• Compliance: Meets ABYC standards, ensuring safe and reliable marine installations.

Technical Specifications

• Number of Connector Strips: 1
• Positions per Strip: 6
• Maximum Wire Gauge: 16
• Number of Cable Entry Ports: 5
• Number of Cable Entries Installed: 3
• Spare Cable Entries Provided: 2
• Cable Diameter Range:
• Inches: .14 – .81
• Millimeters: 3.5 – 20.5
• Box Size:
• Inches: 2.95 x 2.95 x 1.66
• Centimeters: 7.5 x 7.5 x 4.2

Product Dimensions

The PX-1 Junction Box's compact dimensions (2.95 x 2.95 x 1.66 inches) make it an ideal choice for various marine applications. Its small size allows for versatile installation in tight spaces while ensuring robust protection for your wiring connections.

Highlights

• Waterproof Protection: Ensures wiring connections remain secure and dry, even in spray-prone areas.
• Durable and Long-Lasting: High-impact polypropylene construction provides long-term durability and resistance to corrosion.
• Secure Connections: Brass barrel connectors with stainless steel compression fittings ensure reliable and safe wiring connections.
• Versatile Installation: Multiple knockouts and cable entry ports allow for flexible and easy installation.

Application and Usage

Ideal for use in wheelhouses, below decks, and engine rooms, the Newmar PX-1 Junction Box is a versatile solution for any marine vessel requiring waterproof and secure wiring connections. Its robust design and waterproof rating make it a reliable choice for maintaining the integrity of your electrical systems in harsh marine environments.
