Advanced Navigation and Fishing Technology

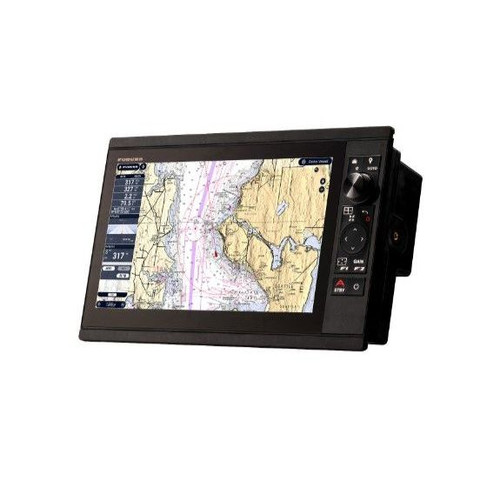

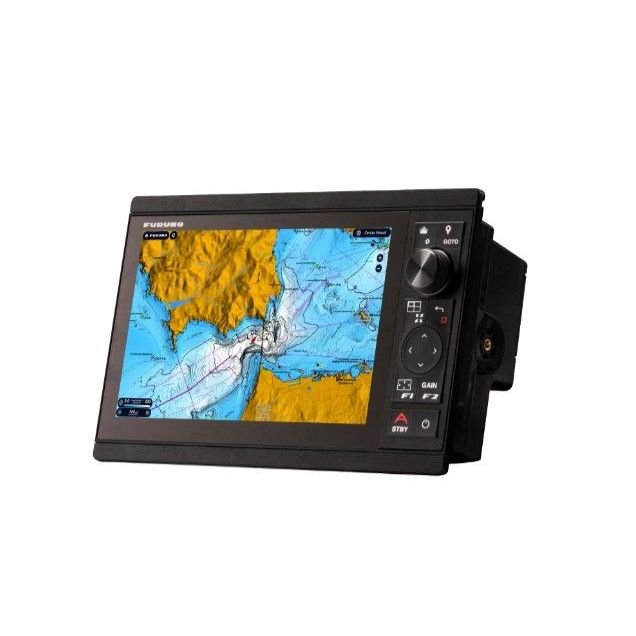

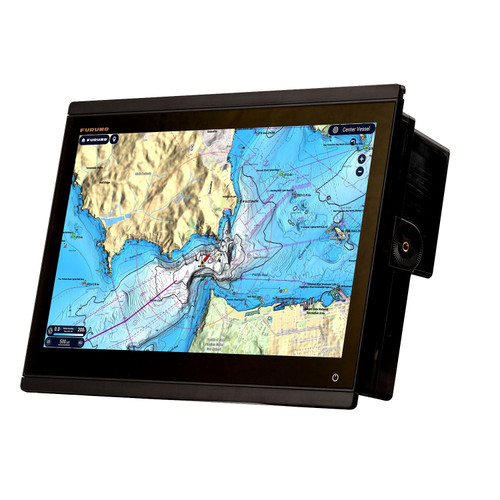

The Furuno TZtouchXL series redefines marine navigation with cutting-edge technology designed for superior performance on the water. Featuring all-glass multifunction displays in sizes ranging from 10" to 24", these high-resolution IPS panels deliver unparalleled clarity from any angle. Whether you're navigating open waters or tracking fish with precision, the TZtouchXL offers a powerful and intuitive user experience.

Equipped with a hexacore processor, this system ensures rapid responsiveness, while its new TZ MAPS feature provides highly detailed navigation and fishing charts. Built-in CHIRP Fish Finder technology, Side-Scan sonar, and optional radar integrations make the TZtouchXL a versatile and indispensable tool for marine professionals and enthusiasts alike.

High-Performance Technical Features

• TZ MAPS with BathyVision: Offers ultra-detailed bathymetric data and customizable color themes for enhanced navigation.
• Dual Channel 1kW TruEcho CHIRP™ & CW Fish Finder: Ensures precise fish detection with high-resolution imaging.
• Built-in CHIRP Side-Scan: Provides detailed imaging of underwater structures on both port and starboard sides.
• AI Routing & Risk Visualizer™: Intelligent route planning with real-time hazard assessment.
• Radar Compatibility: Supports magnetron and Solid-State Doppler Radar models for enhanced situational awareness.
• Seamless Connectivity: Includes NMEA2000, NMEA0183, LAN, USB, SD card slot, and wireless LAN support.

Product Dimensions

• Screen Sizes Available: 10", 13", 16", 22", and 24"
• Screen Resolution: Full HD 1920x1080 (10", 13", 16") | WUXGA 1920x1200 (22", 24")
• Screen Brightness: 900 cd/m² (typical)

Available Finishes

• All-Glass Multi-Touch IPS Display: Sleek, frameless design for maximum visibility and modern aesthetics.

Key Highlights

• Intuitive touchscreen interface with edge-swipe navigation
• Customizable user objects and chart updates via TimeZero Cloud
• AI-assisted collision avoidance with Risk Visualizer™ and AI Avoidance Route™
• CHIRP Side-Scan sonar for high-definition underwater imaging
• Compatibility with a wide range of Furuno Radars and transducers
• Waterproof IP56-rated for durability in harsh marine environments

Variants and Display Options

• TZT-10X: 10" Display
• TZT-13X: 13" Display
• TZT-16X: 16" Display
• TZT-22X: 22" Display
• TZT-24X: 24" Display

The Furuno TZtouchXL series is engineered for captains who demand precision, performance, and seamless integration of advanced marine technology. Whether you're exploring, fishing, or cruising, this multifunction display enhances every journey on the water.
