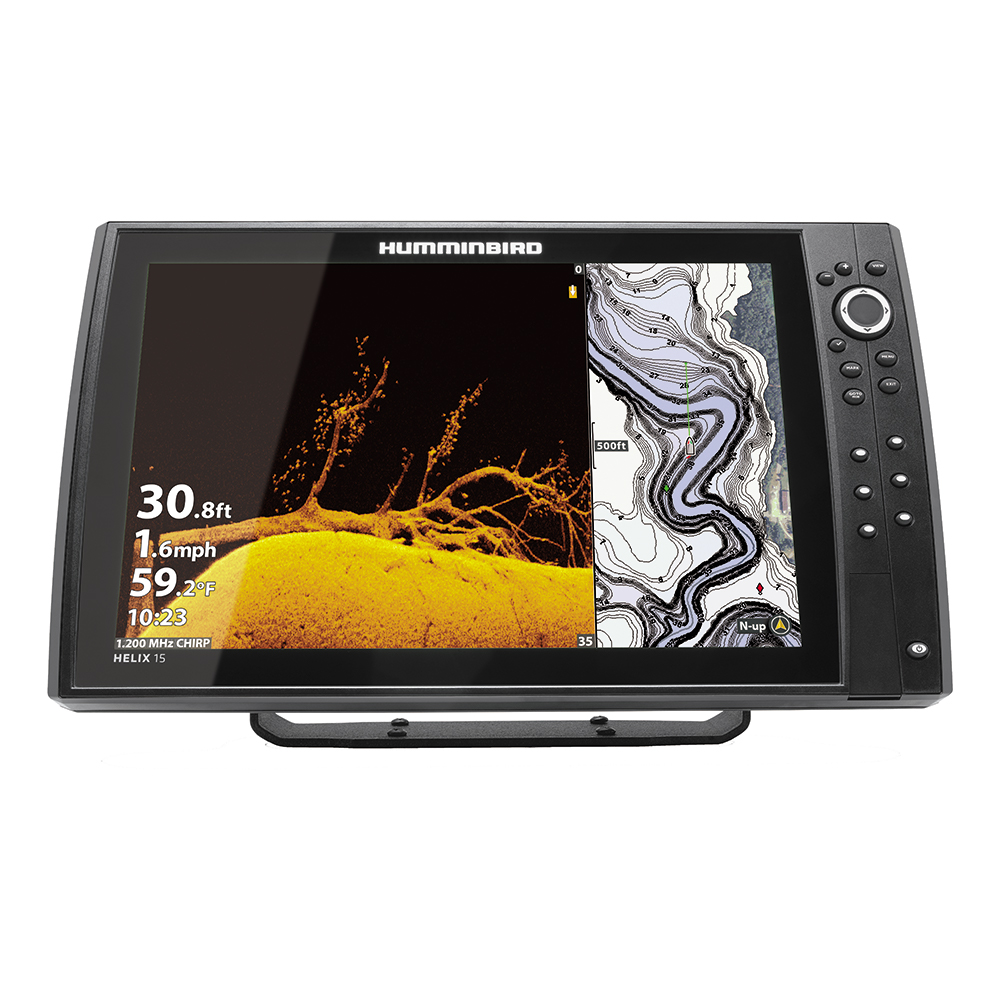

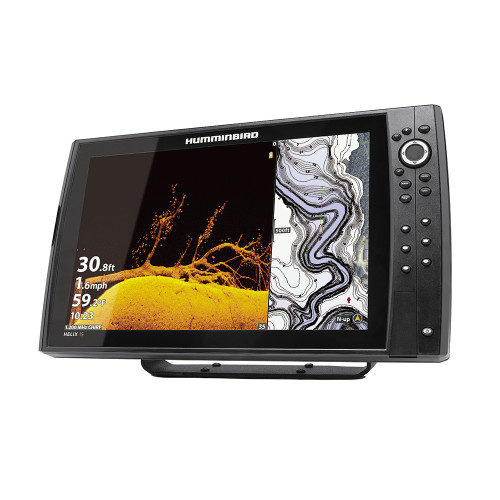

Humminbird - HELIX 15 GPS G4N Display Sonar

Discover Superior Clarity and Precision

The Humminbird HELIX 15® CHIRP MEGA DI+ GPS G4N CHO is designed to offer the most advanced sonar imaging and navigation features for dedicated anglers. With a stunning 15.4" display, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar, and an internal GPS with Humminbird Basemap, this fish finder ensures you have the best technology to explore and conquer the waters. This CHO (Control Head Only) model allows you to select the ideal accessory transducer for your specific needs.

Advanced Features for Enhanced Fishing Adventures

Packed with advanced features, the HELIX 15® CHIRP MEGA DI+ GPS G4N CHO is an essential tool for any serious angler. From crystal-clear imaging to seamless integration with other marine devices, this fish finder provides everything you need to enhance your fishing experience.

Key Features:

• Control Head Only Model: Customize your setup by selecting the best transducer for your needs. Ideal for connecting to Built-in MEGA Imaging on Minn Kota trolling motors or accessory transducer options like MEGA 360 Imaging, or sharing sonar data from an existing Humminbird Ethernet network.
• Keypad Control: Effortlessly operate the fish finder with user-friendly soft key controls, ensuring reliable performance in any condition.
• MEGA Side Imaging+: View the underwater world with unparalleled clarity, extending up to 200 feet on either side of your boat, offering 20% more detail and 60% more range capability than standard MEGA Side Imaging sonar.
• MEGA Down Imaging+: Achieve unprecedented underwater clarity down to 200 feet, with 20% more detail and 60% more depth capability than standard MEGA Down Imaging sonar.
• Dual Spectrum CHIRP Sonar: Obtain highly-detailed fish arches and clear views of fish-holding structures with two search modes: wide mode for maximum coverage and narrow mode for focusing on specific details.
• Internal GPS and Humminbird Basemap: Navigate confidently with detailed charts of over 10,000 lakes and coastal coverage for the continental U.S., including buoys, markers, hazards, and marinas.
• Premium Chart Compatibility: Compatible with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as Navionics® charts for a comprehensive underwater view.
• AutoChart Live: Create real-time maps of your fishing spots, including depth contours, bottom hardness, and vegetation. Comes with eight hours of built-in recording time and is compatible with AutoChart Zero Line SD cards.
• One-Boat Network™ Compatibility: Integrates seamlessly with Minn Kota and Cannon products for enhanced control and functionality.
• Ethernet Networking: Build a powerful fishing system by connecting multiple fish finders and add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
• Bluetooth Connectivity: Control Talon and Raptor shallow water anchors and Cannon Optimum downriggers directly from the screen. Supports wireless software updates and smartphone notifications.
• NMEA 2000 Networking: Connect to an accessory network for comprehensive boat performance data, weather, and water conditions.

Technical Specifications

Technical Specifications:

• Series: HELIX
• Display Size: 15.4 inches
• Display Resolution: 1280H x 800V
• Sonar Capabilities: Dual Spectrum CHIRP / MEGA Down Imaging+ / MEGA Side Imaging+
• Sonar Coverage: 20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB
• CHIRP Frequencies Supported: Full Mode (150-220 kHz) / Narrow Mode (180-240 kHz) / Wide Mode (140-200 kHz)
• Sonar Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz
• Depth-Sonar: 1,200 ft (standard transducer) / 3,500 ft (optional 50 kHz)
• Memory Card Slot: Dual SD
• Power Draw: 3.2 Amps
• Power Input: 10.8-20 VDC
• Power Output Peak-to-Peak: 8000 Watts
• Power Output RMS: 1000 Watts
• Mounting Dimensions (Standard): 14.86 in W x 8.83 in H x 4.25 in D
• Mounting Dimensions (Optional): 14.86 in W x 8.52 in H x 1.36 in D
• Weight: Not specified
• Warranty: Two-Year Limited Warranty

Seamless Integration and Versatile Compatibility

Product Dimensions:

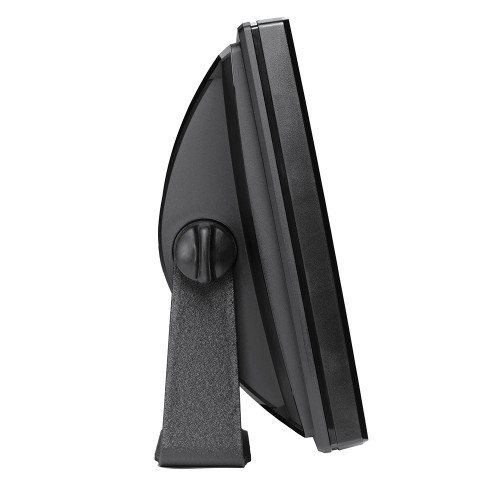

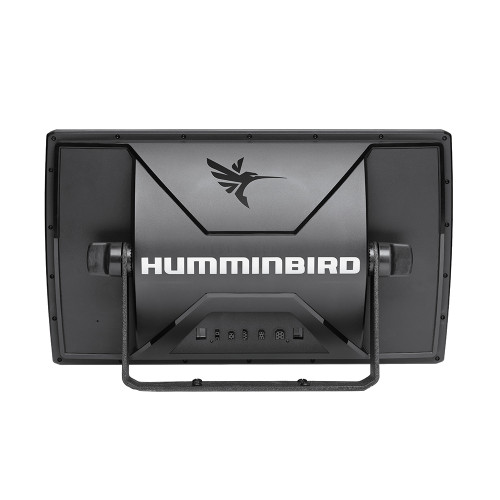

• Mounting Options: Standard gimbal mount and optional in-dash mounting kit available for flexible installation.

Available Variations

Variations List:

• With Transducer No: Ideal for those who wish to customize with their own transducer or connect to existing networks.
• With Transducer Yes: Includes a transducer for a complete setup.

Enhance Your Fishing Adventures

Highlights:

• Comprehensive Connectivity: Seamlessly integrates with the One-Boat Network™, allowing for enhanced control and connectivity with Minn Kota and Cannon products.
• High-Speed Ethernet: Build a professional-grade fishing system by connecting multiple fish finders and add-on technologies.
• Bluetooth Features: Control shallow water anchors and downriggers, receive software updates, and view smartphone notifications.
• Real-Time Mapping: Utilize AutoChart Live for real-time map creation, including depth contours, bottom hardness, and vegetation.

Equip your vessel with the Humminbird HELIX 15® CHIRP MEGA DI+ GPS G4N CHO and experience unparalleled sonar clarity and control. Whether you're exploring new waters or targeting specific fish, this fish finder will enhance your fishing adventures and help you make the most of your time on the water.
