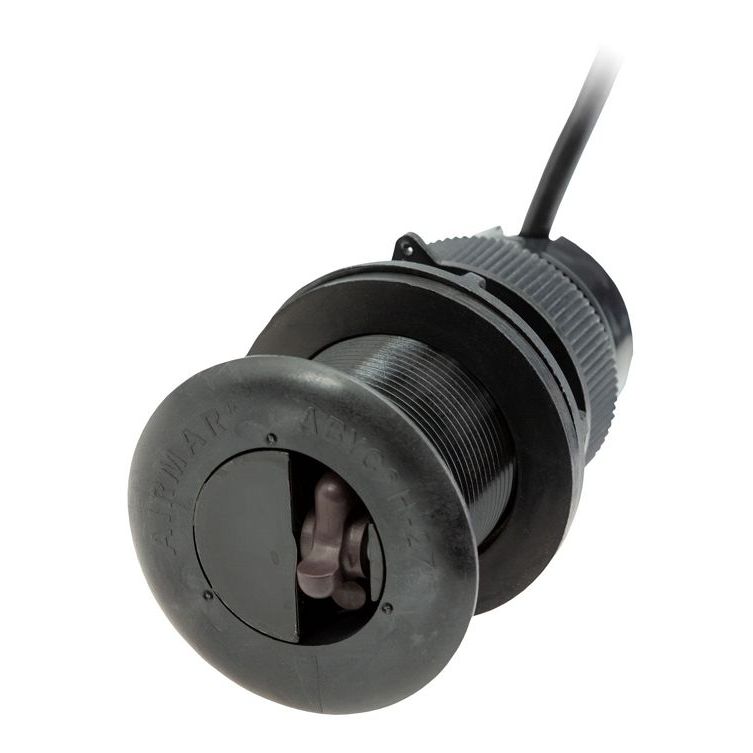

Furuno - DST810PSF NMEA 2000 Airmar Smart Transducer - Plastic Thru Hull

Sold out

Furuno - DST810PSF NMEA 2000 Airmar Smart Transducer - Plastic Thru Hull

(No reviews) Write a Review
$350.00
SKU: APL506689
MPN: DST-810PSF
UPC: 611679391483

Out of stock

Advanced Depth, Speed, and Temperature Sensing

The Furuno DST810PSF NMEA 2000 Airmar Smart Transducer is a cutting-edge multisensor designed for seamless integration into marine navigation systems. Engineered for high accuracy and durability, this plastic thru-hull transducer operates at 235 kHz, providing reliable depth, speed, and water temperature measurements. With its innovative attitude sensor, it also offers heel and trim data, making it an excellent choice for both sailing and powerboats.

Superior Speed Accuracy and Real-Time Data

Equipped with a 5 Hz speed output, the DST810PSF ensures smoother and more responsive speed-through-water readings, updating five times per second for better decision-making at sea. The advanced speed calibration feature allows manual speed inputs for various heel angles and up to ten different speeds—capabilities previously only available through specialized PC software.

Seamless Integration with NMEA 2000®

This smart transducer is designed to store configurations and effortlessly deliver data to the NMEA 2000® network, ensuring smooth compatibility with modern marine electronics. Whether monitoring depth, heel-corrected speed, trim, or water temperature, the DST810PSF provides comprehensive data from a single, reliable device.

Optimized for Shallow and Deep Water Performance

Designed for superior shallow water performance, this transducer features a minimum depth range of 0.5 meters (1.6 feet) and can measure depths up to 100 meters (330 feet), making it an excellent choice for a wide range of marine applications.

Technical Specifications

  • Acoustic Window: Urethane
  • Hull Deadrise Compatibility: Up to 22°
  • Depth Frequency: 235 kHz
  • Minimum Depth Range: 0.5 m (1.6')
  • Maximum Depth Range: Up to 100 m (330') – NMEA 2000®
  • Speed Range: Up to 45 knots
  • Data Update Rate: Depth - 1X/second | Speed - 5X/second
  • Attitude Accuracy: ±1° nominal after sensor calibration
  • Pressure Rating: 3 m (10')
  • Pulse Rate: 20,000 p/nm (5.6 Hz per knot)
  • Supply Voltage: 9 VDC to 16 VDC – per NMEA 2000®
  • Supply Current: <200 mA – per NMEA 2000®
  • Wireless Protocol: Bluetooth Low Energy (BLE)
  • Wireless Range: Up to 30 feet (depending on mount location)
  • Standard Cable Length: 6 m (20') DeviceNet – NMEA 2000®
  • Temperature Sensor Accuracy: ±0.5°C (±1.8°F)
  • Temperature Sensor Range: -10°C to 40°C (14°F to 104°F)
  • NMEA 2000 Load Equivalency Number (LEN): 3

Product Dimensions

  • Cable Length: 6 m (20')

Highlights

  • Provides accurate depth, speed, heel, trim, and water temperature data in one compact unit
  • 5 Hz speed output for smoother, more responsive speed readings
  • Integrated attitude sensor enhances sailing and powerboat performance
  • Advanced Speed Calibration for precise speed adjustments at different heel angles
  • Bluetooth Low Energy (BLE) connectivity for seamless wireless data transfer
  • Designed for shallow water operation with a reliable 235 kHz frequency
  • Compatible with NMEA 2000® networks for easy system integration

What's in the Box

  • DST-810 Insert
  • Plastic Housing

This high-performance marine transducer is an essential tool for serious boaters, offering enhanced accuracy, real-time updates, and seamless system compatibility.

Condition: New
Power Consumption: N/A
Operating Voltage: N/A
Frequency Response: 235kHz
Product Color: Black
Product Material: Polyurethane
Product Type: Transducer
Display: No
