Dive Deeper with HDS PRO 10

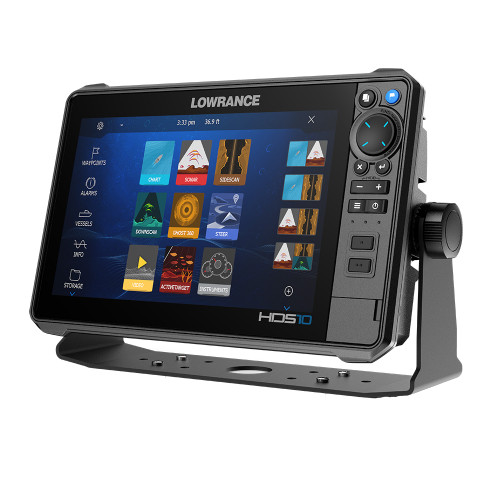

Introducing the HDS PRO 10 fishfinder/chartplotter - your window into the aquatic world below. Now, watch the marine life react to your lure in real-time and spot fishes and structures like never before. Say goodbye to the usual guessing games and hello to high-definition clarity.

Key Features at a Glance

• Support for high-resolution ActiveTarget® 2 Live Sonar
• Ultra-high-definition Active Imaging™ with HD Transducer
• Quickly locate prime fishing areas with preloaded C-MAP® DISCOVER OnBoard charts
• Full fishing system networking for comprehensive boat control
• SolarMAX™ HD Touchscreen - clear views from any angle

What’s in the Box?

A complete package to elevate your fishing game:

• HDS PRO fishfinder/chartplotter (10-inch display screen)
• C-MAP DISCOVER OnBoard (Preloaded)
• Lowrance Active Imaging HD 3-in-1 Transducer

Transducer Specifics

The Lowrance Active Imaging HD 3-in-1 Transducer offers:

• Crystal clear high definition (up to 1.2MHz) SideScan and DownScan Imaging™
• Lowrance® CHIRP for impeccable clarity and target differentiation
• FishReveal™ DownScan view for easier fish spotting
• Compatibility with various Lowrance devices and modules

Display Specs that Matter

Your clear window to the underwater:

• Backlight Color: Pure white LED
• Display Resolution: 1280 x 720
• Viewing Angles: 80° top/bottom, 80° left/right

Seamless Connectivity

Stay connected, always:

• Integrated Bluetooth 4.0 support
• 2 Ethernet Ports for max MFD's on a network
• Internal WiFi and compatibility with WiFi-1 Module
• NMEA 2000 Connectivity and SD Card Storage

Power and Electricals

• Max Power Consumption: 2.9A @ 13.8VDC
• Recommended Fuse Rating: 3A
• Supply Voltage: 12 v DC (10.8-17VDC)

Optimal Operating Conditions

• Operating Temperature Range: 5°F to 131°F
• Storage Temperature Range: 4°F to 140°F

GPS Dynamics

• GPS Receiver Channels: 16
• Update rate: 10 Hz

All About the Multi-Function Display (MFD)

• Cartography included for various models
• Internal Storage: 8.0 GB
• Waypoints, Routes, Tracks capacity
