Superior Marine Sonar Performance with Ultra-Wide Coverage

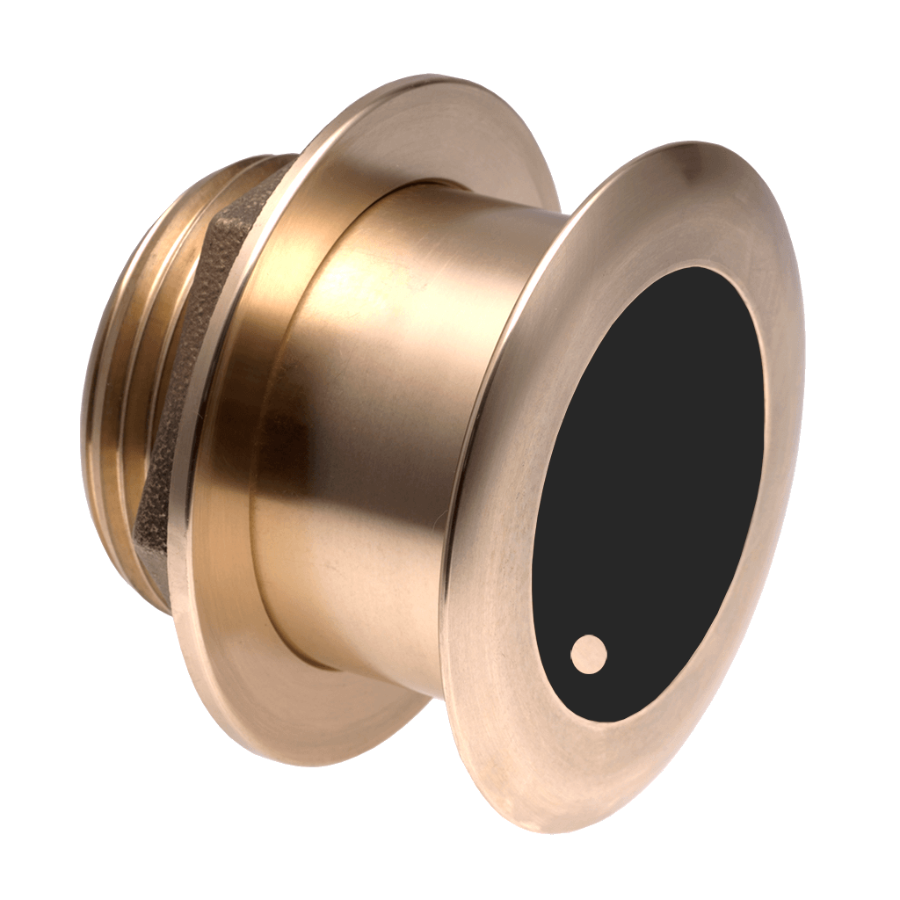

The Airmar B175MW Medium Ultra-Wide transducer is engineered to deliver exceptional sonar performance for serious anglers and marine professionals. Designed for vessels with a hull deadrise of 0° to 7°, this thru-hull transducer provides superior mid-depth target separation and extensive coverage under the boat. With its innovative medium-frequency range of 60-100 kHz and ultra-wide beamwidth spanning 57° to 73° port/starboard, this transducer ensures comprehensive scanning for pelagic species in the upper water column.

AIRMAR's proprietary Tilted Element™ technology enhances signal clarity and resolution, even at higher speeds, making it ideal for planing, displacement, and stepped hulls. The B175MW is built with a durable bronze housing and integrates seamlessly with various fishfinder systems, requiring a Mix-N-Match cable for compatibility with different marine electronics.

Advanced Technical Specifications for Marine Applications

• Power Rating: 1 kW
• Functionality: Depth and fast-response water temperature sensor
• Frequency Range: Medium frequency (60-100 kHz)
• Beamwidth: 57° to 73° (port/starboard) x 16° (average fore/aft)
• Maximum Depth: 400 m (1,300')
• Acoustic Window: Urethane for optimized signal transmission
• Cable Length: 9 m (30')
• Operating Temperature Range: -10°C to 40°C (14°F to 104°F)
• Connector Type: Mix-N-Match system for various plug compatibility

Rugged and Reliable Construction for Marine Environments

• Housing Material: Bronze, ideal for use on fiberglass and wooden hulls
• Mounting Style: Low-profile, thru-hull installation for minimal drag and optimal sonar performance
• Recommended Vessel Length: Up to 11 m (36')
• Hole Size: 95 mm (3-3/4")

Key Features and Benefits

• Fixed 0° tilt version for hulls with minimal deadrise
• Wide beamwidth enhances coverage and target separation
• Medium-frequency CHIRP technology for superior depth tracking
• Durable construction ensures longevity in harsh marine conditions
• Exclusive Xducer ID® technology for automatic transducer recognition

Available Variations and Connector Types

The Airmar B175MW is available with multiple connector options to ensure compatibility with leading marine electronics brands:

• B175C-0-MW-MM: Connector Airmar 12-Pin
• B175C-0-MW-0: Connector Bare Wire
• B175C-0-MW-10F: Connector Furuno 10-Pin
• B175C-0-MW-12F: Connector Furuno 12-Pin
• B175C-0-MW-12G: Connector Garmin 12-Pin
• B175C-0-MW-8G: Connector Garmin 8-Pin
• B175C-0-MW-14HB: Connector Humminbird 14-Pin
• B175C-0-MW-21HB: Connector Humminbird 21-Pin
• B175C-0-MW-HB: Connector Humminbird 9-Pin
• B175C-0-MW-11R: Connector Raymarine 11-Pin

The Airmar B175MW transducer is the ultimate solution for anglers seeking unparalleled sonar clarity and wide-area scanning in mid-depth waters. Whether installed on sport fishing boats or commercial vessels, this high-performance transducer ensures reliable and accurate marine navigation.
