High-Performance CHIRP Transducer for Superior Marine Detection

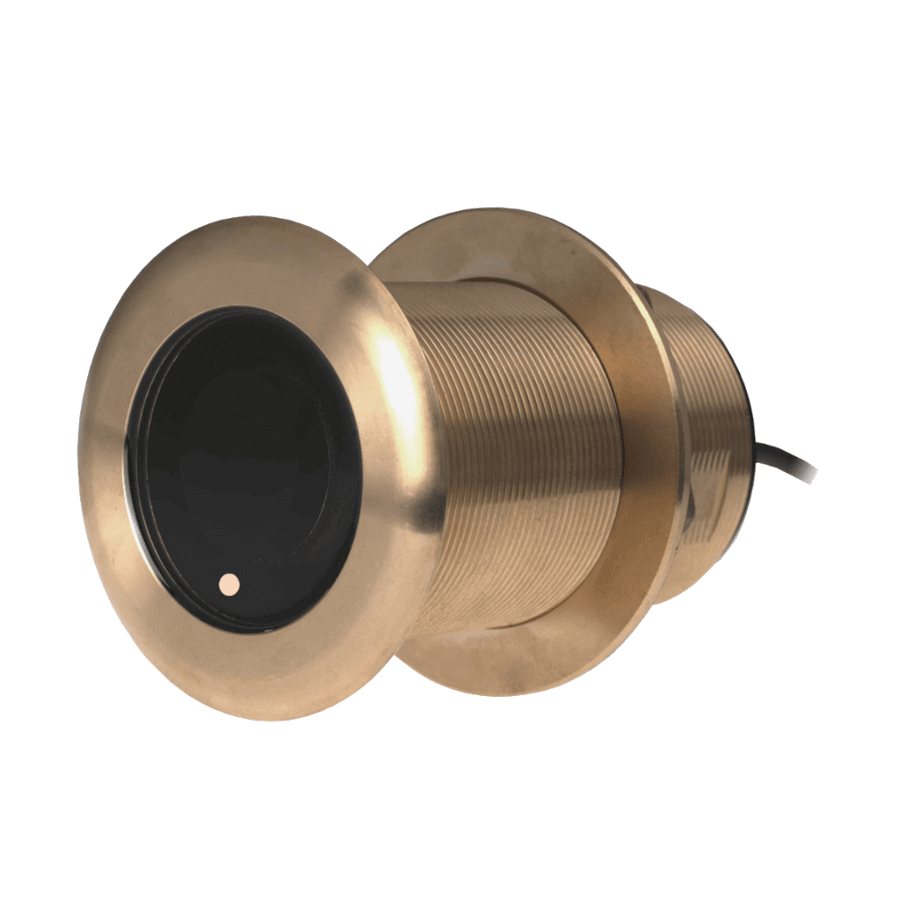

The Airmar B75C-12-H is a high CHIRP transducer designed to enhance marine navigation and fishing experiences with exceptional accuracy. Featuring a 12-degree tilted element, this thru-hull transducer is ideal for vessels with moderate deadrise hulls. With its broadband capabilities, it provides crystal-clear sonar imaging, ensuring precise detection of underwater structures, baitfish, and game fish.

This model operates within a 130 kHz to 210 kHz CHIRP frequency range, offering superior target separation and greater depth penetration. Airmar's exclusive Xducer ID® technology optimizes performance by automatically configuring the transducer to match the connected echosounder. Built with a durable bronze housing, the B75C-12-H withstands the harsh marine environment, making it a reliable choice for both recreational and commercial anglers.

Advanced Sonar Technology for Unmatched Clarity

Equipped with cutting-edge CHIRP technology, the B75C-12-H transducer delivers up to 80 kHz of bandwidth in a single installation. This wide frequency range covers the popular 200 kHz fishing frequency, as well as additional bandwidths to provide enhanced detection. The fast-response water-temperature sensor ensures real-time environmental data, improving fishing success.

Technical Specifications

• CHIRP Frequency Range: 130 kHz to 210 kHz
• Beamwidth: 15° to 9°
• Element Tilt: 12°
• Deadrise Compatibility: 8° to 15°
• Maximum Depth: 700 ft

Highlights

• High CHIRP transducer for superior underwater imaging
• Covers a wide frequency range for optimal target separation
• Exclusive Xducer ID® technology for automatic transducer configuration
• Fast-response water-temperature sensor for real-time data
• Bronze thru-hull construction for durability in harsh marine environments

Variations Available

The Airmar B75C-12-H transducer is available in multiple connector options to ensure compatibility with various marine electronics:

• B75C-12-H-MM – Connector Airmar 12-Pin
• B75C-12-H-0 – Connector Bare Wire
• B75C-12-H-12G – Connector Garmin 12-Pin
• B75C-12-H-8G – Connector Garmin 8-Pin
• B75C-12-H-14HB – Connector Humminbird 14-Pin
• B75C-12-H-HB – Connector Humminbird 9-Pin
• B75C-12-H-BL – Connector Lowrance 7-Pin
• B75C-12-H-11R – Connector Raymarine 11-Pin
• B75C-12-H-9N – Connector Simrad 9-Pin

This transducer is a must-have for serious anglers and marine professionals looking to gain a competitive advantage in sonar imaging.
