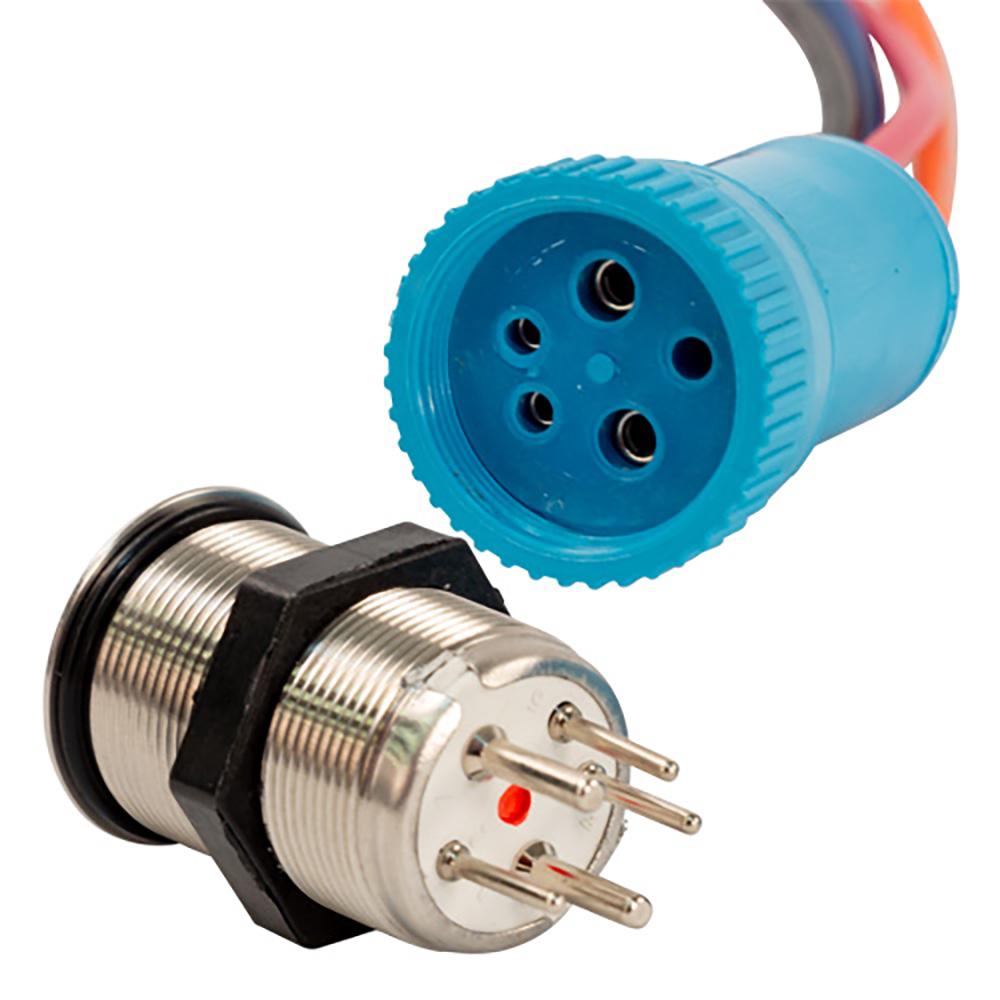

Bluewater - Push Button Switch - Nav/Anc Contact, Blue/Green/Red LED - 1' Lead

Enhance Your Dashboard with Modern Elegance

Introducing the Bluewater 22mm Push Button Switch – the perfect blend of functionality and style for your marine dashboard. This stainless-steel plated metal button is designed to bring a sleek, modern touch to any vessel, making it an essential addition for marine enthusiasts. With its versatile Nav/Anc contact and vibrant LED indicators, this switch ensures clear visibility and ease of use, even in the most challenging conditions.

Ultimate Durability and Performance

Engineered for the demanding marine environment, the Bluewater Push Button Switch boasts a waterproof rating of IP69K, ensuring it can withstand exposure to water and harsh weather. The robust stainless-steel construction guarantees longevity, while the integrated gasket provides additional protection against the elements. At night, the switch is backlit with a blue LED light for optimal visibility, which changes to red when the function is activated, leaving no doubt about its status.

Key Features

• Waterproof Rating: IP69K for superior protection against water and dust.
• LED Indicators: Blue for visibility at night, changing to red when the function is on.
• Durable Construction: Made from high-quality stainless steel for maximum durability.
• Easy Installation: Simple setup with clear, color-coded contacts.
• Versatile Functionality: Nav/Anc contact for diverse marine applications.

Technical Specifications

• Function: Nav/Anc
• LED Colors: Off/1st On: Blue/Green; 2nd On: Red
• Switch Rating: 15A / 12-24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Compact and Efficient Design

Product Dimensions

• Size: 22mm diameter
• Lead Length: 1 ft

Built for Marine Excellence

Premium Finishes

• Stainless Steel Body: Provides a sleek, modern look while ensuring durability and resistance to corrosion.
• IP69K Rating: Ensures the switch remains waterproof and dustproof, suitable for all marine environments.

Installation Made Simple

Installing the Bluewater Push Button Switch is straightforward:

1. Drill a 22mm Hole: Suitable for materials up to 6mm thick.
2. Connect Contacts: Attach the 3 color-coded contacts for the button and the 2 contacts for the LED.

Customizable Options for Every Need

Variations List

• 22mm Model: Standard size, perfect for most marine applications.
• 19mm Model: Slightly smaller option for more compact installations.

Experience the Difference with Bluewater

Upgrade your marine dashboard with the Bluewater 22mm Push Button Switch. Designed for both functionality and style, this switch offers unparalleled performance and durability in any marine environment. Whether you’re navigating through rough waters or docked at the marina, this switch ensures your boat’s controls are always clear and easy to use. Illuminate your adventures with the trusted reliability of Bluewater.
