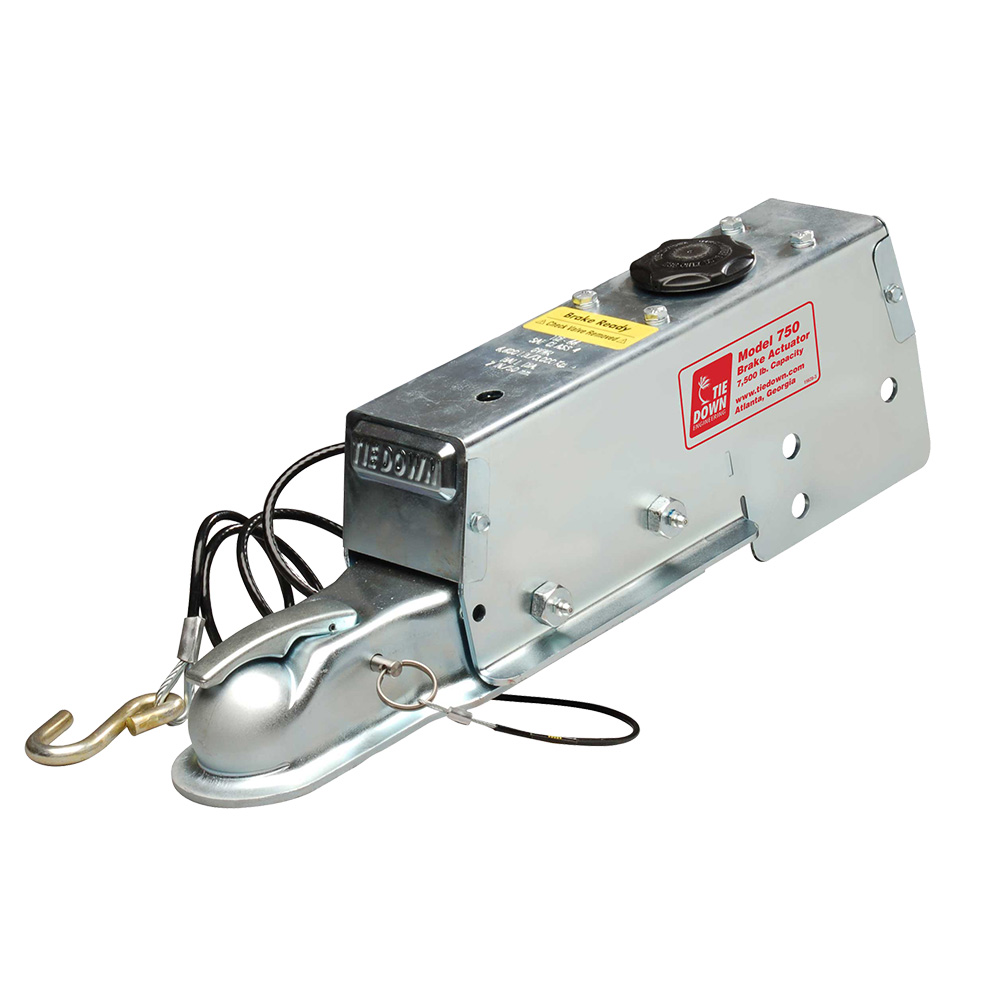

Load Rite - Disc Brake Actuator Tie Down Engineering Model - 7,500 lbs

Precision Braking for Heavy-Duty Towing

The Load Rite 7,500lb Disc Brake Actuator - Tie Down Engineering Model offers superior braking performance for seamless and safe towing. This advanced actuator synchronizes your trailer brakes with your tow vehicle, ensuring a smooth and controlled towing experience even with heavy loads.

The Model 750E operates using a surge or push mechanism, which activates the trailer brakes automatically when the trailer moves toward the tow vehicle. This telescoping action applies force to the master cylinder, generating hydraulic pressure to engage the brakes. The built-in dampening shock absorber minimizes the telescoping shock against the hitch ball, providing enhanced towing stability. This actuator is designed to fit tongue sizes of 3"x 3”, 3"x 4", and 3"x 5”, making it versatile and ready for installation.

Key Features

• High Capacity: Supports up to 7,500 lbs. of gross load and a maximum tongue load of 750 lbs.
• Compatibility: Fits a standard 2” hitch ball.
• Disc Brake Use: Specifically designed for use with disc brakes, ensuring reliable stopping power.
• Pre-Assembled: The actuator comes fully assembled and ready to bolt into place.

Technical Specifications

• Maximum Actuator Capacity:
• Gross Load: 7,500 lbs.
• Maximum Tongue Load: 750 lbs.

Product Dimensions

• Tongue Size Compatibility: Fits tongue sizes of 3"x 3”, 3"x 4”, and 3"x 5”.

Features & Benefits

• Dampening Shock Absorber: Reduces impact and stress on the hitch ball for smoother towing.
• Hydraulic Pressure System: Provides consistent and powerful braking force.
• Durable Construction: Built to withstand the rigors of heavy towing, ensuring long-lasting performance.
• Easy Installation: The actuator is pre-assembled and ready to bolt into place, saving time and effort.

Important Notes

• The actual in-service rating is limited to the lowest-rated component, whether it is the ball and hitch, the tow vehicle, or the trailer manufacturer’s G.V.W.R. shown on the certification label.
• Always comply with state regulations regarding trailer brakes and consult your tow vehicle's owner’s manual for towing capacity and recommendations before installing brakes or this actuator.

Safety and Compliance

Ensuring your towing setup complies with local regulations and safety standards is crucial for a safe towing experience. The Load Rite 7,500lb Disc Brake Actuator is designed to enhance both safety and performance, providing you with peace of mind during your towing operations.
