High-Performance Dual-Speed Radar System

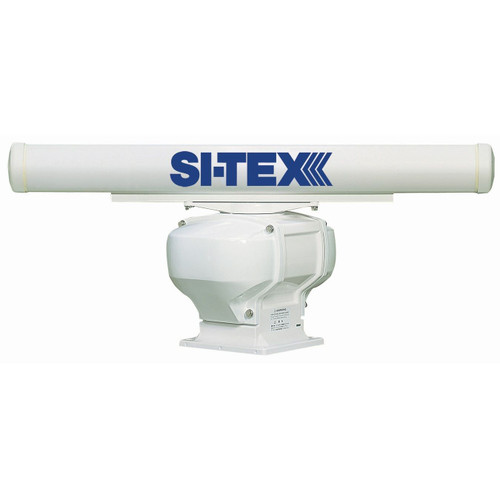

The Si-Tex T2040A-3 is a powerful 10.4" color radar designed for enhanced marine navigation, featuring a 4kW open array with a 3.5' antenna for superior target detection. Ideal for high-speed and river operations, this radar provides real-time situational awareness with its dual-speed antenna that operates at 48 RPM for quick updates. The split-screen functionality allows simultaneous viewing of both long-range and short-range targets, ensuring comprehensive coverage in varying marine conditions.

Cutting-Edge Target Tracking & Interference Rejection

Equipped with a True-Trail Function, the T2040A-3 accurately identifies moving targets, improving tracking in busy waterways. Advanced features such as Interference Rejection, Target Expansion, Parallel Index, and True/Relative Bearing enhance accuracy and clarity, minimizing false readings. The integrated AIS Interface is capable of tracking up to 200 targets, with an optional 50-target Automatic Tracking Aid (ATA) available for added situational awareness.

Precision Engineering & Technical Excellence

The radar system operates at 9410 MHz ± 30MHz, delivering 4kW peak power output for superior range detection. A beam width of 2.5° horizontal and 22° vertical ensures a focused and detailed display of maritime surroundings. The system features multiple pulse widths (0.08, 0.15, 0.3, 0.5, and 1 µs) to optimize target acquisition under different conditions.

High-Resolution Color Display for Clear Visualization

The 10.4" TFT Color LCD screen, with a resolution of 480 x 640, provides crisp and detailed imaging for clear navigation. The display supports multiple orientation modes, including Heads Up, North Up, Course Up, and Waypoint Up, allowing for flexible customization based on the vessel's needs.

Durable & Efficient Design

Designed for versatility, the T2040A-3 operates on a DC power input range of 10.8 - 31.2V, consuming 80 watts or less, ensuring energy efficiency for extended marine operations. The radar unit's robust construction and compact dimensions (12 19/32" x 12 19/32" x 5 39/64") make it an excellent fit for various vessel types.

Key Features

• Dual-speed antenna (24 or 48 RPM) for optimized high-speed navigation
• Split-screen functionality for viewing short and long-range targets simultaneously
• True-Trail tracking for identifying moving targets
• Advanced interference rejection and target expansion for improved clarity
• Standard AIS Interface for tracking up to 200 targets
• Optional 50-target ATA for enhanced automatic tracking
• High-resolution 10.4" color LCD display with multiple orientation modes
• Wide input voltage range (10.8 - 31.2V DC) with low power consumption

Included Components

• MRD-104 Display
• RB716A - Pedestal 4kW
• RW701A-03 - 3.5' Antenna
• 242J159098A – 10M Cable
• DC Power Cable
• Quick Reference Guide & Operation Manual

The Si-Tex T2040A-3 is the perfect choice for mariners seeking a high-performance radar system with precision tracking, enhanced safety, and superior display technology for effective navigation in all marine environments.
