Versatile and Secure Battery Management

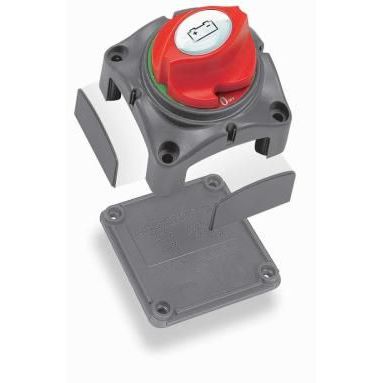

The BEP Marine 701 Mini Battery Switch is engineered for reliable and safe power control in marine applications. Its innovative contour lock system allows for flexible installation—whether as a stand-alone unit or locked together with other switches for a streamlined power management setup. The switch’s control knob remains secured in the ON or OFF positions, enhancing safety by preventing accidental removal. For added flexibility, the knob can be detached when turned 45° counterclockwise.

Designed to accommodate a range of battery configurations, this switch features removable side plates on four sides, allowing access for up to 1/0 cables. A rear cover insulates the terminals, ensuring compliance with ABYC standards by protecting against short circuits. The BEP 701 Mini Battery Switch is suitable for both surface and recessed mounting, making it a versatile addition to any marine electrical system.

Technical Specifications

• Continuous Rating: 275 Amps DC
• Intermittent Rating: 455 Amps DC
• Cranking Rating: 1250 Amps DC
• Voltage Rating: 48 Volts DC
• Operation: On/Off
• Mounting Options: Surface or recessed
• Ignition Protection: Yes
• Termination Stud Size: 2 x 10 mm (3/8 inch)
• Material: Tin-plated copper studs and nuts

Compact and Durable Design

• Dimensions: 69 x 69 x 75 mm (2.75 x 2.75 x 3 inches)
• Rugged Construction: Built for harsh marine environments with corrosion-resistant materials

Key Features

• Contour lock system for standalone or interconnected use
• Secure control knob prevents unintended removal
• Flexible mounting options for easy installation
• Meets ABYC safety standards with insulated rear terminals
• Accommodates large battery cables with removable side plates

This switch is an essential component for any marine power system, providing reliability, safety, and adaptability in demanding conditions.
