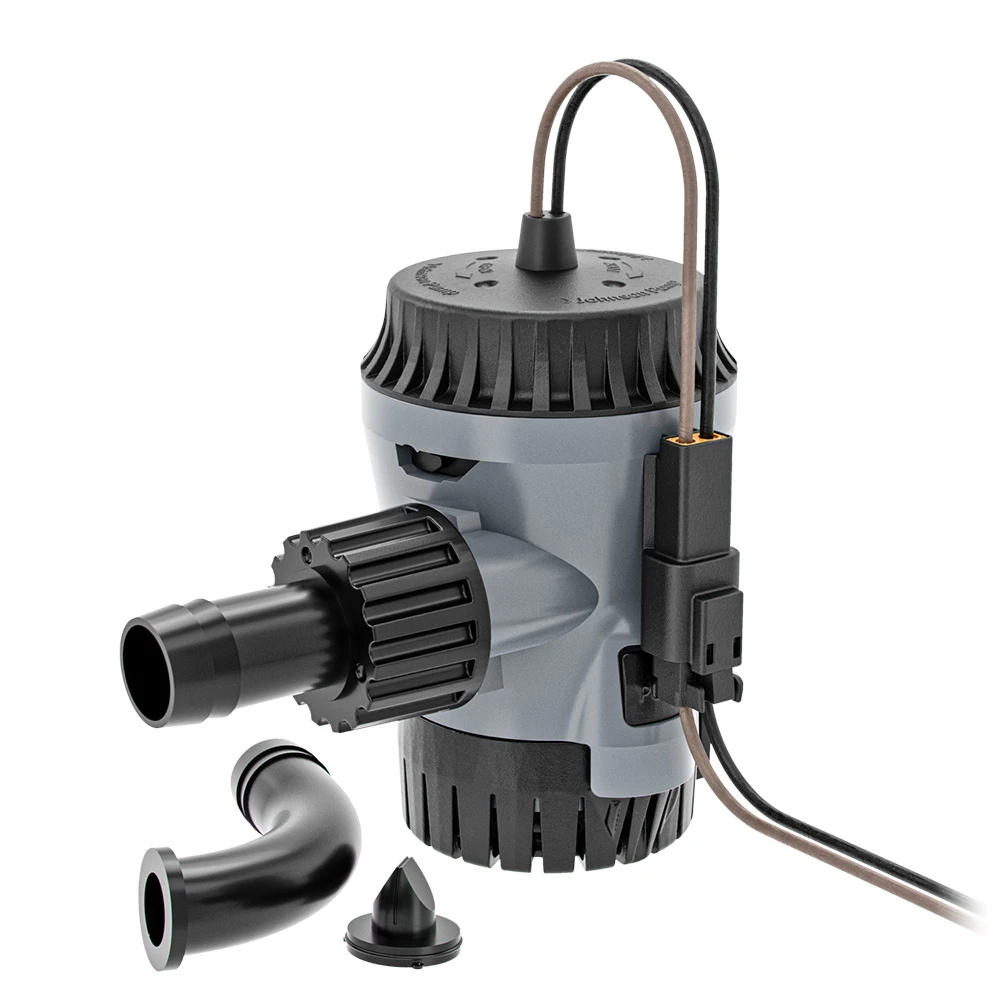

Johnson Pump - Aqua Void Automatic Bilge Pump - 12V

Experience Hassle-Free Boating with the Aqua Void Bilge Pump

Introducing the Johnson Pump Aqua Void Automatic 500 GPH Bilge Pump, the ultimate solution for efficient and reliable bilge pumping. Featuring an industry-first quick-change motor connection and a reinforced click-in basket, this bilge pump is designed to simplify cleaning and installation while providing exceptional performance. The enhanced motor ensures reliability under any condition, making your boating experience worry-free.

Innovative Quick-Change Motor Connection

The Aqua Void Automatic Bilge Pump sets a new standard with its groundbreaking quick-change motor connection. This feature allows for effortless cartridge motor changes or capacity upgrades, providing unmatched convenience and efficiency.

Enhanced Efficiency and Higher Flow Rate

Powered by an advanced motor and high-flow impeller, the Aqua Void achieves increased efficiency and a higher flow rate, all while conserving energy. This pump is perfect for both small and medium-sized boats, ensuring your bilge remains dry and your vessel stays safe.

Robust and Reliable Construction

Johnson Pump Marine is known for its industry-leading reliability, and the Aqua Void lives up to this reputation. With its durable thermoplastic housing, water-cooled motor, and 316 stainless steel shaft, this pump is built to withstand the toughest marine conditions.

Key Features

• High-Flow Impeller Design: Ensures efficient water removal.
• Quick-Change Motor Connection: Allows for easy motor cartridge changes without tools.
• Switchless Automatic Operation: Monitors water presence with low-amp resistance.
• Durable Housing: Made from robust thermoplastic for long-lasting performance.
• Compact Profile: Fits easily in tight bilge spaces.
• Versatile Discharge Ports: Includes straight or 90-degree dura port discharge options.
• Water-Cooled Motor: Features a 316 stainless steel shaft and permanently lubricated double bearings.
• Reinforced Click-In Basket: Simplifies installation, cleaning, and inspection.

Benefits

• Heightened Efficiency: Increased flow rate for rapid bilge water removal.
• Easy Maintenance: Quick and hassle-free cartridge motor changes or upgrades.
• Automatic Monitoring: Detects water presence through low-amp draw impeller spin.
• Interchangeable Cartridges: Compatible with various motor cartridge sizes for flexible use.
• Space-Saving Design: Compact size fits easily in small spaces.
• Multi-Directional Hose Routing: Reduces stress cracking and minimizes water backflow.
• Corrosion-Resistant: Extended life with robust construction.

Competitive Advantages

• Most Efficient in Its Category: Delivers the highest flow rate for its GPH capacity.
• Unique Cartridge Motor: The only pump with an included harness connection, eliminating the need for wire cutting and splicing.
• Long Service Life: Offers 100 days of service before critical battery drawdown.
• Ease of Installation and Maintenance: Simplifies setup and upkeep for all users.

Specifications

• Pump Capacity: 500 GPH
• Straight Capacity (12V): 600 GPH (38 I/min)
• Voltage: 12V
• Current Draw: 2.7A
• Fuse Size: 3.5A
• Hose Connection: 3/4 inch
• Wire Size: 16 GA, TINNED
• Weight: 11.2 oz (0.32 kg)
• Body Material: ABS
• Dura Port Material: PA66/GF - Nylon
• Shaft Material: 316 Stainless Steel
• Shaft Seal Material: Nitrile Rubber
• Motor Cartridge Material: PC-ABS
• Dimensions (W x H x L): 2.75 x 4.69 x 5.24 inches (70 x 119 x 133 mm)

Variants List

• 500 GPH Model: Ideal for standard bilge pumping needs with efficient water removal.
• 800 GPH Model: Provides higher capacity for more demanding applications, ensuring rapid water removal.

Why Choose the Johnson Pump Aqua Void Automatic Bilge Pump?

The Johnson Pump Aqua Void Automatic Bilge Pump offers unparalleled performance, convenience, and reliability. Its innovative features, robust construction, and high efficiency make it the perfect choice for ensuring a dry and safe bilge area. Upgrade your bilge pumping system today with the Aqua Void Bilge Pump and enjoy worry-free boating.

Enhance your boating experience with the Johnson Pump Aqua Void Automatic Bilge Pump. Experience reliable performance and effortless maintenance on the water.
