Advanced Marine Radar with True-Color Display

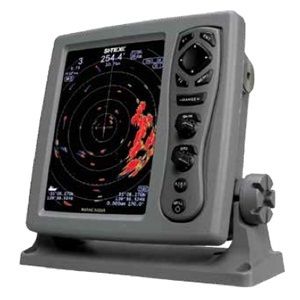

The Si-Tex T940A-4 8.4” Color Radar is a high-performance navigation tool designed for professional and recreational marine use. Equipped with an 8.4-inch color LCD display, this radar delivers real-time target tracking with true-color echoes, ensuring superior clarity and target discrimination. Whether navigating in open waters or congested harbors, the T940A-4 provides smooth movement tracking, a dual-range display, and automatic hands-off tuning, making it a reliable choice for any vessel. Its sleek, waterproof design (IPX5-rated) allows for flexible mounting options, ensuring durability in harsh marine environments.

High-Precision Target Tracking and Safety Features

This radar system includes two-speed antenna rotation (24/48 RPM), ideal for tracking fast-moving, close-range targets. The True Trail function distinguishes stationary objects from moving vessels, enhancing situational awareness. The Warning Zone feature alerts operators to potential hazards, while the optional Automatic Tracking Aid (ATA) can track up to 50 user-designated targets, providing real-time distance, speed, and course data. The optional AIS interface displays up to 100 vessel details, improving collision avoidance and navigation safety.

Technical Specifications

• Power Output: 4kW
• Frequency: 9410 ± 30MHz
• Beam Width: 1.8° Horizontal, 22° Vertical
• Antenna Rotation: 24 or 48 RPM (48 RPM requires 24V DC)
• Pulse Width: 0.08, 0.15, 0.3, 0.5, 1 µsec
• Range Accuracy: Better than 8m
• Minimum Detecting Distance: 25m
• IF Frequency: 60MHz

Display and Controls

• Screen Size/Type: 8.4” TFT Color LCD
• Resolution: 480 x 640 pixels
• Display Modes: Heads Up, North Up*, Course Up*, WPT Up**, True Motion*
• Power Supply: 10.8 - 31.2V DC
• Power Consumption: 70 watts or less
• User Interface: Intuitive keypad, programmable function keys, rotary knobs for quick access to Gain and STC

(*Requires external heading, speed, or position signal input; **Requires waypoint data input)

Product Dimensions

• Display Unit: 9.5” W x 9.5” H x 4.4” D

Highlights

• True-color radar display for enhanced signal clarity
• Dual-range function for simultaneous long and short-range monitoring
• Hyper-Digital Processing™ (HDP) Technology for noise reduction and target enhancement
• Split-screen capability for radar and optional CCD camera input
• Waterproof IPX5-rated housing for durability in marine environments
• RGB output for connection to external monitors

Included in the Box

• MRD-103 Display
• RB716A Pedestal (4kW)
• RW701A-04 4.5' Open Array Antenna
• 10M Cable
• DC Power Cable
• CCD Camera Cable
• Operation Manual and Quick Reference Guide

The Si-Tex T940A-4 is an advanced radar solution for captains seeking precision, reliability, and safety at sea. Designed for vessels of all sizes, this system enhances navigation, target tracking, and marine awareness, making it an essential tool for any maritime professional.
