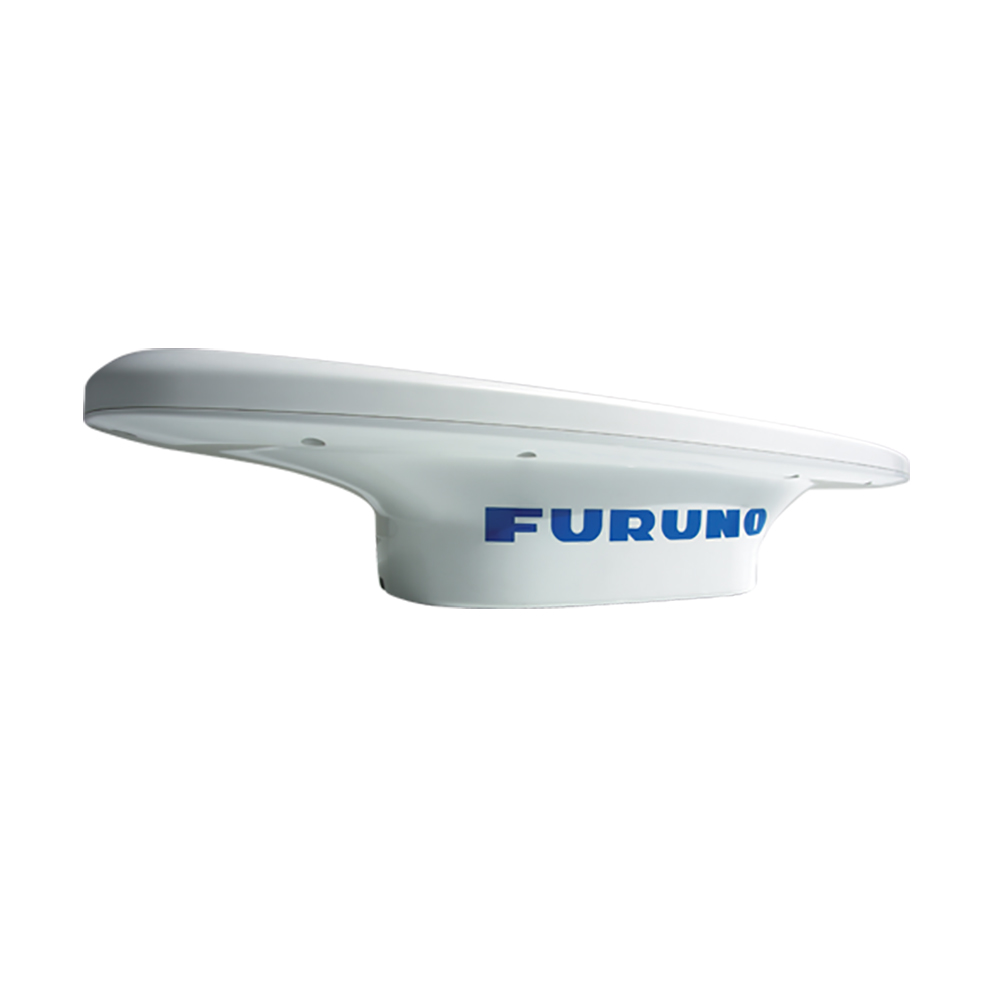

Discover the Precision: SC33 Compact Dome Satellite Compass

An All-in-One Marvel for Your Navigational Needs

Introducing the SC33 Satellite Compass - a blend of style, speed, and accuracy. Ideal for a plethora of applications on any vessel, this unit isn't just your ordinary compass. It integrates a compact GNSS antenna with an in-built processor, offering precise heading, roll & pitch data, heaving info, GPS position, SOG (Speed Over Ground), COG (Course Over Ground), and ROT (Rate Of Turn) details.

Unveiling the Tech Beneath the Sleek Exterior

The SC33's uniqueness is its two-antenna system, working harmoniously with a 3-axis gyro and acceleration sensors. This collaboration ensures rapid response capability. With the power of advanced digital signal processing, it calculates an accurate heading based on the sensor data. It comes with a standard NMEA2000 interface for effortless installation. For those who prefer conventional NMEA0183, AD10, and contact closure, an optional interface unit IF-NMEASC is available.

Experience heightened performance with its advanced parallel signal processing and GNSS antenna. Maneuver through challenging spaces effortlessly, thanks to its Micro-C pigtail NMEA2000 cable.

Key Takeaways from the SC33's Feature Set

• Two Antenna Satellite Compass with a Rate Sensor System.
• Enhanced resistance to multi-path, shock, and vibration.
• Faster Time to First Fix (TTFF) = 60 seconds (typical).
• Superior accuracy: ±0.4° RMS for Heading/Roll/Pitch.
• Position precision: 5.0M with GPS and 3.0M with GPS + SBAS.
• Pitch, Roll, and Heave Compensation via Integrated Rate Sensors.
• Convenient connection with a Pigtail cable having an NMEA2000 connector.
• Advanced tri-axis speed and "Heartbeat" PGN output.
