Advanced High-Wide CHIRP Technology for Superior Marine Coverage

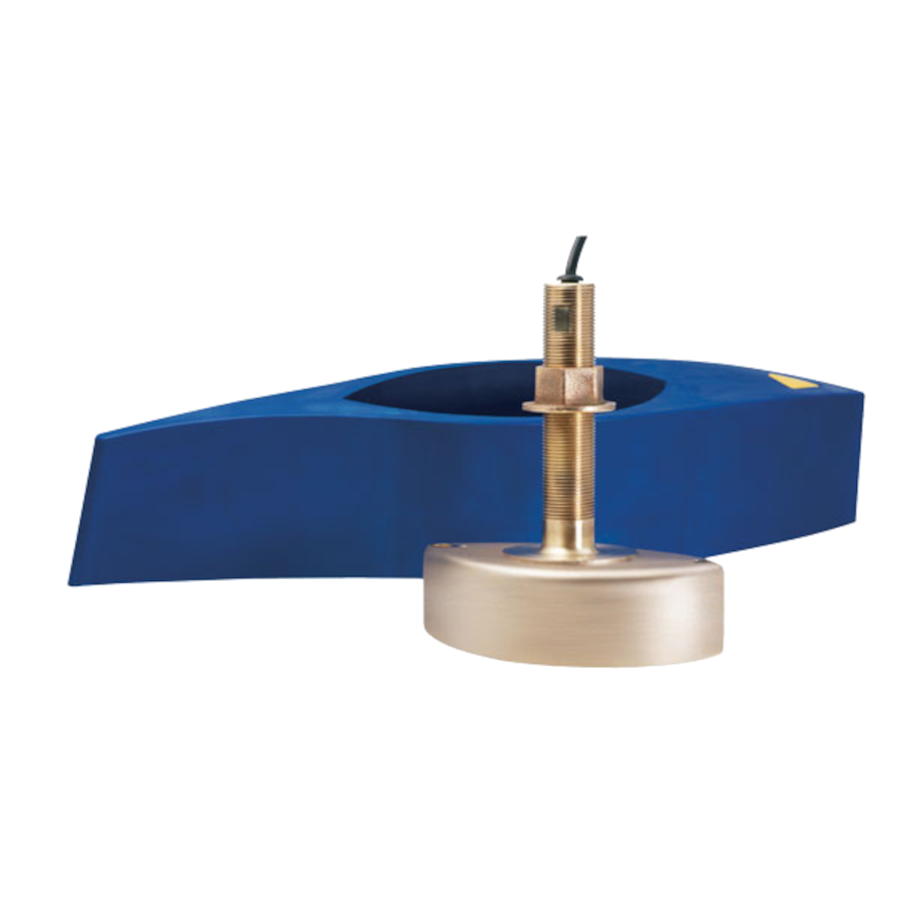

The Airmar B285C-HW Thru-Hull Transducer is designed for serious anglers and marine professionals seeking exceptional underwater imaging. Featuring a high-wide CHIRP frequency range of 150-250 kHz, this transducer provides significantly improved target separation and enhanced fish detection. The constant 25° beamwidth ensures expansive coverage beneath the boat, doubling the area compared to standard high-frequency CHIRP transducers. This wide beam capability is particularly advantageous for locating fish in the upper water column and improving bottom structure clarity.

Equipped with Airmar’s exclusive Xducer ID® technology, the B285C-HW optimizes performance by automatically calibrating with compatible echosounders, ensuring accurate and reliable data transmission. The solid bronze housing enhances durability, making it an ideal choice for demanding marine environments.

Technical Specifications

• CHIRP Frequency Range: 150-250 kHz
• Beamwidth: Constant 25°
• Maximum Depth Capability: 500 ft
• Construction: Robust bronze housing for long-term durability
• Functionality: Depth and temperature measurement

Product Dimensions

• Designed for thru-hull mounting, offering a secure and hydrodynamic installation

Highlights

• Wide beam CHIRP technology provides twice the coverage compared to standard high-frequency transducers
• Delivers superior fish detection and clear return images on the display
• Maintains a constant beamwidth across the entire frequency band for consistent performance
• Durable bronze housing ensures reliability in marine environments
• Integrated Xducer ID® technology for seamless echosounder compatibility

Variations List

The Airmar B285C-HW is available in multiple connector variations to ensure compatibility with a range of marine electronics:

• B285C-HW-MM: Airmar 12-Pin Connector
• B285C-HW-0: Bare Wire Connector
• B285C-HW-12G: Garmin 12-Pin Connector
• B285C-HW-8G: Garmin 8-Pin Connector
• B285C-HW-14HB: Humminbird 14-Pin Connector
• B285C-HW-HB: Humminbird 9-Pin Connector
• B285C-HW-BL: Lowrance 7-Pin Connector
• B285C-HW-11R: Raymarine 11-Pin Connector
• B285C-HW-9N: Simrad 9-Pin Connector

This transducer is engineered for enhanced sonar performance, making it an essential tool for anglers and marine enthusiasts who require high-definition imaging and broad underwater coverage.
